08/2012
5-18
WorkCentre 5021/5019
PL 7.1
Initial Issue
Parts List

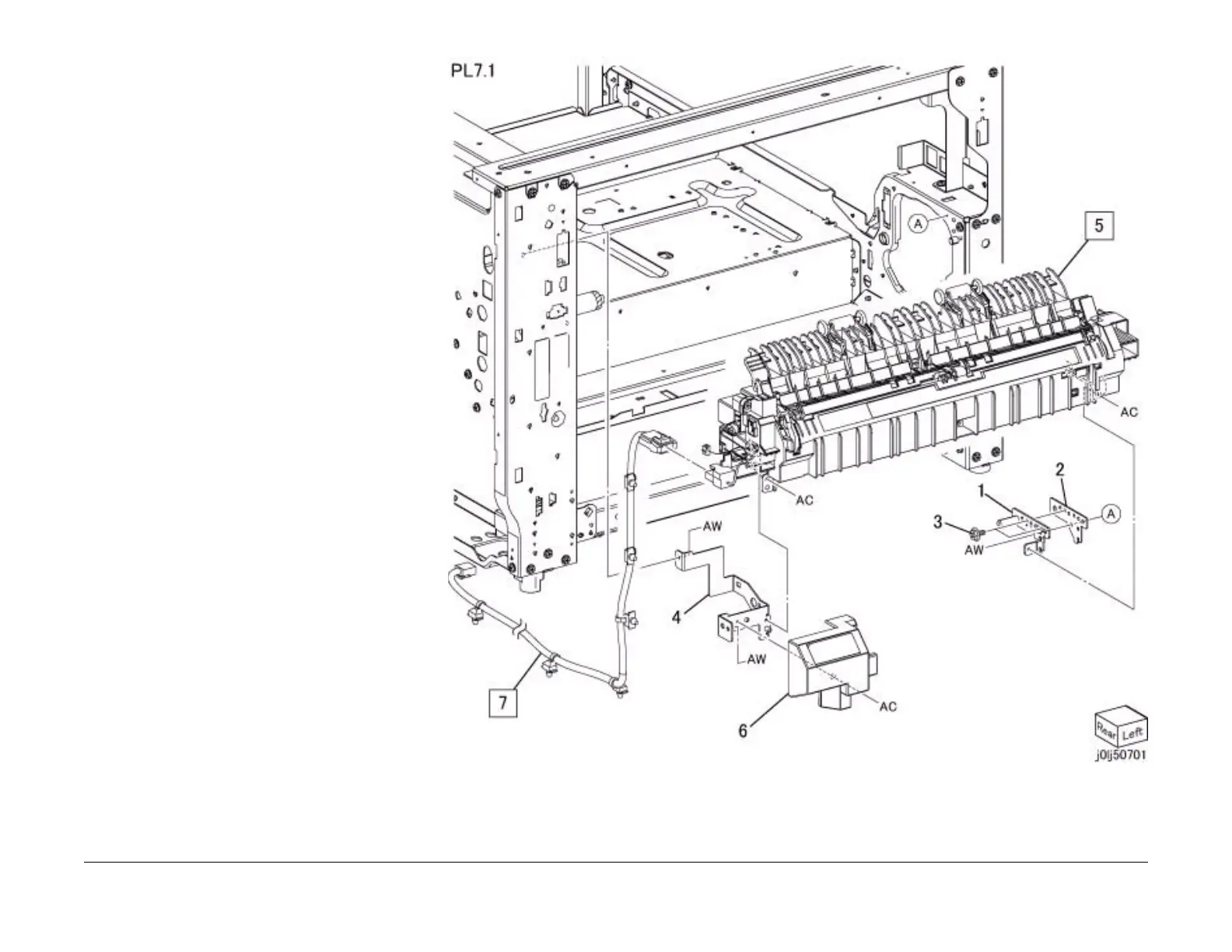

PL 7.1 Fusing Unit
Item Parts No Description A.C.
1 – Fusing Unit Stud Plate 43B1
2 – Adjust Plate 43B2
3 – Stud Screw 43B3
4 – Fusing Unit Rear Bracket43B4
5 126K 30553 220V-Fusing Unit (REP 7.1.1, REP
99.1.1)43AA
– 126K 31730 120V-Fusing Unit (REP 7.1.1, REP
99.1.1)43AA
6 848E 83410 Connector Cover 43B5
7 952K 01220 220V-Fusing Unit Wire Harness
(REP 99.1.1)43B6
– 962K 69060 120V-Fusing Unit Wire Harness
(REP 99.1.1)43B6
