Xerox WorkCentre 5021 Service Documentation

08/2012
5-57
WorkCentre 5021/5019
PL 56.13
Parts List
Initial Issue

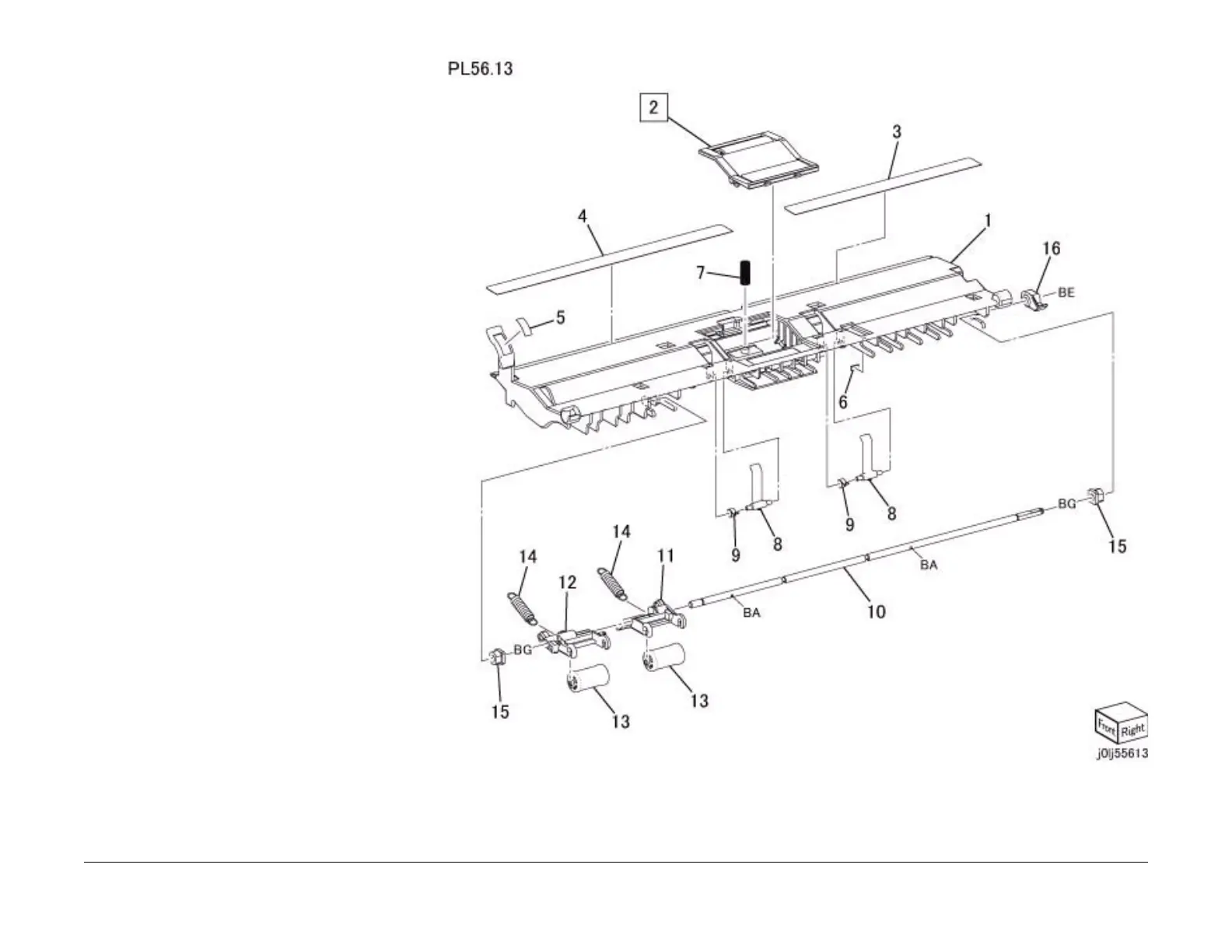

PL 56.13 Retard Chute
Item Parts No Description A.C.
1 054E 50170 Retard Chute 22P1
2 848K 68730 DADF Retard Pad (REP 56.13.1)
22P2
3 035K 84270 Rear Seal 22P3
4 035K 84260 Front Seal 22P4
5 – Label 22P5
6 – Pad 22P6
7 899E 01520 Spring 22P7
8 050E 28270 Set Gate 22P8
9 899E 01510 Spring 22P9
10 – Shaft 22PB
11 019E 84131 Rear Holder 22PC
12 019E 84120 Front Holder 22PD
13 059E 08661 Pinch Roll 22PE
14 899E 01531 Spring 22PF
15 413W 11460 Bearing 22PG
16 012E 18280 Link 22PH
