08/2012
5-55
WorkCentre 5021/5019
PL 56.11
Parts List
Initial Issue

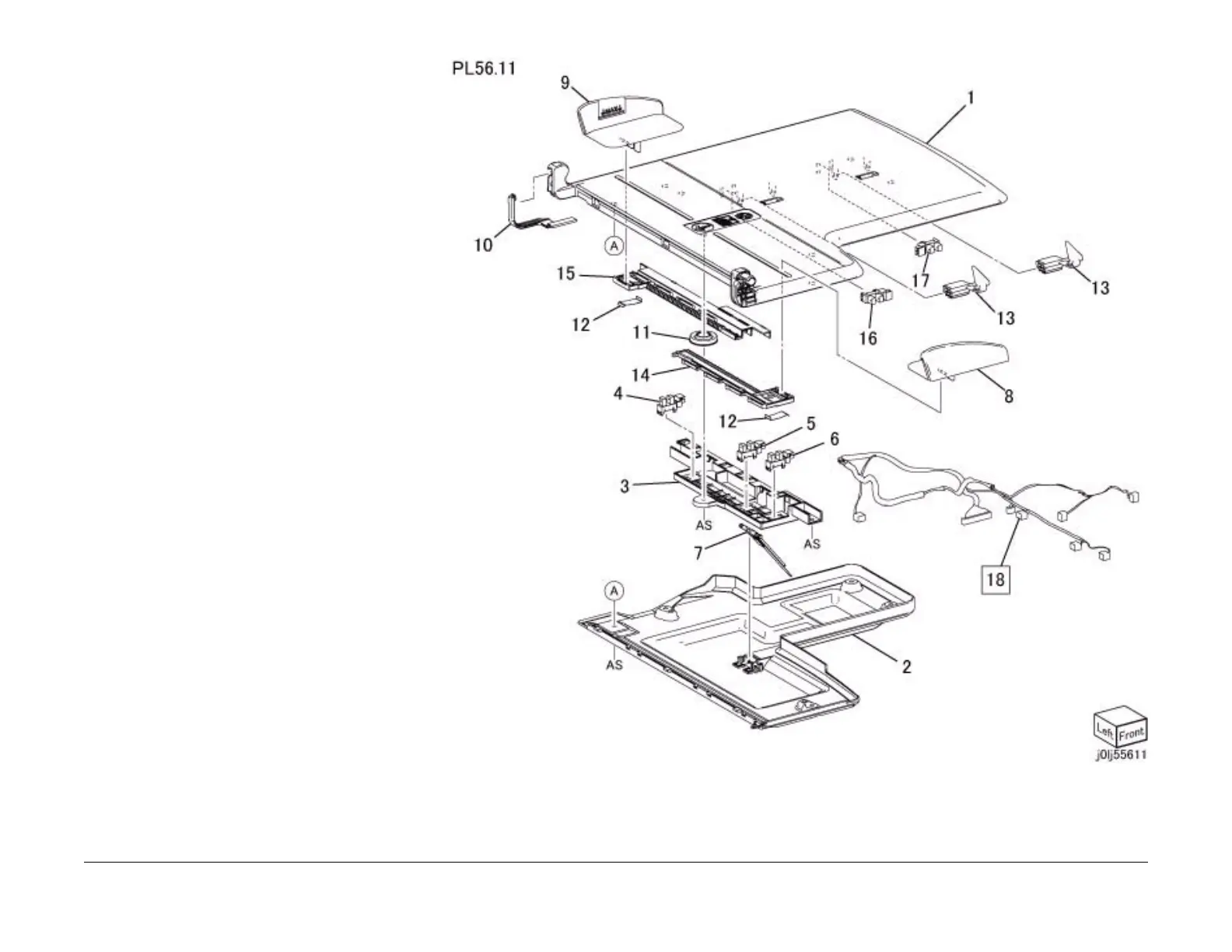

PL 56.11 Document Tray
Item Parts No Description A.C.
1 – Upper Tray 22M1
2 – Tray Cover 22M2
3 868E 80501 Sensor Bracket 22M3
4 930W 00121 DADF Tray Set Guide Sensor 1
22M4
5 930W 00121 DADF Tray Set Guide Sensor 2
22M5
6 930W 00121 DADF Tray Set Guide Sensor 3
22M6
7 032K 05861 Scatter Guide 22M7
8 038E 42770 Front Side Guide 22M8
9 038E 42750 Rear Side Guide 22M9
10 848E 88020 Harness Cover 22MB
11 807E 30471 Pinion Gear 22MC
12 809E 51860 Rack Spring 22MD
13 120E 34210 Actuator 22ME
14 807E 37830 Rack Gear (Front) 22MF
15 807E 40750 Rack Gear (Rear) 22MG
16 930W 00121 Document Tray Size Sensor 1
22MH
17 930W 00121 Document Tray Size Sensor 222MJ
18 952K 03520 Tray Wire Harness(REP 99.1.1)
22MK
To Next Page
