08/2012
4-70
WorkCentre 5021/5019
REP 56.3.2, REP 56.5.1
Initial Issue
Repairs and Adjustments
Figure 2 j0lj45658
Replacement
1. To install, carry out the removal steps in reverse order.
REP 56.5.1 DADF Feed/Nudger Roll
Parts List on PL 56.5
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
NOTE: The DADF Feed Roll, the DADF Nudger Roll, and the DADF Retard Pad must be
replaced at the same time.
1. Open the Upper Feeder.
2. Remove the Upper Feeder Chute. (Figure 1)
(1) Remove the screw (x2).
(2) Remove the Upper Feeder Chute.

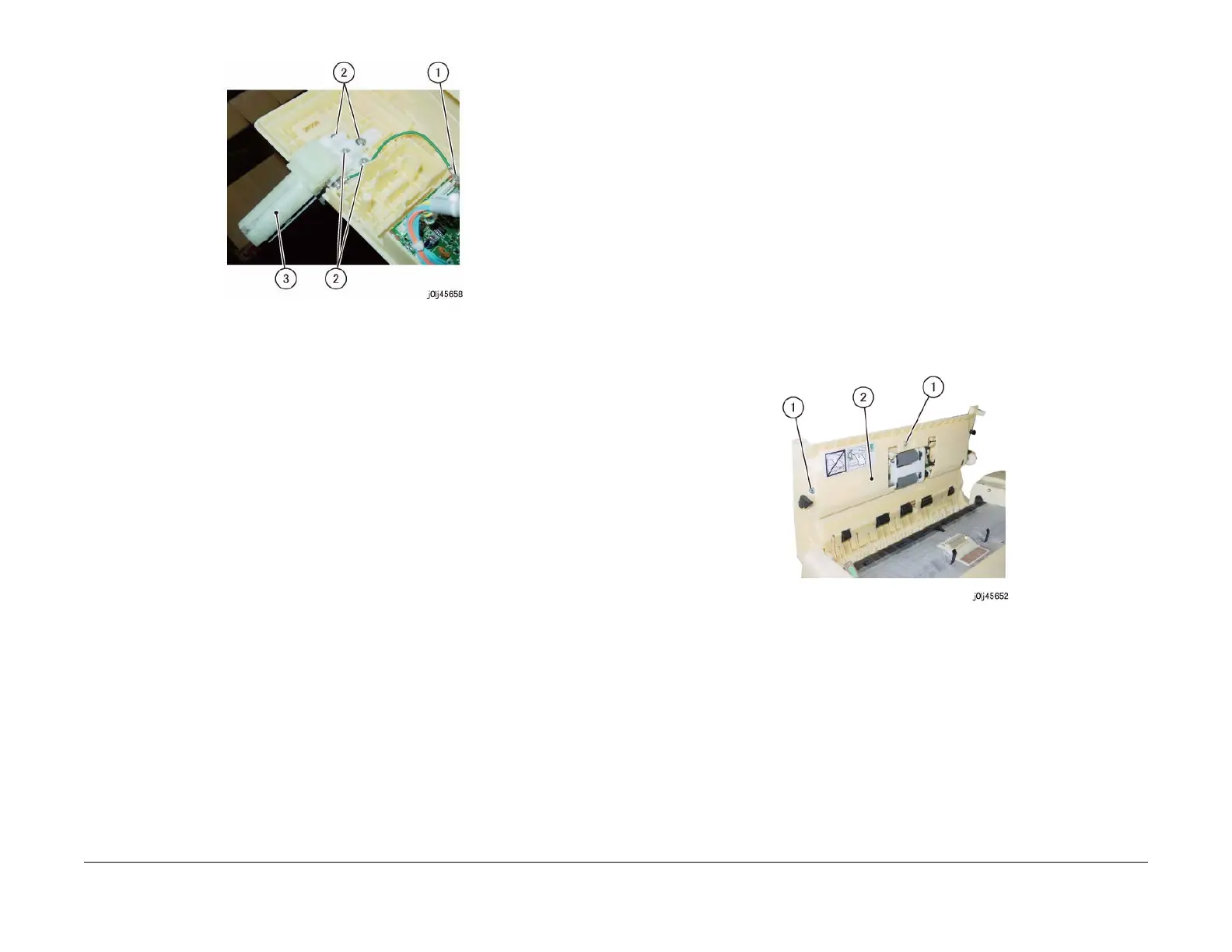

Figure 1 j0lj45652
3. Remove the Feed Roll Nudger Roll Assembly. (Figure 2)
(1) Remove the KL-Clip.
(2) Move the bearing in the direction of the arrow.
(3) Remove the Feed Roll Nudger Roll Assembly.
To Next Page
