Xerox WorkCentre 5021 Service Documentation

08/2012
5-26
WorkCentre 5021/5019
PL 10.3
Initial Issue
Parts List

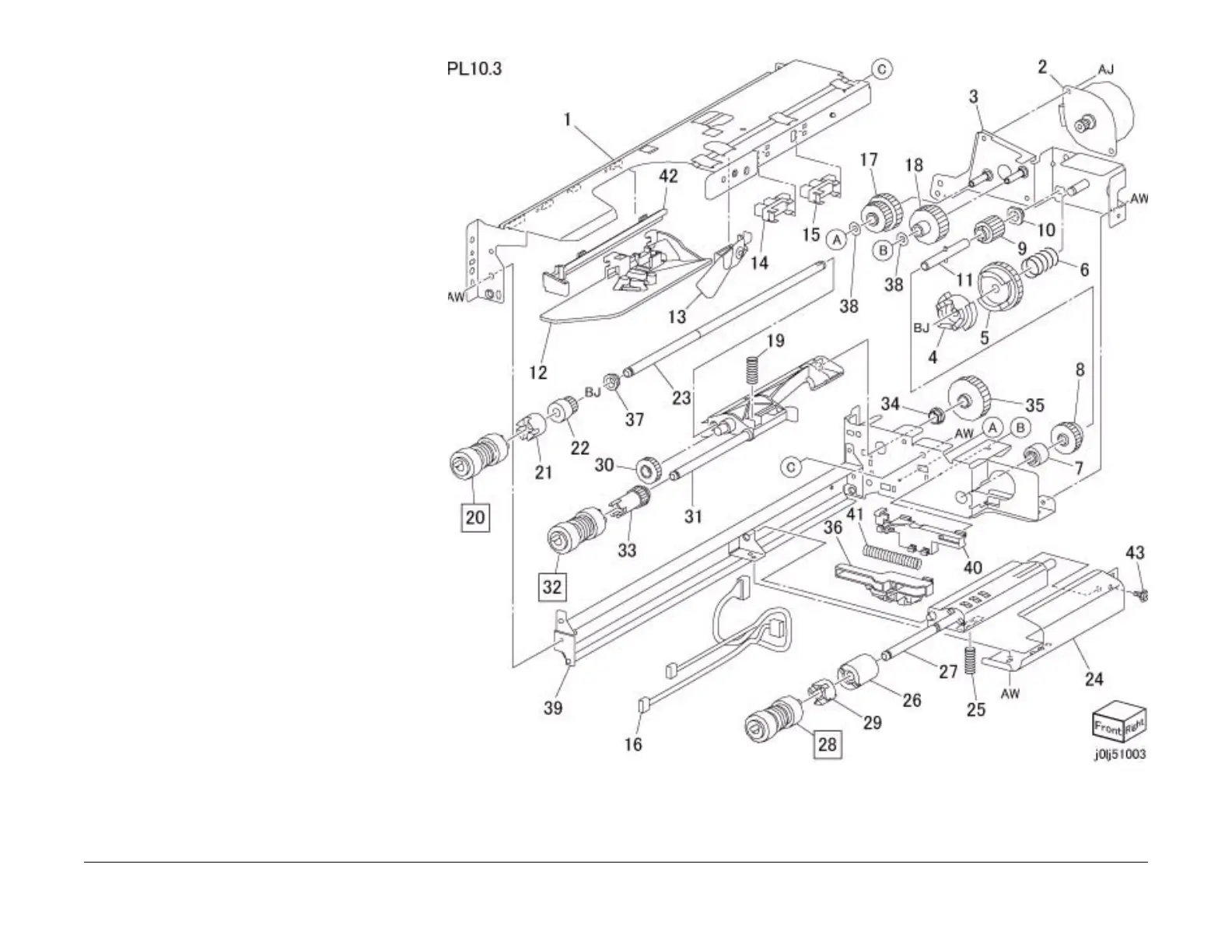

PL 10.3 Tray 2 Feeder
Item Parts No Description A.C.
1 – Upper Frame 50G1
2 127K 38171 Tray 2 Feed/Lift Up Motor5091
3 – Bracket 50G2
4 014E 44770 Spacer 50G3
5 807E 00390 Gear (31T) 50G4
6 809E 50531 Spring 50G5
7 005K 83081 Oneway Clutch 50G6
8 007K 85730 Oneway Gear 50G7
9 807E 00800 Gear (13T) 50G8
10 013E 26530 Bearing 50G9
11 – Shaft 50GB
12 054E 23461 Front Chute 50GC
13 120E 22481 Actuator 50GD
14 – Tray 2 Nudger Level Sensor50GE
15 – Tray 2 No Paper Sensor 50GF
16 962K 19692 Wire Harness 50GG
17 – Gear (28T/21T) 50GH
18 007E 78900 Gear (29T) 50GJ
19 809E 51070 Spring 50GK
20 - Tray 2 Feed Roll (REP 10.3.1)5042
21 005K 05890 Oneway Clutch 50GL
22 005K 06760 Oneway Gear (22T) 50GM
23 – Shaft 50GN
24 054E 23170 Chute 50GP
25 809E 42531 Spring 50GQ
26 005K 07010 Friction Clutch (Alternate)50GR
– 005K 81880 Friction Clutch (Alternate)50GR
27 – Support Assembly 50GS
28 - Tray 2 Retard Roll (REP 10.3.1)
5043
29 014E 45030 Spacer 50GT
30 007E 79380 Gear (33T) 50GV
31 – Support Assembly 50GW
32 - Tray 2 Nudger Roll (REP 10.3.1)
50GX
33 807E 00070 Gear (25T) 50H1
34 413W 11660 Bearing 50H2
35 807E 00410 Gear (34T) 50H3
36 011E 14771 Lever 50H4
37 013E 92890 Bearing 50H5
38 028E 94160 Washer 50H6
39 – Lower Frame 50H7
40 019E 56680 Holder 50H8
41 809E 51080 Spring 50H9
42 – Rail 50HB
43 – Screw 50HC
44 604K20360 Roll KIt (Contains 3 each of items
20, 28, 32)
