08/2012
4-83
WorkCentre 5021/5019
REP 56.10.2
Repairs and Adjustments
Initial Issue
REP 56.10.2 Sensor Bracket
Parts List on PL 56.10
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the DADF Front Cover. (REP 56.2.1)
2. Remove the DADF Rear Cover. (REP 56.2.2)
3. Remove the Invert Chute. (REP 56.9.3)
4. Remove the Bracket and Ground Plate at the front. (Figure 1)
(1) Remove the Tapping Screw (x3).
(2) Loosen the screw.
(3) Remove the Bracket and Ground Plate.

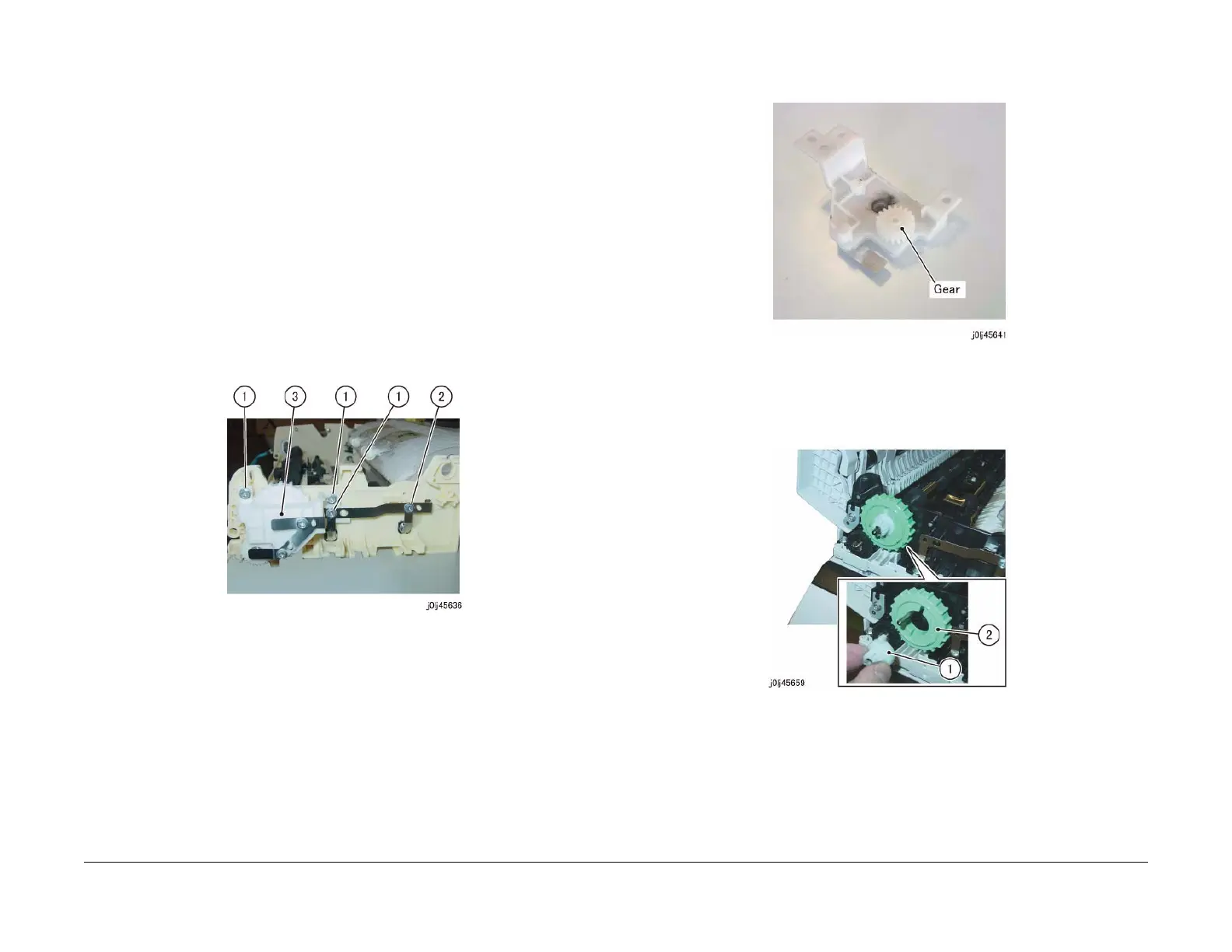

Figure 1 j0lj45636
NOTE: Be careful so as to not lose the gear under the Bracket and Ground Plate. (Figure
2)
Figure 2 j0lj45641
5. Remove the Knob Handle. (Figure 3)
(1) Remove the gear.
(2) Remove the Knob Handle.
Figure 3 j0lj45659
6. Remove the Bearing of the DADF Takeaway Roll. (Figure 4)
(1) Remove the KL-Clip.
(2) Remove the Bearing.
To Next Page
