08/2012
4-62
WorkCentre 5021/5019
REP 56.1.1, REP 56.1.2
Initial Issue
Repairs and Adjustments
'Chain Link : 955-828'
Refer to [6.4.2.9 HFSI Counter Read/Clear].
REP 56.1.2 DADF Platen Cushion
Parts List on PL 56.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
NOTE: The DADF Platen Cushion is pasted on with double sided adhesive tapes.

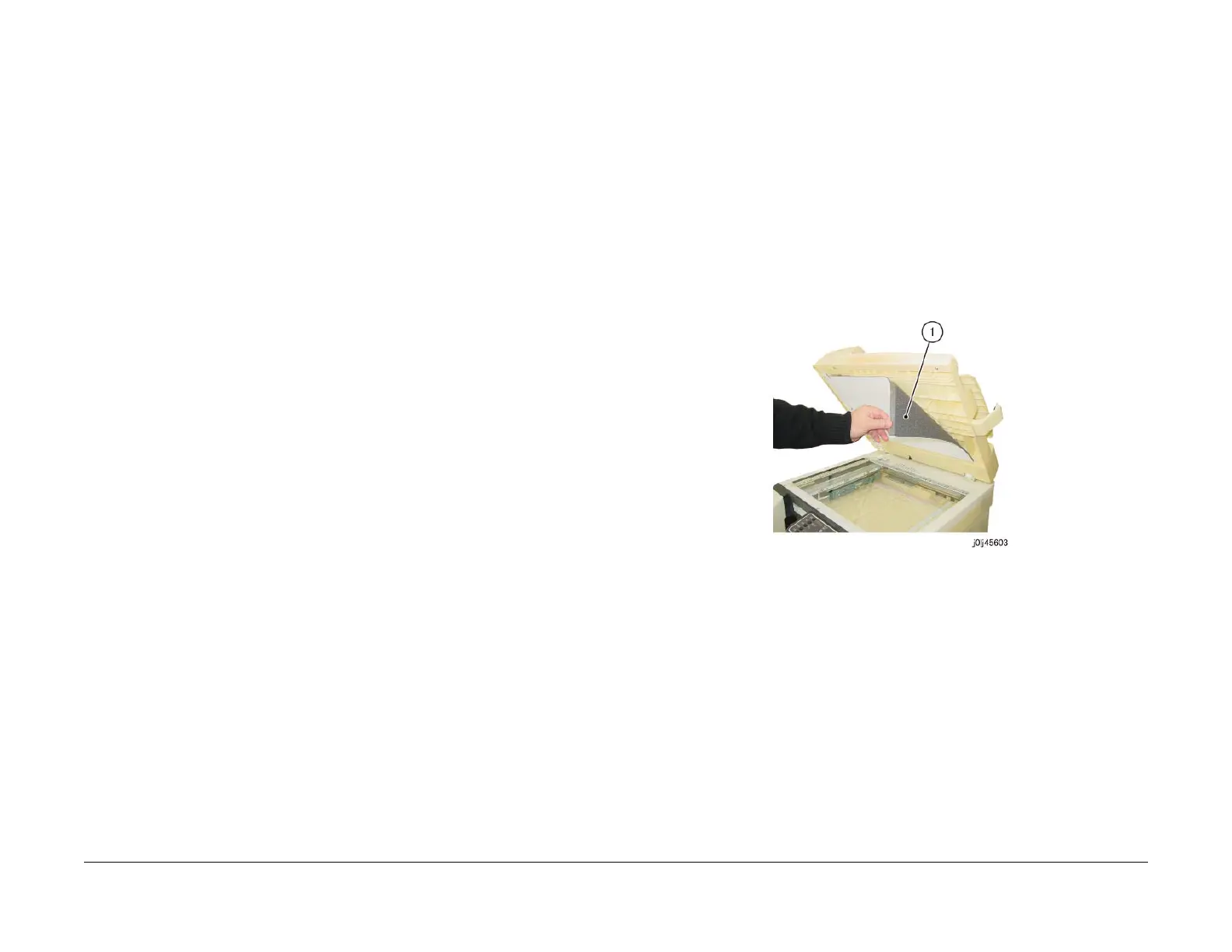

1. Peel off the DADF Platen Cushion. (Figure 1)
(1) Peel off the DADF Platen Cushion.
Figure 1 j0lj45603
Replacement
1. Paste on the DADF Platen Cushion. (Figure 2)
(1) Place the DADF Platen Cushion on the Platen Glass.
(2) Set up the gap between the Regi Guide and Platen Guide.
(3) Slowly lower the DADF to paste the DADF Platen Cushion to it.
To Next Page
