Xerox WorkCentre 5021 Service Documentation

08/2012
5-43
WorkCentre 5021/5019
PL 19.1
Parts List
Initial Issue

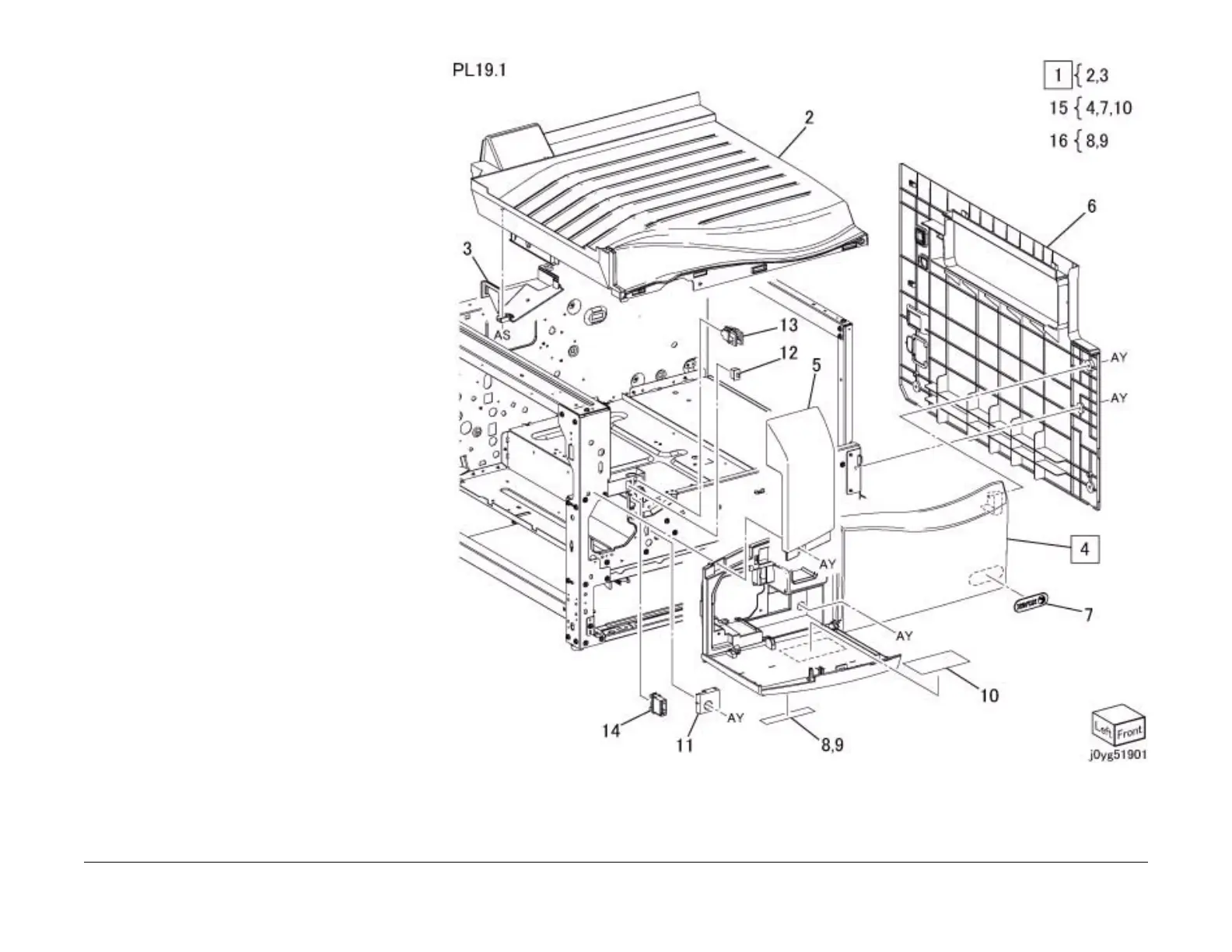

PL 19.1 Cover-Front,Top,Right
Item Parts No Description A.C.
1 848K 68290 Top Cover (Item 2,3) (REP 19.1.2)
60AA
2 – Top Cover (P/O Item 1) 60AA
3 054E 50280 Duct 32B1
4 – Front Cover (P/O Item 15) (REP
19.1.1)32B2
5 848E 84570 Fusing Unit Cover 32B3
6 848E 84611 Right Cover 32B4
7 – Logo Plate (P/O Item 15) 32B5
8 – Name Plate (WorkCentre 5021) (P/
O Item 16)32B6
9 – Name Plate (WorkCentre 5019) (P/
O Item 16)32B7
10 – CRU Instruction Label (P/O Item
15)32B8
11 848E 85850 Connector Blank Cover 32B9
12 110E 12981 Front Cover Switch 7121
13 110E 94770 Front Cover Interlock Switch32BB
14 113E 47530 Drawer Connector 32BC
15 848K 76560 Front Cover Kit (Item 4,7,10)32BD
16 604K 80740 Name Plate Kit (Item 8,9)32BE
