Xerox WorkCentre 5021 Service Documentation

08/2012
5-37
WorkCentre 5021/5019
PL 14.3
Parts List
Initial Issue

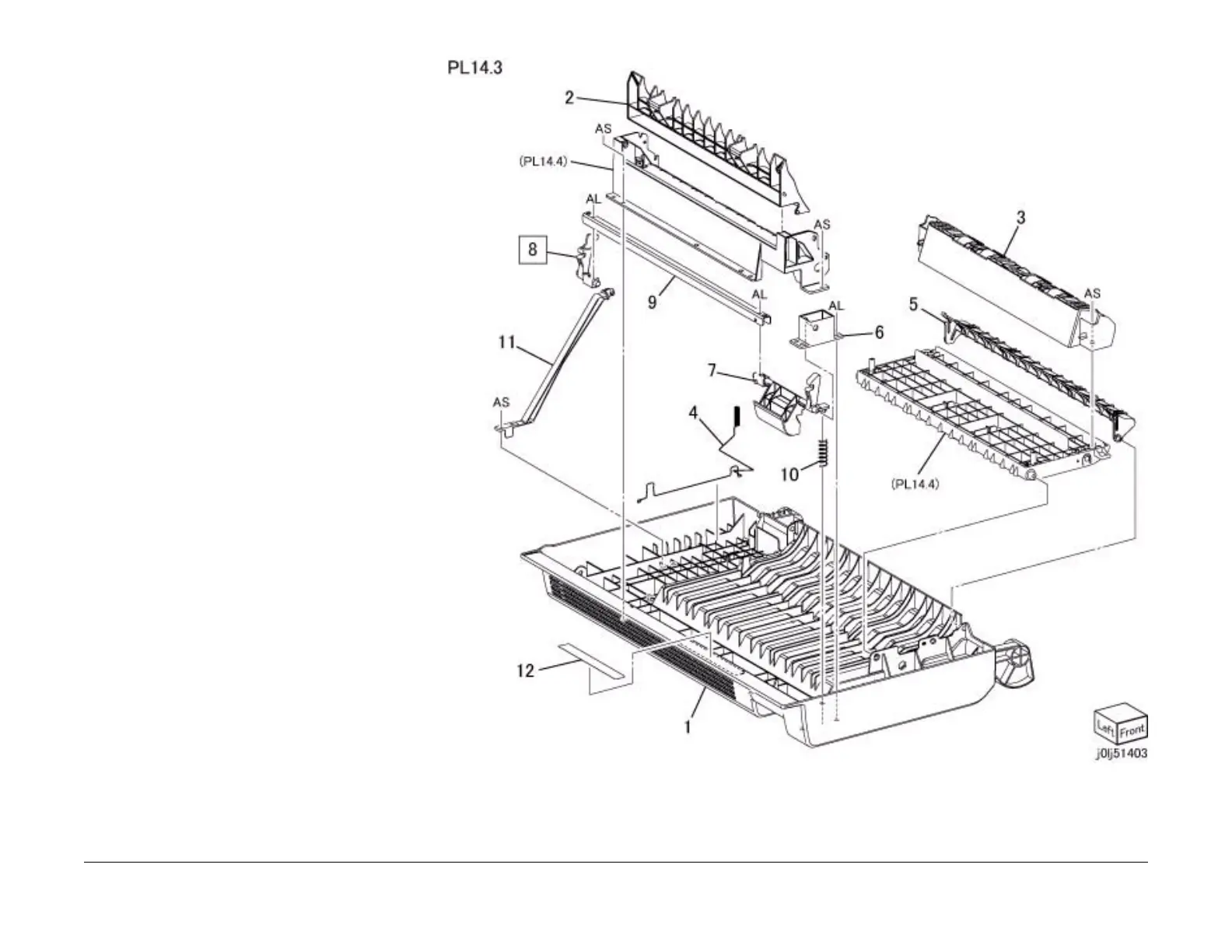

PL 14.3 Duplex L/H Cover-
Chute,Latch
Item Parts No Description A.C.
1 – L/H Cover 52D1
2 054E 50031 Duplex In Chute 52D2
3 054K 48500 Registration Pinch Chute 52D3
4 062E 16500 Conductor 52D4
5 054E 49741 L/H Cover Lower Chute 52D5
6 868E 78150 Front Latch Support 52D6
7 011E 26670 Front Latch Lever 52D7
8 011E 26691 Rear Latch Lever(REP 99.1.1)
52D8
9 815E 75070 Latch Plate 52D9
10 809E 99540 Spring 52DB
11 868E 77080 L/H Cover Support 52DC
12 898E 45921 Caution Label 52DD
