08/2012
5-20
WorkCentre 5021/5019
PL 8.2
Initial Issue
Parts List

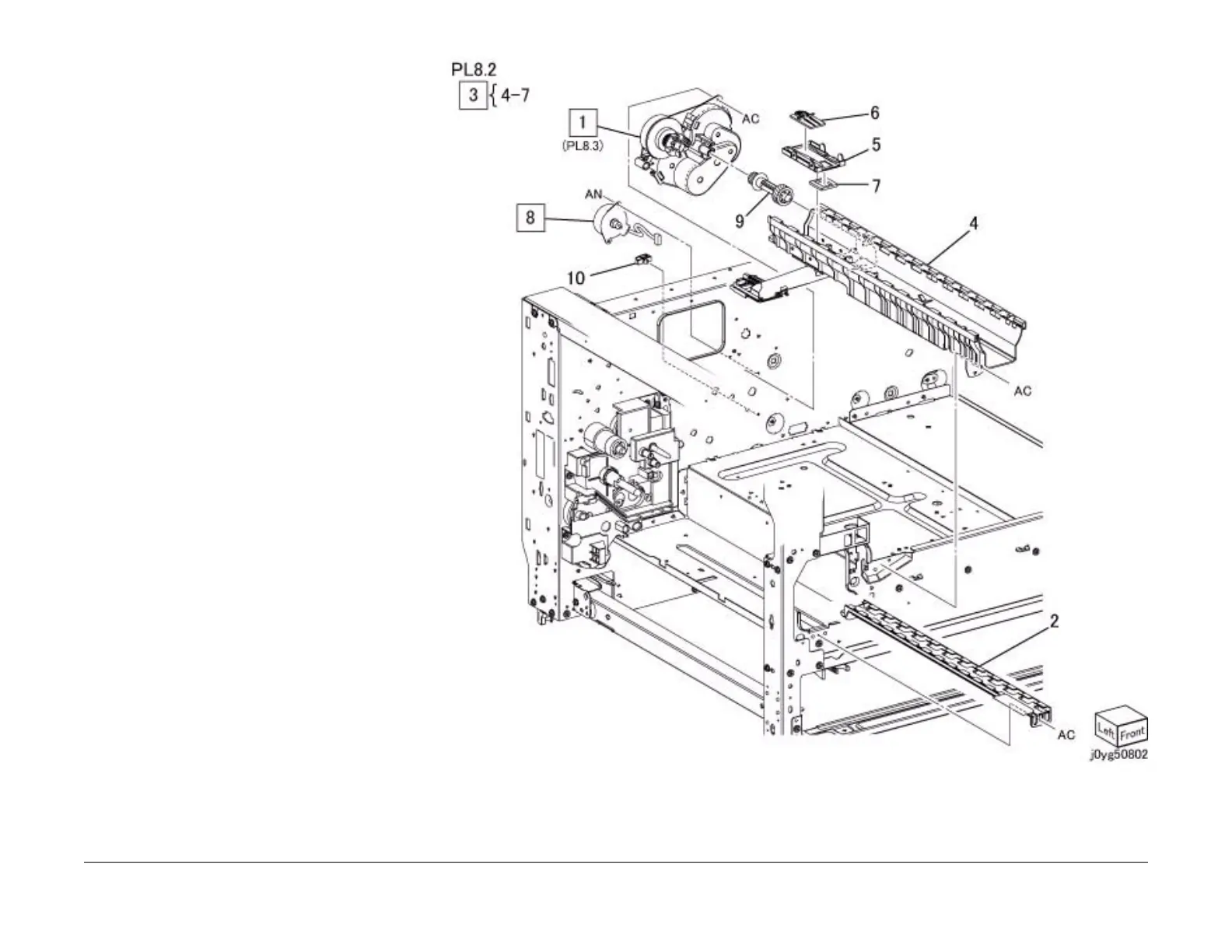

PL 8.2 Toner System
Item Parts No Description A.C.
1 007K 18750 Dispense Drive (PL 8.3) (REP
8.2.2)45C1
2 032K 08100 Drum Cartridge Guide 45C2
3 094K 93270 Cartridge Guide (Item 4-7) (REP
8.2.1)4020
4 032K 08080 Cartridge Guide 45C3
5 032E 35502 Shutter Guide 45C4
6 055E 58451 Dispenser Shutter 45C5
7 – Guide Seal (P/O Item 3) 45C6
8 127K 66870 Toner Dispense Motor(REP 99.1.1)
45C7
9 807E 39410 Gear (21/21T) 45C8
10 – Clamp 45C9
