08/2012
5-54
WorkCentre 5021/5019
PL 56.10
Initial Issue
Parts List

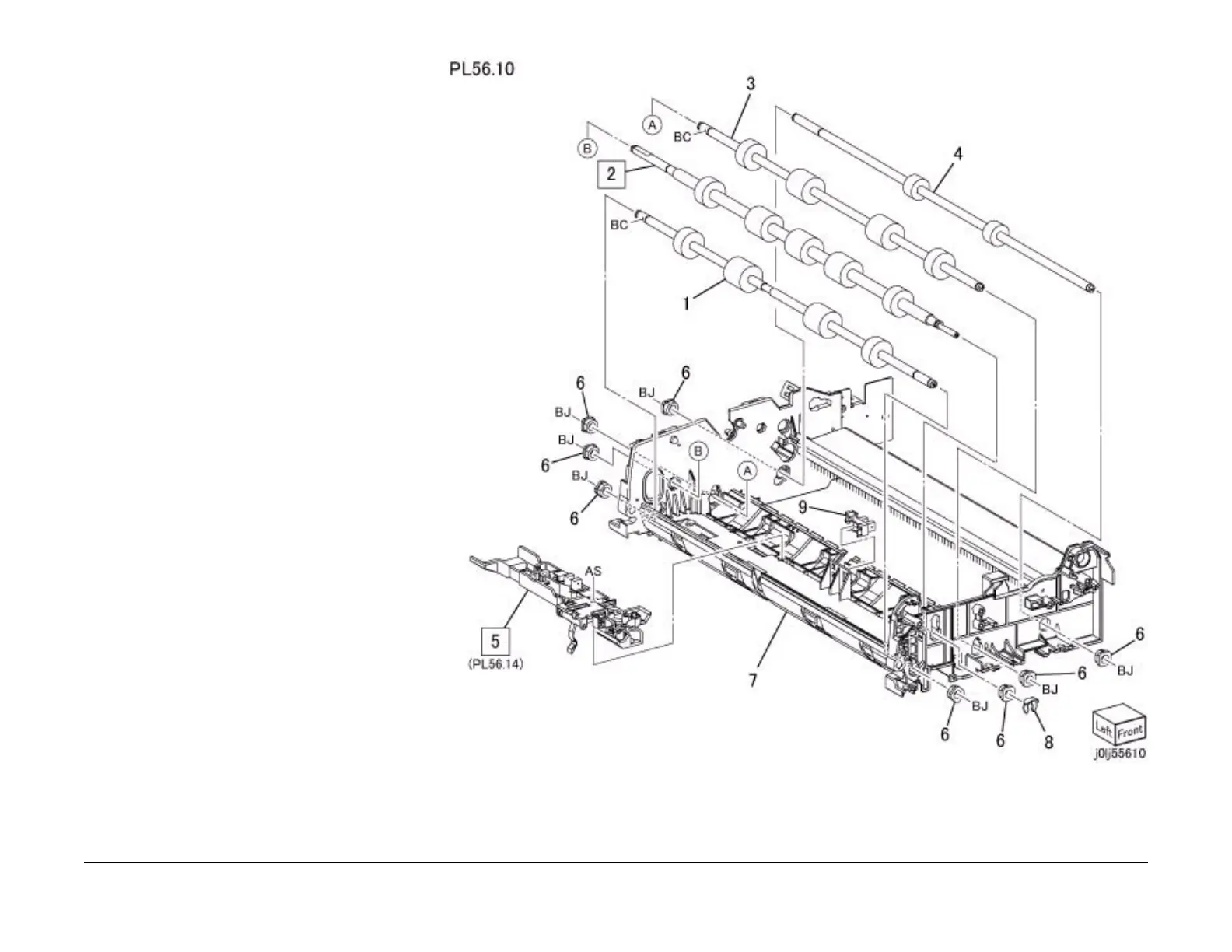

PL 56.10 DADF Roll,Sensor Bracket
Item Parts No Description A.C.
1 059K 75780 DADF Registration Roll 22L1
2 059K 75790 DADF Takeaway Roll (REP
56.10.1)22L2
3 059K 75800 DADF Out Roll 22L3
4 059K 75810 DADF Exit Roll 22L4
5 049K 17820 Sensor Bracket (PL 56.14) (REP
56.10.2)22L5
6 413W 11660 Bearing 22L6
7 – DADF Feeder Frame 22L7
8 – KL-Clip 22L8
9 930W 00121 DADF Invert Sensor 22L9
