Xerox WorkCentre 5021 Service Documentation

08/2012
5-39
WorkCentre 5021/5019
PL 15.1
Parts List
Initial Issue

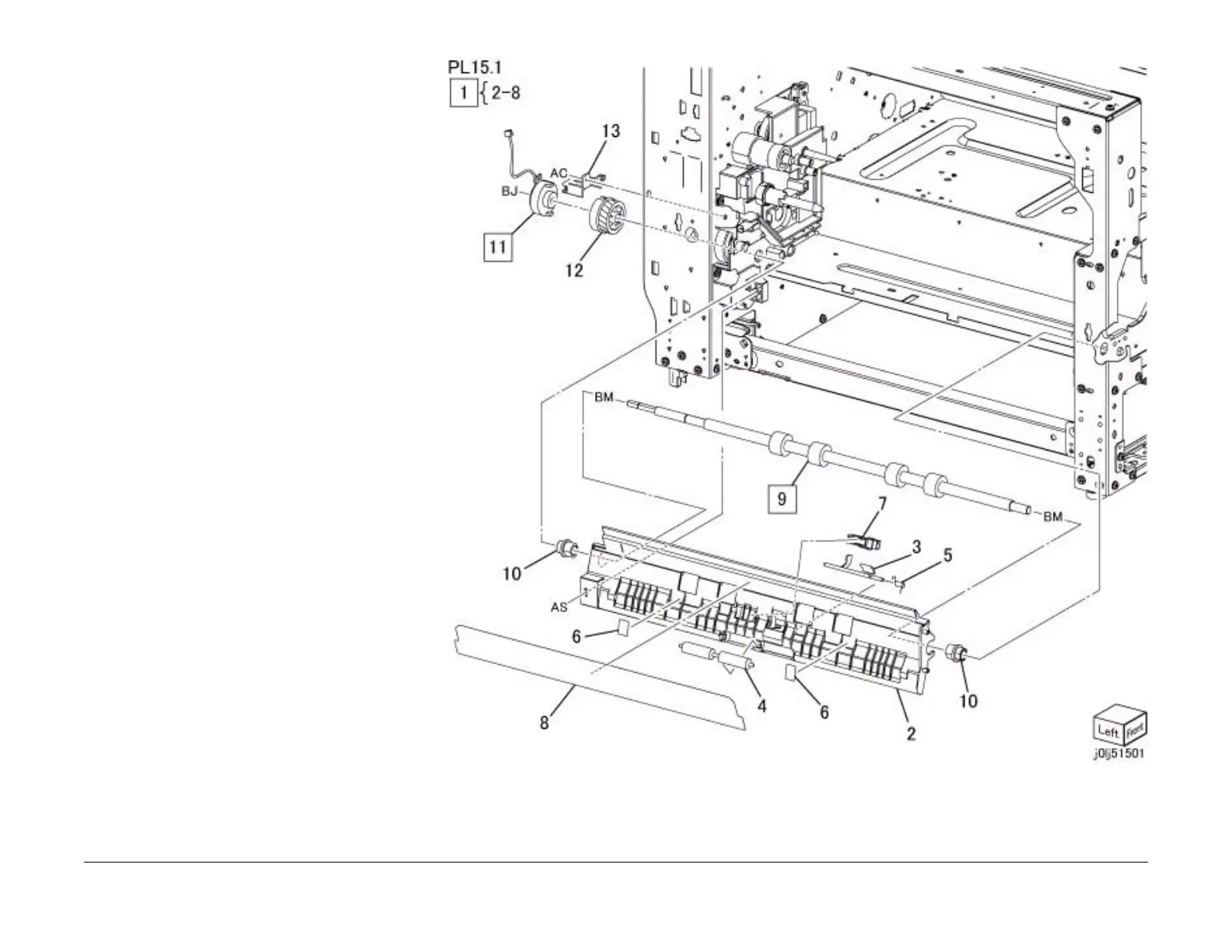

PL 15.1 Registration
Item Parts No Description A.C.
1 059K 74900 Registration Chute (Item 2-8) (REP
15.1.1)5310
2 – Registration Chute (P/O Item 1)
5315
3 120E 34050 Actuator 53B1
4 059E 98590 Idler Roll 53B2
5 809E 99570 Spring 53B3
6 – Paper Guide (P/O Item 1)53B4
7 930W 00123 Registration Sensor 5314
8 – Film Chute (P/O Item 1) 53B5
9 059K 74891 Registration Roll (REP 15.1.2)5313
10 013E 40990 Bearing 53B6
11 121K 52340 Registration Clutch (REP 99.1.1)
53B7
12 807E 40940 Helical Gear 53B8
13 032E 41320 Harness Guide 53B9
