Program features 125

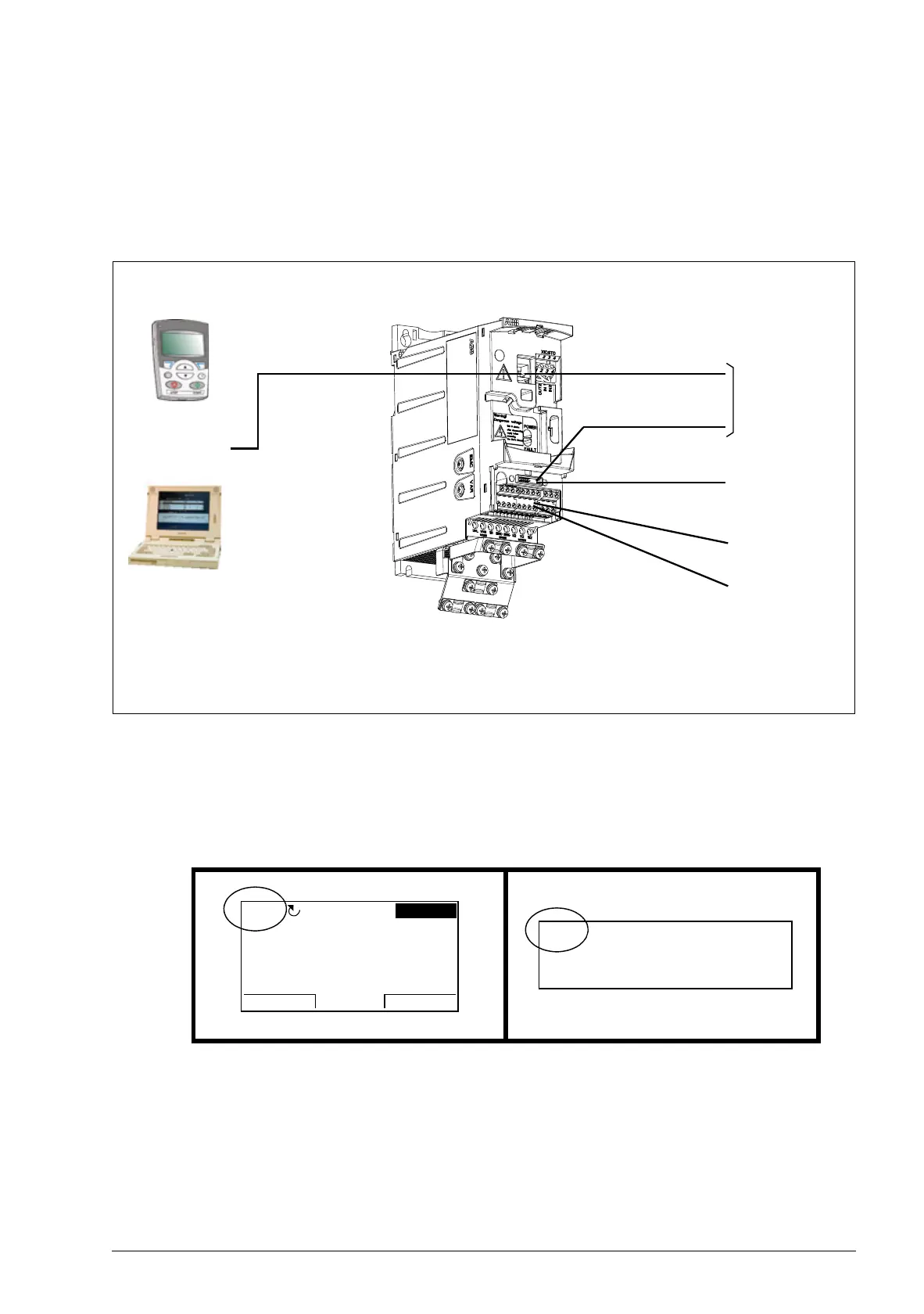

Local control vs. external control
The drive can receive start, stop and direction commands and reference values from
the control panel or through digital and analog inputs. Embedded fieldbus or an
optional fieldbus adapter enables control over an open fieldbus link. A PC equipped
with the DriveWindow Light 2 PC tool can also control the drive.
 Local control
The control commands are given from the control panel keypad when the drive is in
local control. LOC indicates local control on the panel display.
The control panel always overrides the external control signal sources when used in
local control.
Standard I/O
External controlDriveLocal control
Control panel
or
PC tool
* With SREA-01 Ethernet adapter module it is possible to use Modbus TCP/IP with the
Ethernet. For more information, see SREA-01 Ethernet adapter module user’s manual
(3AUA0000042896 [English]).
Panel
connection (X2)
Embedded
fieldbus
(Modbus*)
Panel
connection (X2)
or
FBMA adapter
connected to X3
Fieldbus adapter
connection (X3)
Fieldbus
adapter
Potentiometer
Assistant control panel Basic control panel
DIR
MENU
00:00
LOC
49.1Hz
49 1 Hz.
05 A.
10 7 %.
LOC
Hz
OUTPUT FWD
491
.

ABB ACS355 Specifications

General

Input Voltage	200 V to 240 V AC, 380 V to 480 V AC
Frequency	47 Hz to 63 Hz
Control Method	Scalar control
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short circuit
Communication Interfaces	Modbus RTU, CANopen
Enclosure Rating	IP20
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Storage Temperature	-40°C to +70°C (-40 to +158 °F)
Humidity	95% RH (non-condensing)
Altitude	Up to 1000 m (3280 ft) without derating
