Mechanical installation 33
Unpacking

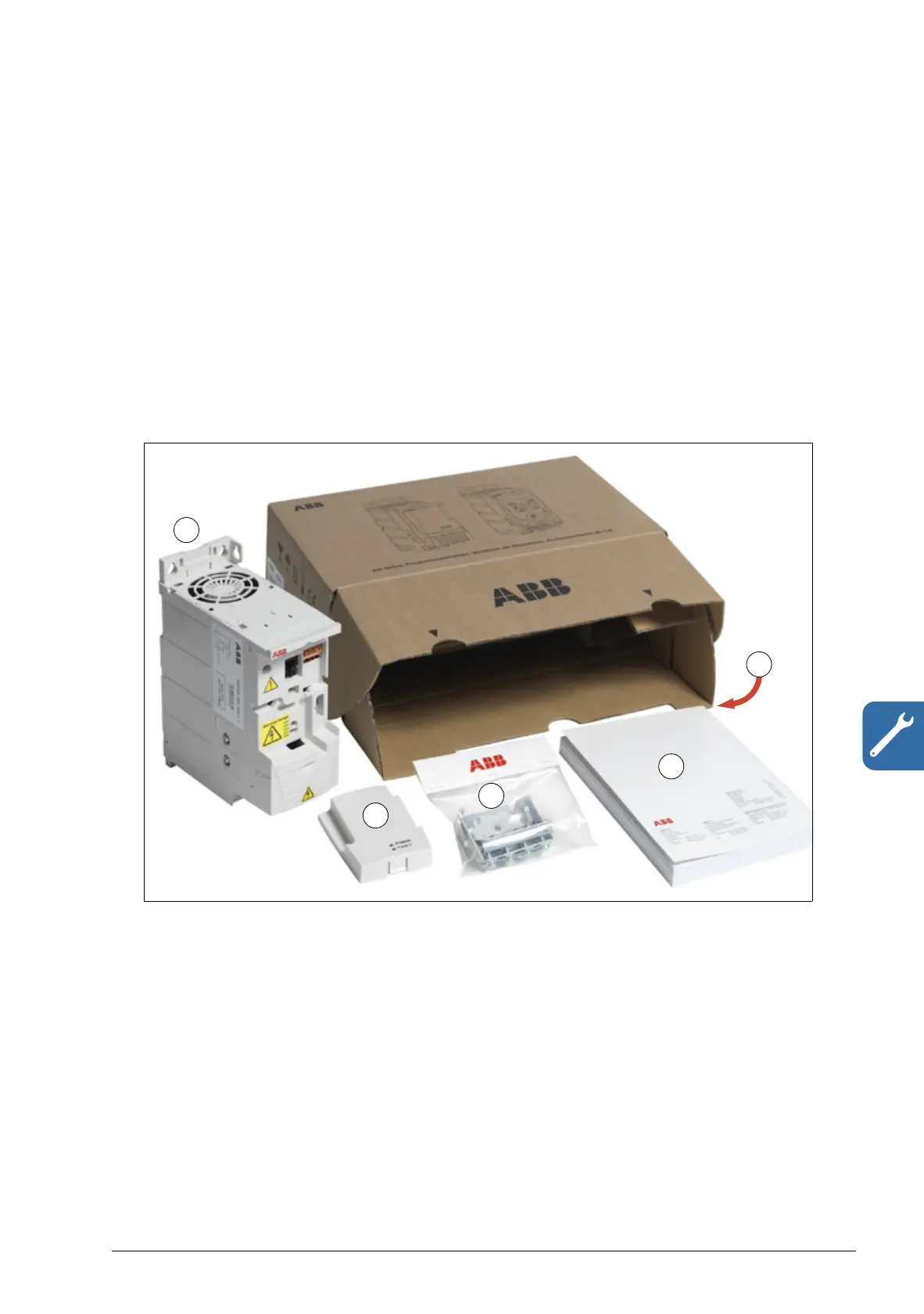

The drive (1) is delivered in a package that also contains the following items (frame
size R1 shown in the figure):
• plastic bag (2) including clamping plate (also used for I/O cables in frame sizes
R3 and R4), I/O clamping plate (for frame sizes R0…R2), fieldbus option ground
plate, clamps and screws
• panel cover (3)
• mounting template, integrated into the package (4)
• user’s manual (5)
• possible options (fieldbus, potentiometer, extension module, all with instructions,
basic control panel or assistant control panel).
Checking the delivery
Check that there are no signs of damage. Notify the shipper immediately if damaged
components are found.
Before attempting installation and operation, check the information on the type
designation label of the drive to verify that the drive is of the correct type. See section
Type designation label on page 28.
1
4
2
3
5

ABB ACS355 Specifications

General

Input Voltage	200 V to 240 V AC, 380 V to 480 V AC
Frequency	47 Hz to 63 Hz
Control Method	Scalar control
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short circuit
Communication Interfaces	Modbus RTU, CANopen
Enclosure Rating	IP20
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Storage Temperature	-40°C to +70°C (-40 to +158 °F)
Humidity	95% RH (non-condensing)
Altitude	Up to 1000 m (3280 ft) without derating
