154 Program features
Example

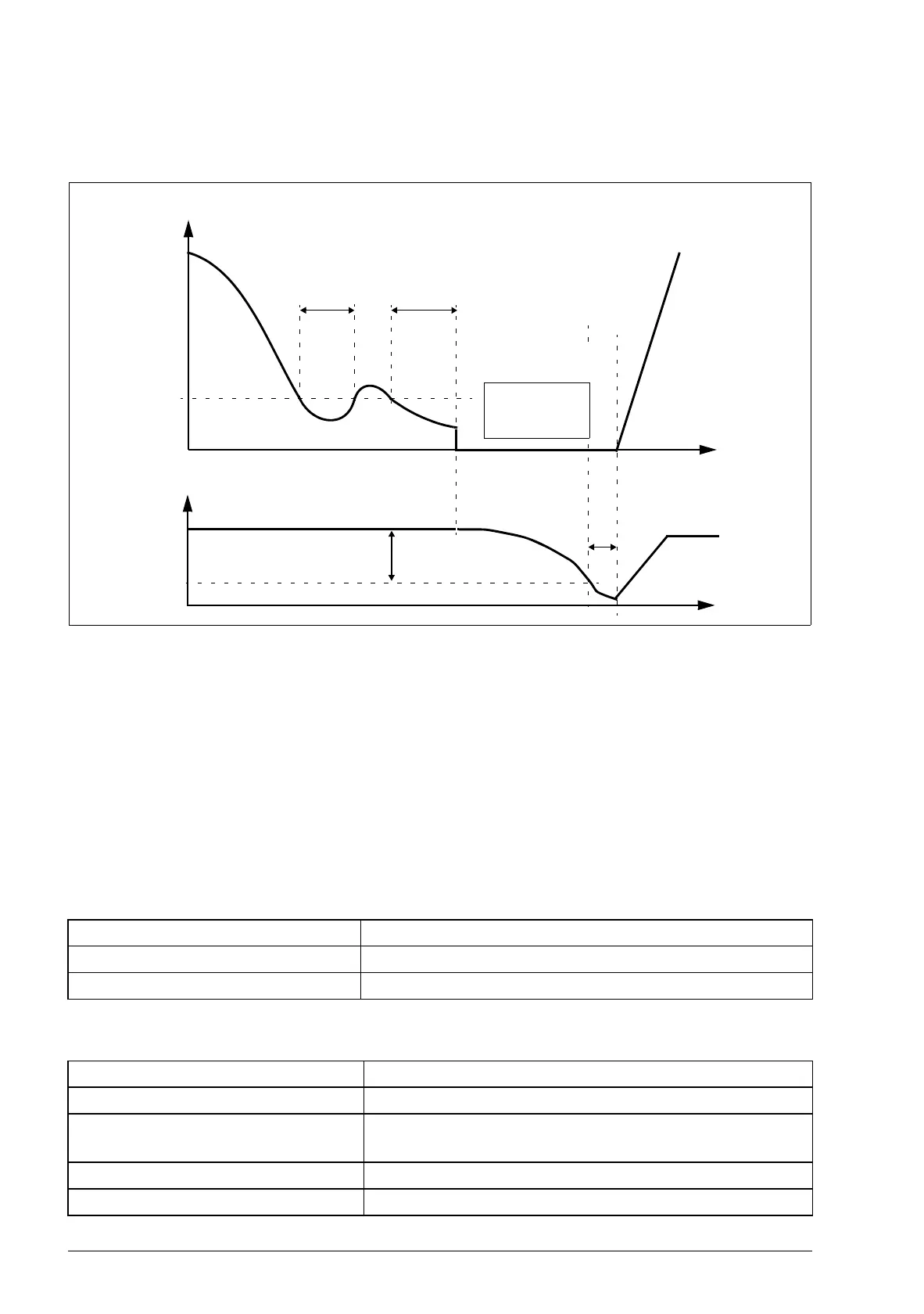

The time scheme below visualizes the operation of the sleep function.
Sleep function for a PID controlled pressure boost pump (when parameter 4022
SLEEP SELECTION is set to INTERNAL): The water consumption falls at night. As a
consequence, the PID process controller decreases the motor speed. However, due
to natural losses in the pipes and the low efficiency of the centrifugal pump at low
speeds, the motor does not stop but keeps rotating. The sleep function detects the
slow rotation, and stops the unnecessary pumping after the sleep delay has passed.
The drive shifts into sleep mode, still monitoring the pressure. The pumping restarts
when the pressure falls under the allowed minimum level and the wake-up delay has
passed.
Settings
Diagnostics
Parameter Additional information
9902 PID control activation
4022…4026, 4122…4126 Sleep function settings
Parameter Additional information
1401 PID sleep function status through RO 1
1402/1403/1410 PID sleep function status through RO 2…4. With option
MREL-01 only.
Alarm Additional information
PID SLEEP Sleep mode
t
t
t<t
d
t
d
Wake-up deviation
(4025)
Actual value
Wake-up delay
(4026)
t
d
= Sleep delay (4024)
Sleep level
(4023)
Motor speed
Stop Start
