ABB ACS355 User Manual

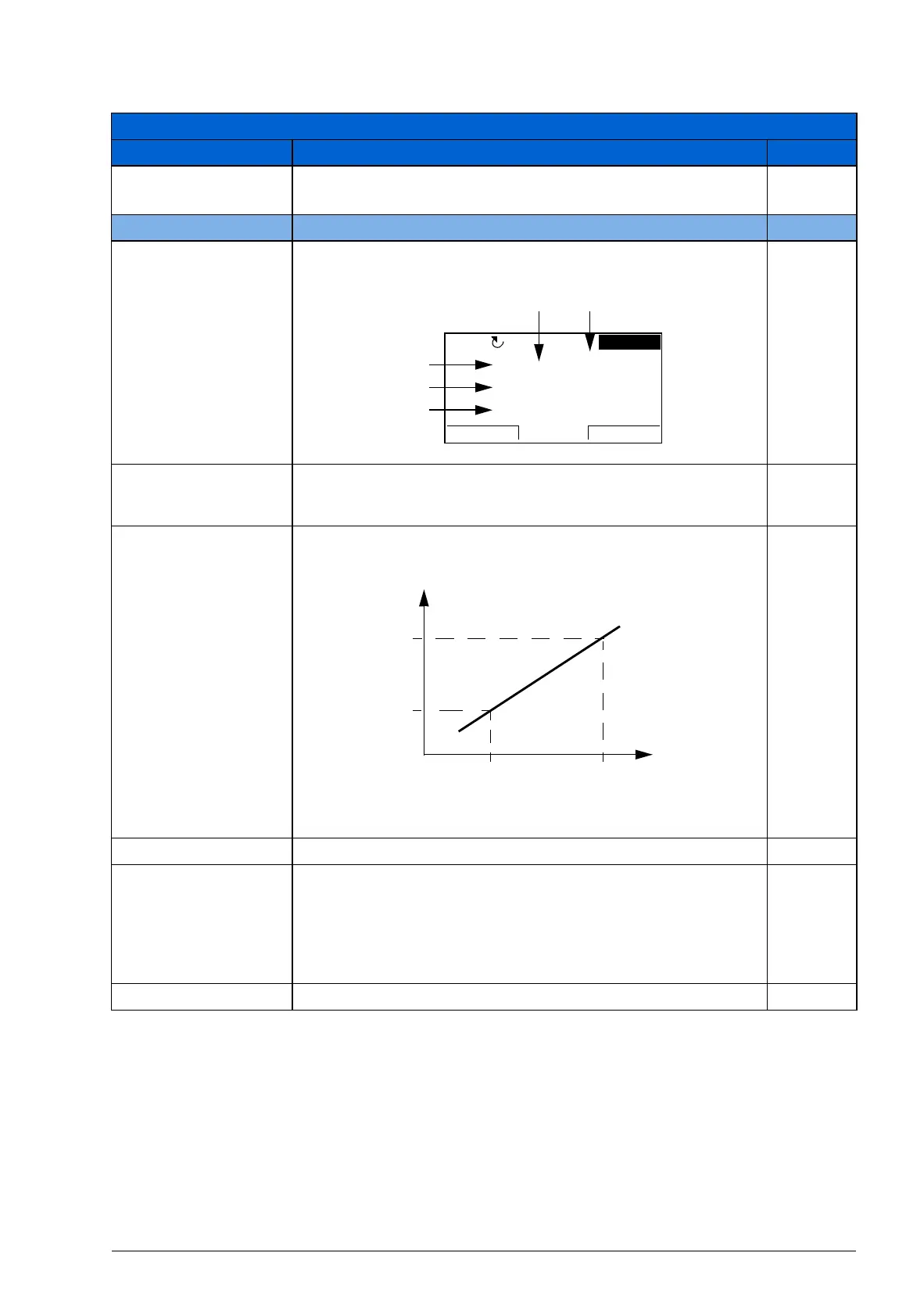

Actual signals and parameters 251
0000…FFFF
hex
Eg 400E hex
34 PANEL DISPLAY Selection of actual signals to be displayed on the panel
3401 SIGNAL1
PARAM
Selects the first signal to be displayed on the control panel
in the Output mode.
103
0= NOT
SELECTED
101…180
Parameter index in group 01 OPERATING DATA. Eg 102 =
0102 SPEED. If value is set to 0, no signal is selected.
1 = 1
3402 SIGNAL1 MIN Defines the minimum value for the signal selected by
parameter 3401 SIGNAL1 PARAM.
Note: Parameter is not effective if parameter 3404
OUTPUT1 DSP FORM setting is DIRECT.
-
x…x Setting range depends on parameter 3401 setting. -
3403 SIGNAL1 MAX Defines the maximum value for the signal selected by
parameter 3401 SIGNAL1 PARAM. See the figure for
parameter 3402 SIGNAL1 MIN.
Note: Parameter is not effective if parameter 3404
OUTPUT1 DSP FORM setting is DIRECT.
-
x…x Setting range depends on parameter 3401 setting. -
All parameters
No. Name/Value Description Def/FbEq
Assistant control panel
0137
0138
0139
3404 3405
DIR
MENU
00:00
LOC
15.0Hz
15 0 Hz.
37 A.
17 3 %.
3402
Source
value
Display
value
3407
3406
3403

ABB ACS355 Specifications

General

Input Voltage	200 V to 240 V AC, 380 V to 480 V AC
Frequency	47 Hz to 63 Hz
Control Method	Scalar control
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short circuit
Communication Interfaces	Modbus RTU, CANopen
Enclosure Rating	IP20
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Storage Temperature	-40°C to +70°C (-40 to +158 °F)
Humidity	95% RH (non-condensing)
Altitude	Up to 1000 m (3280 ft) without derating
