202 Actual signals and parameters
1406 RO 2 ON
DELAY
See parameter 1404 RO 1 ON DELAY.0.0s
1407 RO 2 OFF
DELAY
See parameter 1405 RO 1 OFF DELAY.0.0s
1408 RO 3 ON
DELAY
See parameter 1404 RO 1 ON DELAY.0.0s
1409 RO 3 OFF
DELAY
See parameter 1405 RO 1 OFF DELAY.0.0s
1410 RELAY
OUTPUT 4
See parameter 1401 RELAY OUTPUT 1. Available only if
the MREL-01 relay output extension module is connected to
the drive.
NOT SEL
1413 RO 4 ON
DELAY
See parameter 1404 RO 1 ON DELAY.0.0s
1414 RO 4 OFF
DELAY
See parameter 1405 RO 1 OFF DELAY.0.0s
15 ANALOG
OUTPUTS
Selection of the actual signals to be indicated through
analog output and output signal processing.
1501 AO1
CONTENT SEL
Connects a drive signal to analog output AO. 103
x…x Parameter index in group 01 OPERATING DATA. Eg 102 =
0102 SPEED.
1502 AO1
CONTENT MIN
Defines the minimum value for the signal selected with
parameter 1501 AO1 CONTENT SEL.
AO minimum and maximum correspond to the 1504
MINIMUM AO1 and 1505 MAXIMUM AO1 settings as
follows:
-
x…x Setting range depends on the parameter 1501 AO1
CONTENT SEL setting.
-
1503 AO1
CONTENT
MAX
Defines the maximum value for the signal selected with
parameter 1501 AO1 CONTENT SEL. See the figure for
parameter 1502 AO1 CONTENT MIN.
-
x…x Setting range depends on the parameter 1501 AO1
CONTENT SEL setting.
-
1504 MINIMUM AO1 Defines the minimum value for the analog output signal AO.
See the figure for parameter 1502 AO1 CONTENT MIN.
0.0 mA
0.0…20.0 mA Minimum value 1 =
0.1 mA
All parameters

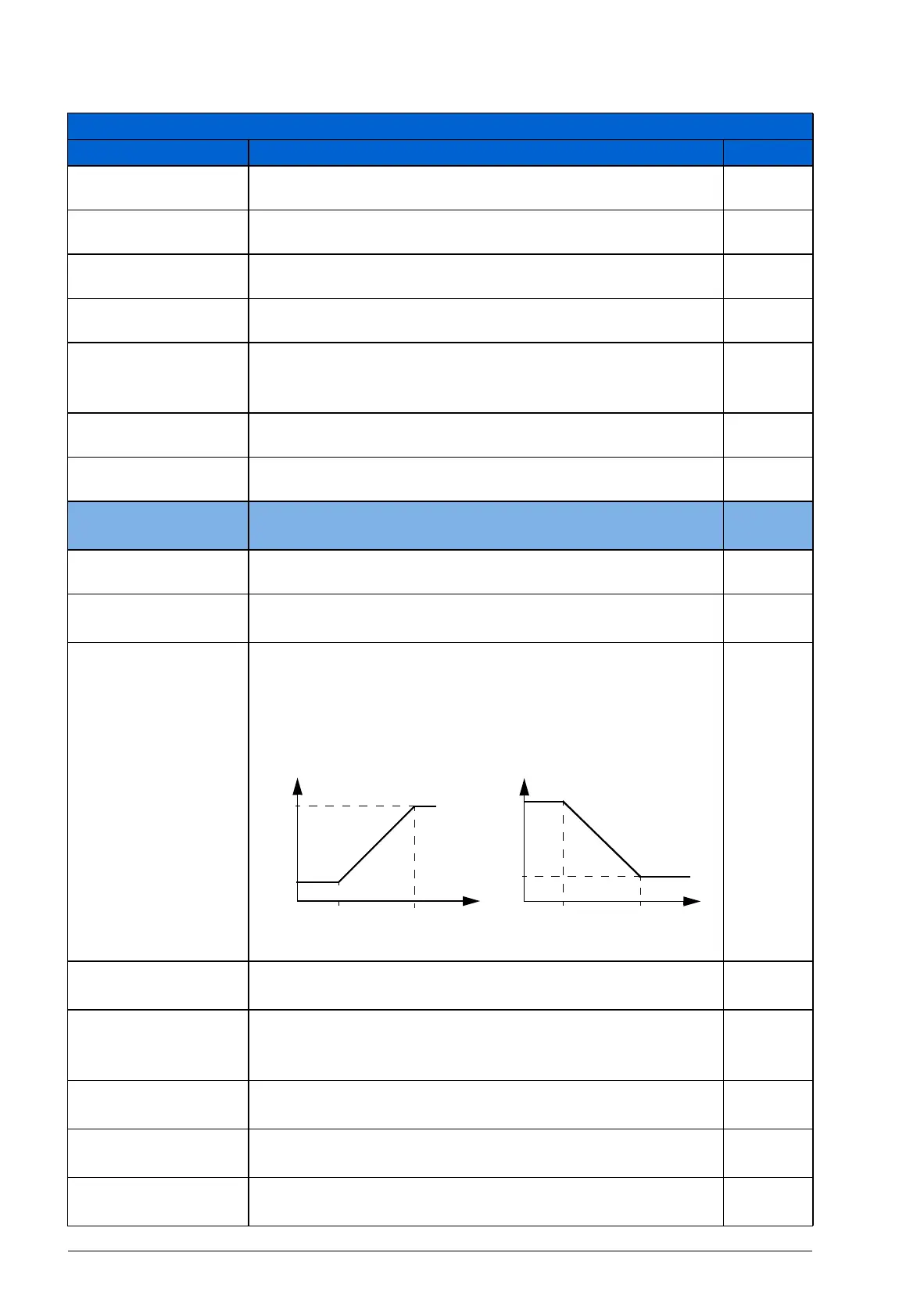

No. Name/Value Description Def/FbEq
1505
1504
1502 1503
1505
1504
1503 1502
AO
content
AO (mA)
AO (mA)
AO
content
