Program features 169

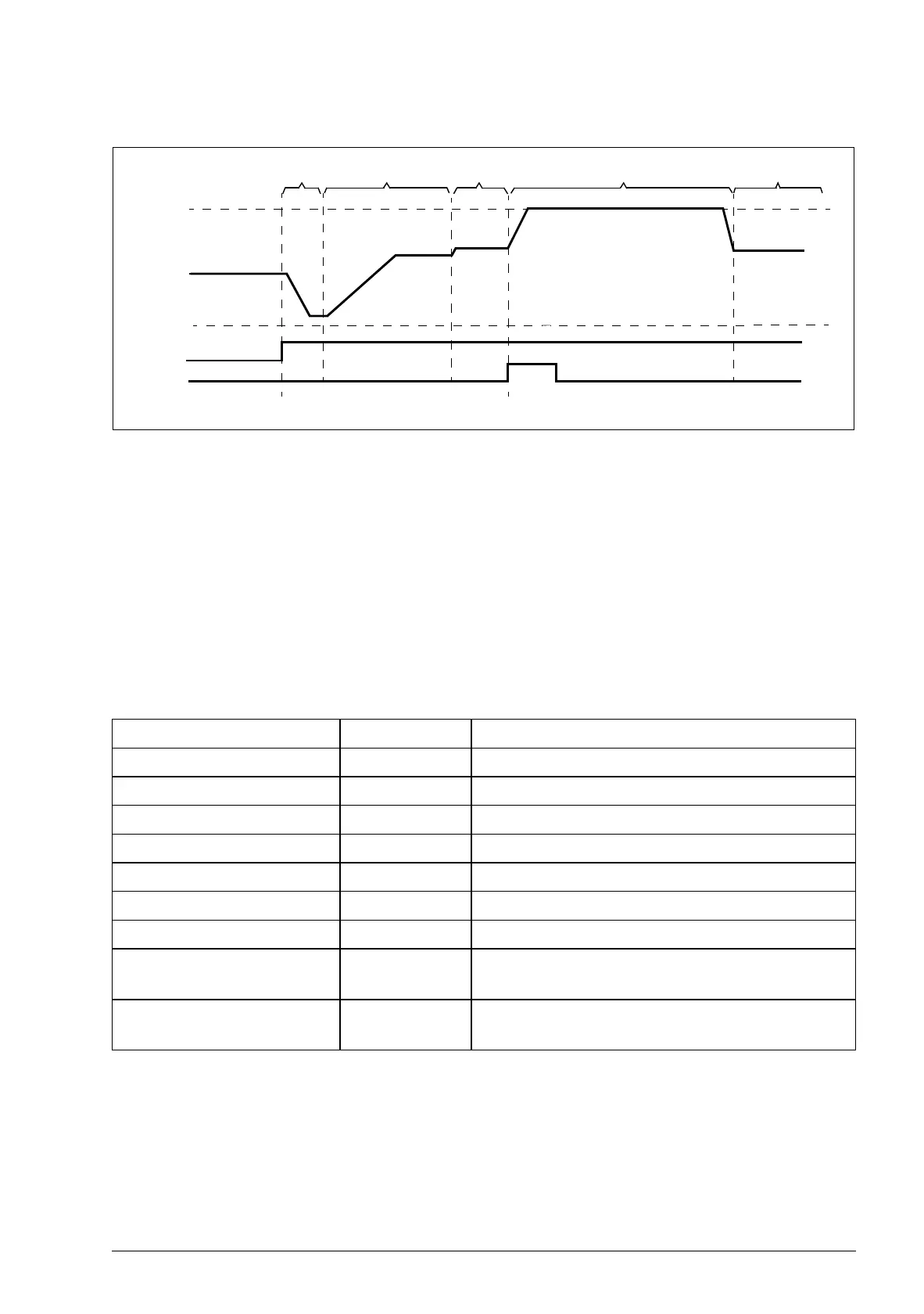

Example 1
Sequence programming is activated by digital input DI1.
ST1: Drive is started in reverse direction with -50 Hz reference and 10 s ramp time.
State 1 is active for 40 s.
ST2: Drive is accelerated to 20 Hz with 60 s ramp time. State 2 is active for 120 s.
ST3: Drive is accelerated to 25 Hz with 5 s ramp time. State 3 is active until the
Sequence programming is disabled or until booster start is activated by DI2.
ST4: Drive is accelerated to 50 Hz with 5 s ramp time. State 4 is active for 200 s and
after that the state shifts back to state 3.
Parameter Setting Additional information
1002 EXT2 COMMANDS SEQ PROG Start, stop, direction commands for EXT2
1102 EXT1/EXT2 SEL EXT2 EXT2 activation
1106 REF2 SELECT SEQ PROG Sequence programming output as REF2
1601 RUN ENABLE NOT SEL Deactivation of Run enable
2102 STOP FUNCTION RAMP Ramp stop
2201 ACC/DEC 1/2 SEL SEQ PROG Ramp as defined by parameter 8422/…/8452.
8401 SEQ PROG ENABLE ALWAYS Sequence programming enabled
8402 SEQ PROG START DI1 Sequence programming activation through
digital input (DI1)
8404 SEQ PROG RESET DI1(INV) Sequence programming reset (ie reset to state
1, when DI1 signal is lost (1 -> 0)
State change triggerSeq. start
50 Hz
0Hz
-50 Hz
DI1
DI2
ST1 ST2 ST3 ST4 ST3
