210 Actual signals and parameters

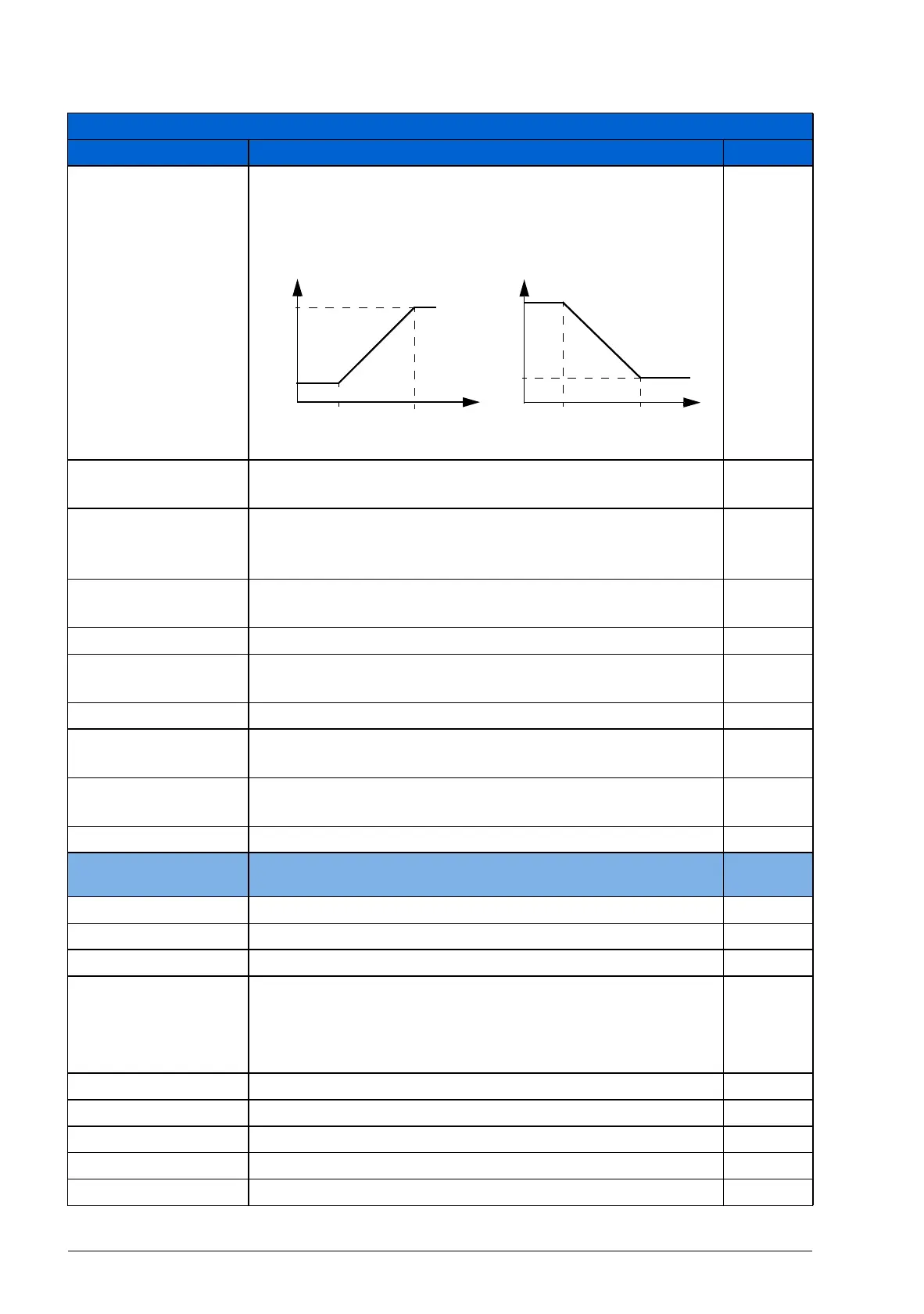

1809 FO CONTENT
MIN
Defines the minimum frequency output FO signal value.
Signal is selected with parameter 1808 FO CONTENT SEL.
FO minimum and maximum correspond to 1811 MINIMUM
FO and 1812 MAXIMUM FO settings as follows:
-
x…x Setting range depends on parameter 1808 FO CONTENT
SEL setting.
-
1810 FO CONTENT
MAX
Defines the maximum frequency output FO signal value.
Signal is selected with parameter 1808 FO CONTENT SEL.
See parameter 1809 FO CONTENT MIN.
-
x…x Setting range depends on parameter 1808 FO CONTENT
SEL setting.
-
1811 MINIMUM FO Defines the minimum value for frequency output FO. 10 Hz
10…16000 Hz Minimum frequency. See parameter 1809 FO CONTENT
MIN.
1 = 1 Hz
1812 MAXIMUM FO Defines the maximum value for frequency output FO. 1000 Hz
10…16000 Hz Maximum frequency. See parameter 1809 FO CONTENT
MIN.
1 = 1 Hz
1813 FILTER FO Defines the filter time constant for frequency output FO, ie
the time within which 63% of a step change is reached.
0.1 s
0.0…10.0 s Filter time constant 1 = 0.1 s
19 TIMER &
COUNTER
Timer and counter for start and stop control
1901 TIMER DELAY Defines the time delay for the timer. 10.00 s
0.01…120.00 s Delay time 1 = 0.01 s
1902 TIMER START Selects the source for the timer start signal. NOT SEL
DI1(INV) Timer start through inverted digital input DI1. Timer start on
the falling edge of digital input DI1.
Note: Timer start is not possible when reset is active
(parameter 1903 TIMER RESET).
-1
DI2(INV) See selection DI1(INV).-2
DI3(INV) See selection DI1(INV).-3
DI4(INV) See selection DI1(INV).-4
DI5(INV) See selection DI1(INV).-5
NOT SEL No start signal 0
All parameters
No. Name/Value Description Def/FbEq
1812
1811
1809 1810
1812
1811
1809 1810
FO
content
FO
FO
FO
content
