Mechanical installation 31

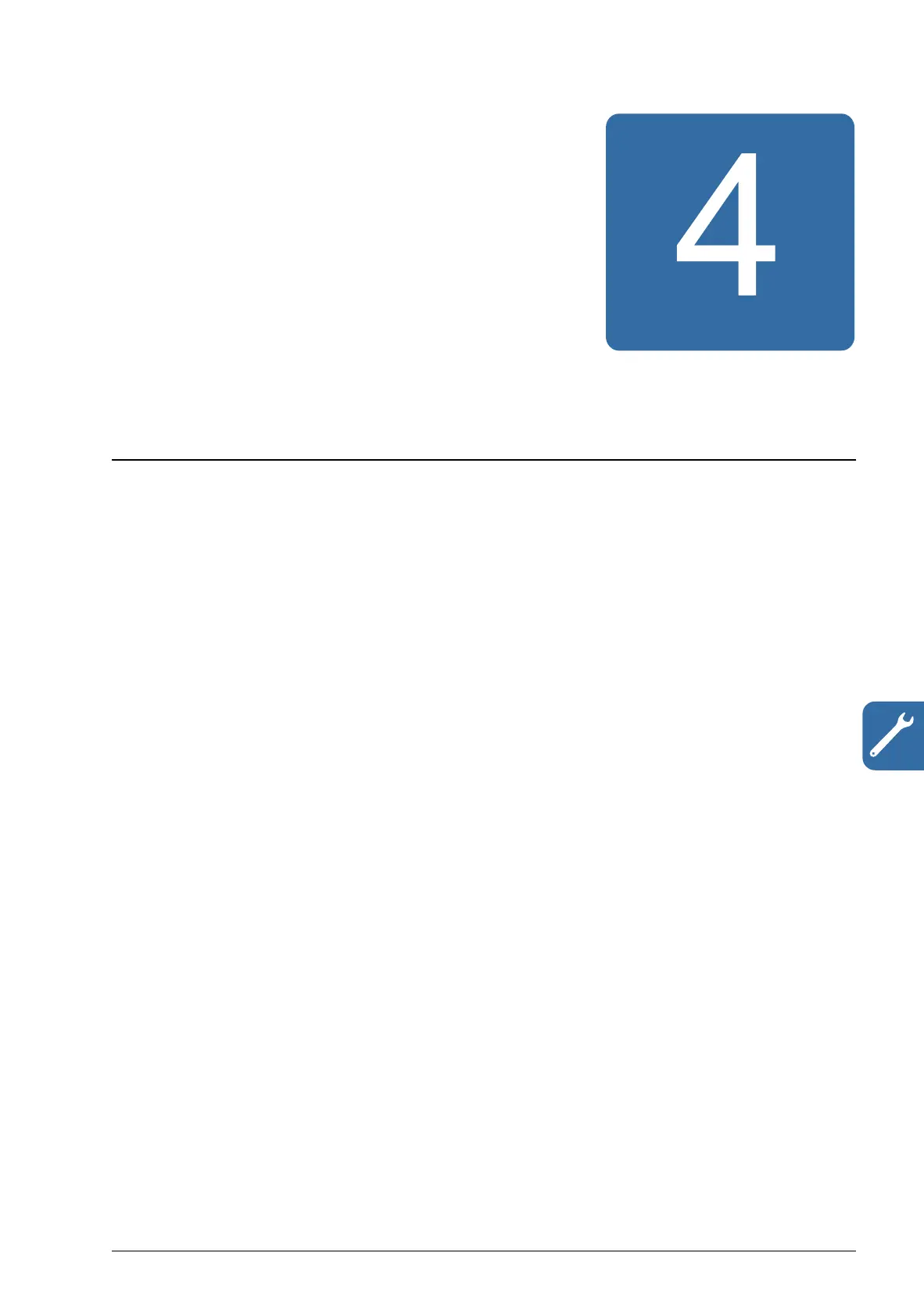

Mechanical installation
What this chapter contains
The chapter tells how to check the installation site, unpack, check the delivery and
install the drive mechanically.
Checking the installation site
The drive may be installed on the wall or in a cabinet. Check the enclosure
requirements for the need to use the NEMA 1 option in wall installations (see chapter
Technical data on page 357).
The drive can be installed in three different ways, depending on the frame size:
a) back mounting (all frame sizes)
b) side mounting (frame sizes R0…R2)
c) DIN rail mounting (all frame sizes).
The drive must be installed in an upright position.
Check the installation site according to the requirements below. Refer to chapter
Dimension drawings on page 379 for frame details.
 Requirements for the installation site
Operation conditions
See chapter Technical data on page 357 for the allowed operation conditions of the
drive.
Wall
The wall should be as close to vertical and even as possible, of non-flammable
material and strong enough to carry the weight of the drive.

ABB ACS355 Specifications

General

Input Voltage	200 V to 240 V AC, 380 V to 480 V AC
Frequency	47 Hz to 63 Hz
Control Method	Scalar control
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short circuit
Communication Interfaces	Modbus RTU, CANopen
Enclosure Rating	IP20
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Storage Temperature	-40°C to +70°C (-40 to +158 °F)
Humidity	95% RH (non-condensing)
Altitude	Up to 1000 m (3280 ft) without derating
