130 Program features
 Example
The drive runs a conveyor line. It is speed controlled but the line tension also needs
to be taken into account: If the measured tension exceeds the tension setpoint, the
speed will be slightly decreased, and vice versa.
To accomplish the desired speed correction, the user
• activates the trimming function and connects the tension setpoint and the
measured tension to it.
• tunes the trimming to a suitable level.
Programmable analog inputs
The drive has two programmable analog voltage/current inputs. The inputs can be
inverted, filtered and the maximum and minimum values can be adjusted. The update
cycle for the analog input is 8 ms (12 ms cycle once per second). The cycle time is
shorter when information is transferred to the application program (8 ms -> 2 ms).
 Settings
Parameter Additional information
Group 11 REFERENCE SELECT AI as reference source
Group 13 ANALOG INPUTS Analog input processing
3001, 3021, 3022, 3107 AI loss supervision
Group 35 MOTOR TEMP MEAS AI in motor temperature measurement
Groups 40 PROCESS PID SET 1
…42 EXT / TRIM PID
AI as PID process control reference or actual value
source

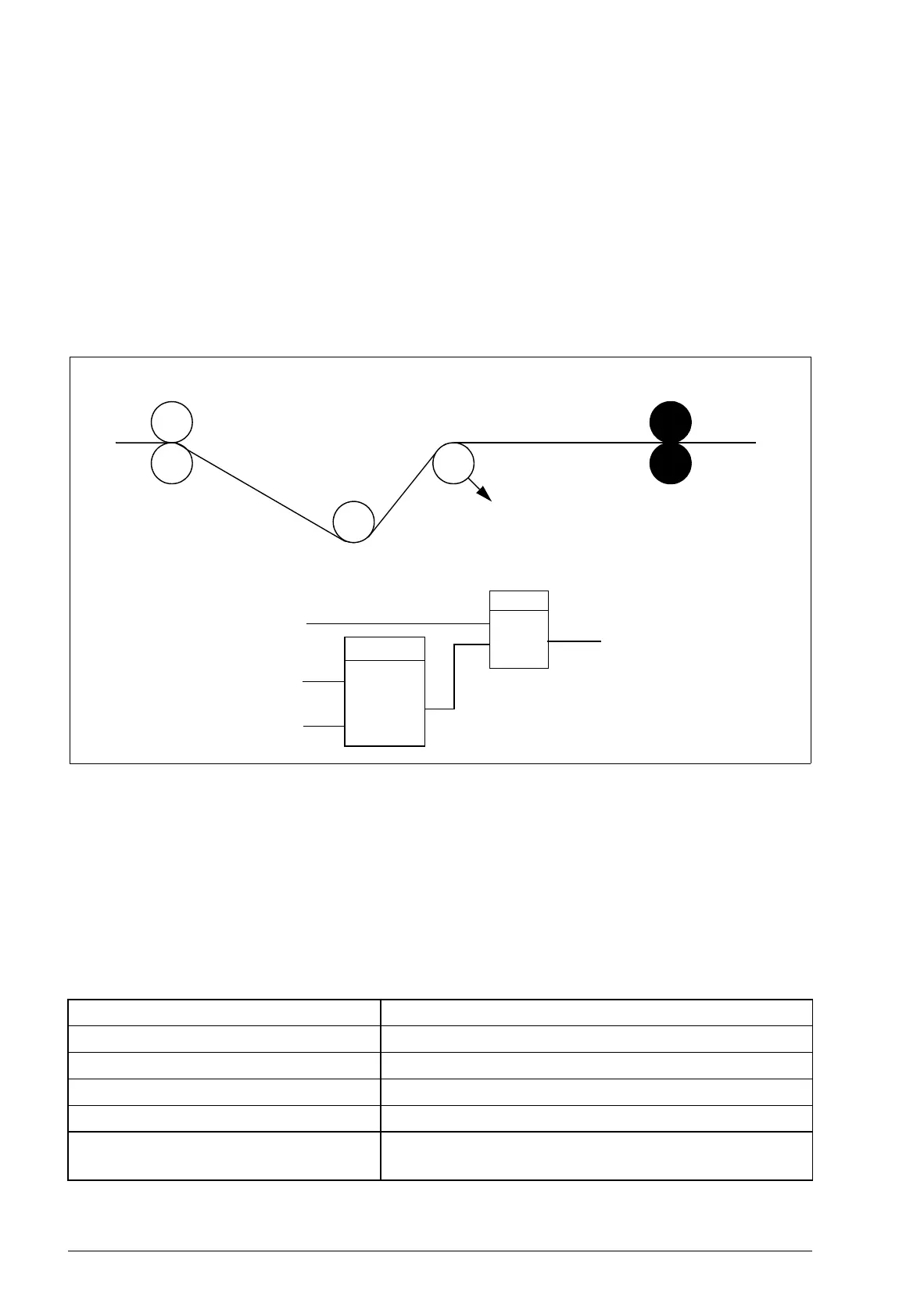

Add
Tension
measurement
Tension
setpoint
Trimmed speed
reference
PID
Speed controlled conveyor line
Simplified block diagram
Tension measurement
Drive rollers (pull)
Speed reference

ABB ACS355 Specifications

General

Input Voltage	200 V to 240 V AC, 380 V to 480 V AC
Frequency	47 Hz to 63 Hz
Control Method	Scalar control
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short circuit
Communication Interfaces	Modbus RTU, CANopen
Enclosure Rating	IP20
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Storage Temperature	-40°C to +70°C (-40 to +158 °F)
Humidity	95% RH (non-condensing)
Altitude	Up to 1000 m (3280 ft) without derating
