HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
1-5

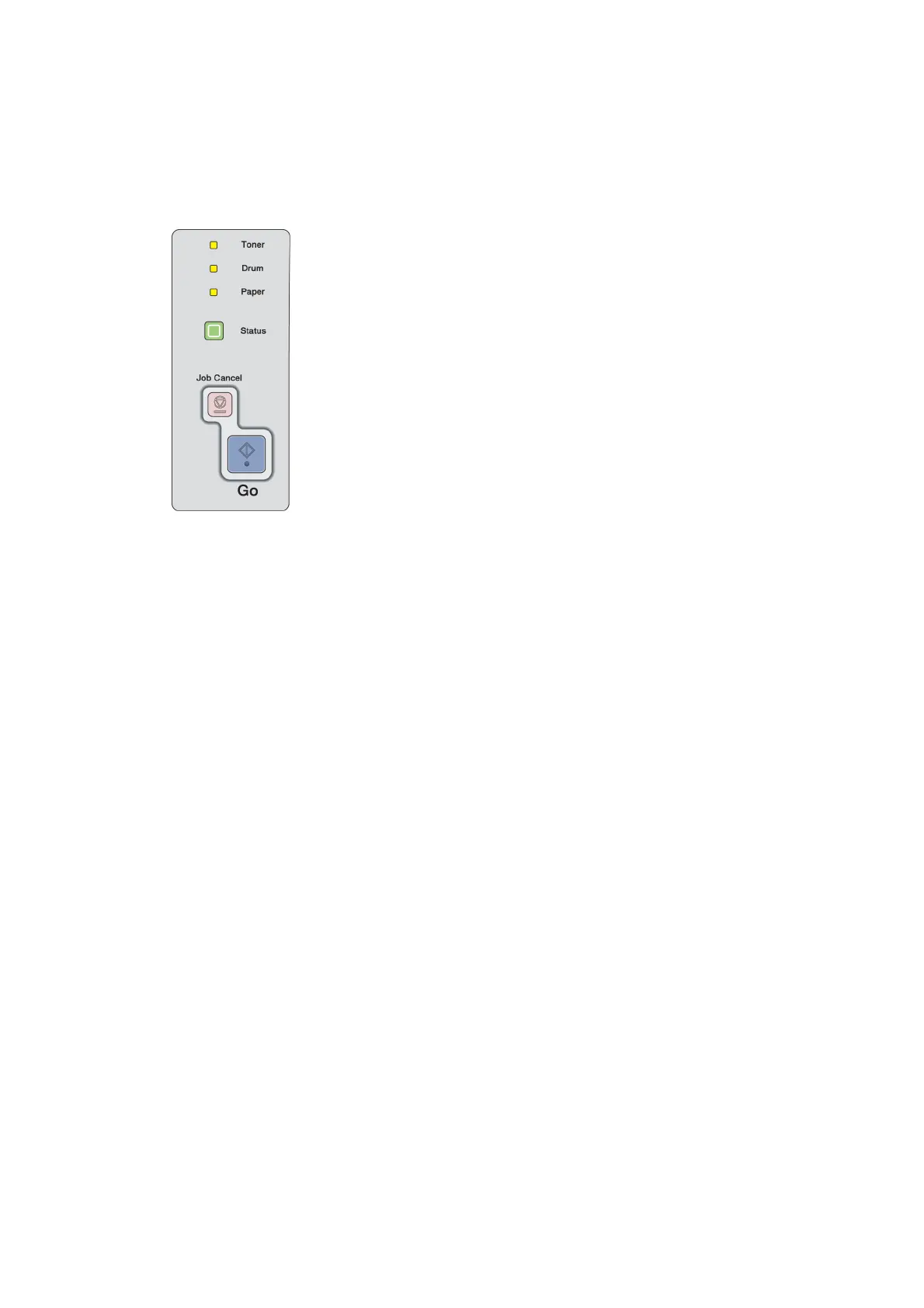

2.2 Control Panel
(HL-5240/5250DN)
There are the four Light Emitting Diodes (LEDs) (Toner, Drum, Paper and Status) and two
control buttons (Go and Job Cancel) on the control panel.
Fig. 1-5
1. Toner
LED indicates when the Toner is low or at the end of its life.
2. Drum
LED indicates when the Drum is nearing the end of its life.
3. Paper
LED indicates when the paper tray is empty or there is a paper
jam.
4. Status
LED will flash and change color depending on the printer status.
5. Job Cancel button
will stops and cancels the print operation in progress.
6. Go button
Wake-up / Error recovery / Form feed / Reprint
