HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-15
7. DISASSEMBLY PROCEDURE

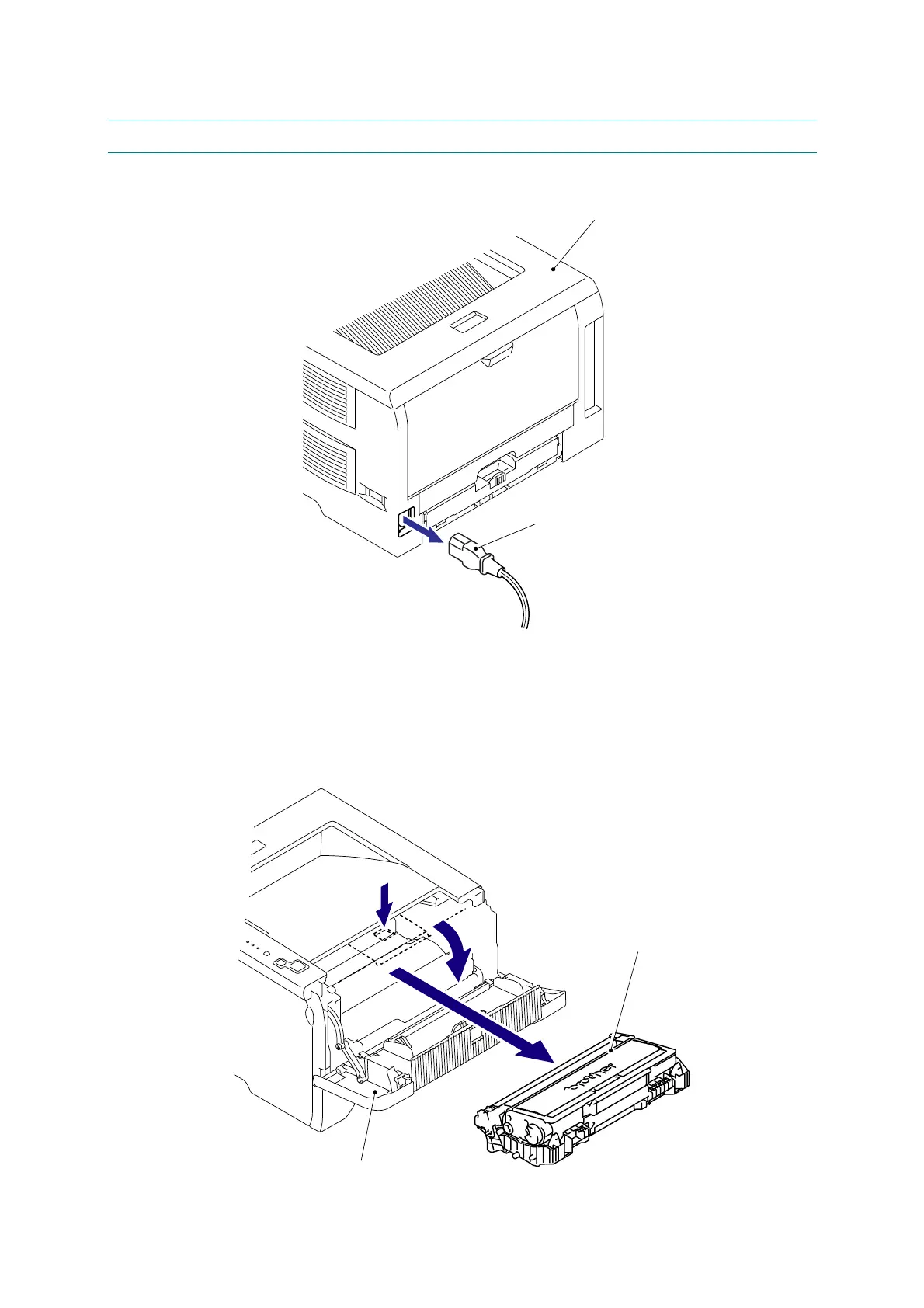

7.1 AC Cord
(1) Disconnect the AC cord from the Printer.
Fig. 5-2
7.2 Drum/Toner ASSY
(1) Press the front cover release button.
(2) Open the Front cover.
(3) Remove the Drum/toner ASSY.
Fig. 5-3
A
C cord
Front cover
Drum/toner ASSY
1
2
3
Printer
<Back side>
<Front side>
