HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-85

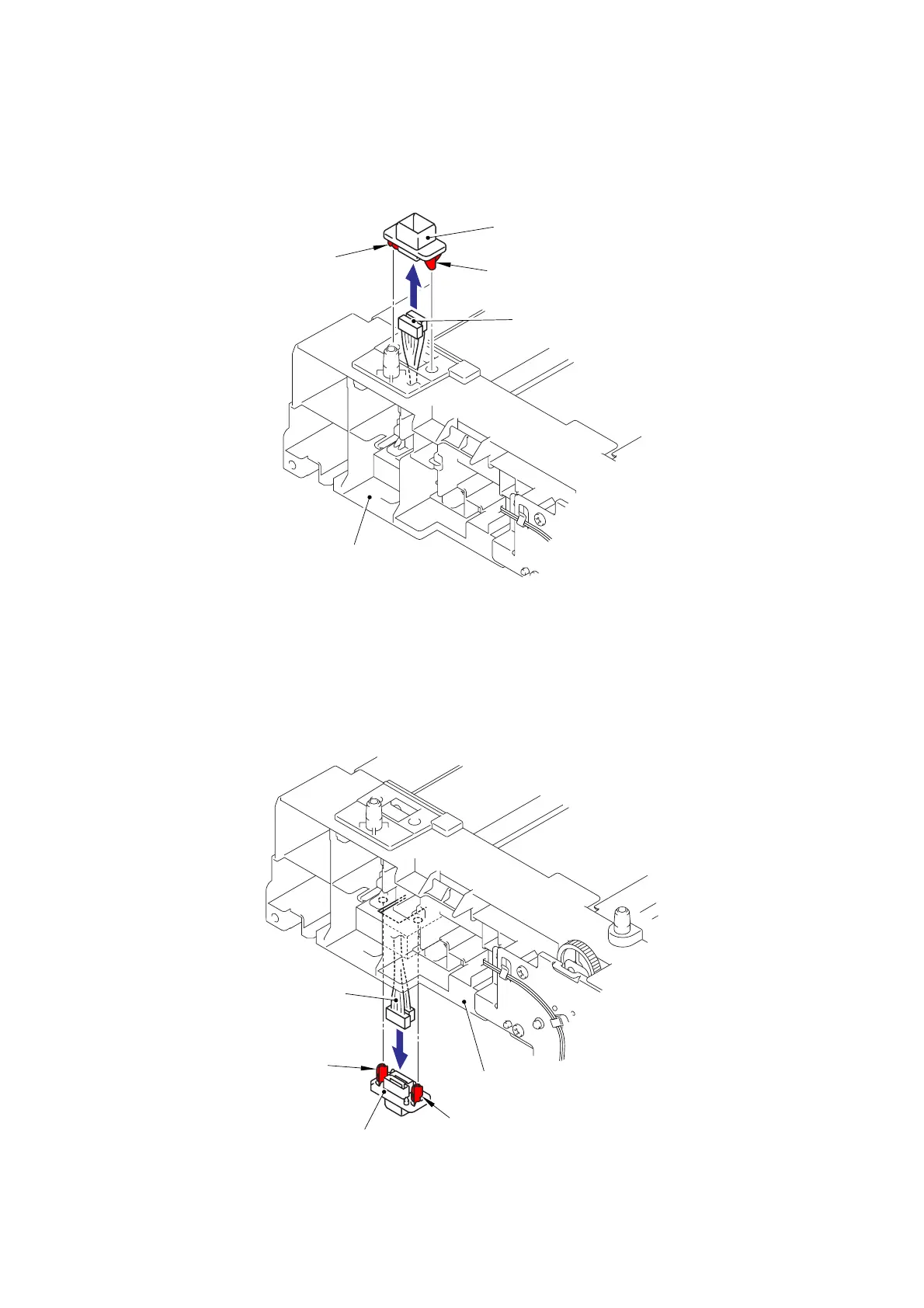

8.7 Connector: 55533-1219
(1) Remove the LT sensor harness ASSY 1 from the Connector: 55533-1219.
(2) Disconnect the Connector: 55533-1219 while pressing the Hooks inwards.
Fig. 5-139
8.8 Connector: 54702-1219
(1) Remove the LT sensor harness ASSY 2 from the Connector: 54702-1219.
(2) Disconnect the Connector: 54702-1219 while pressing the Hooks inwards.
Fig. 5-140
Connector: 55533-1219
Hook
Hook
LT sensor harness ASSY 1
LT frame L
LT sensor harness ASSY 2
LT frame L
Connector: 54702-1219
Hook
Hook
