CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-46

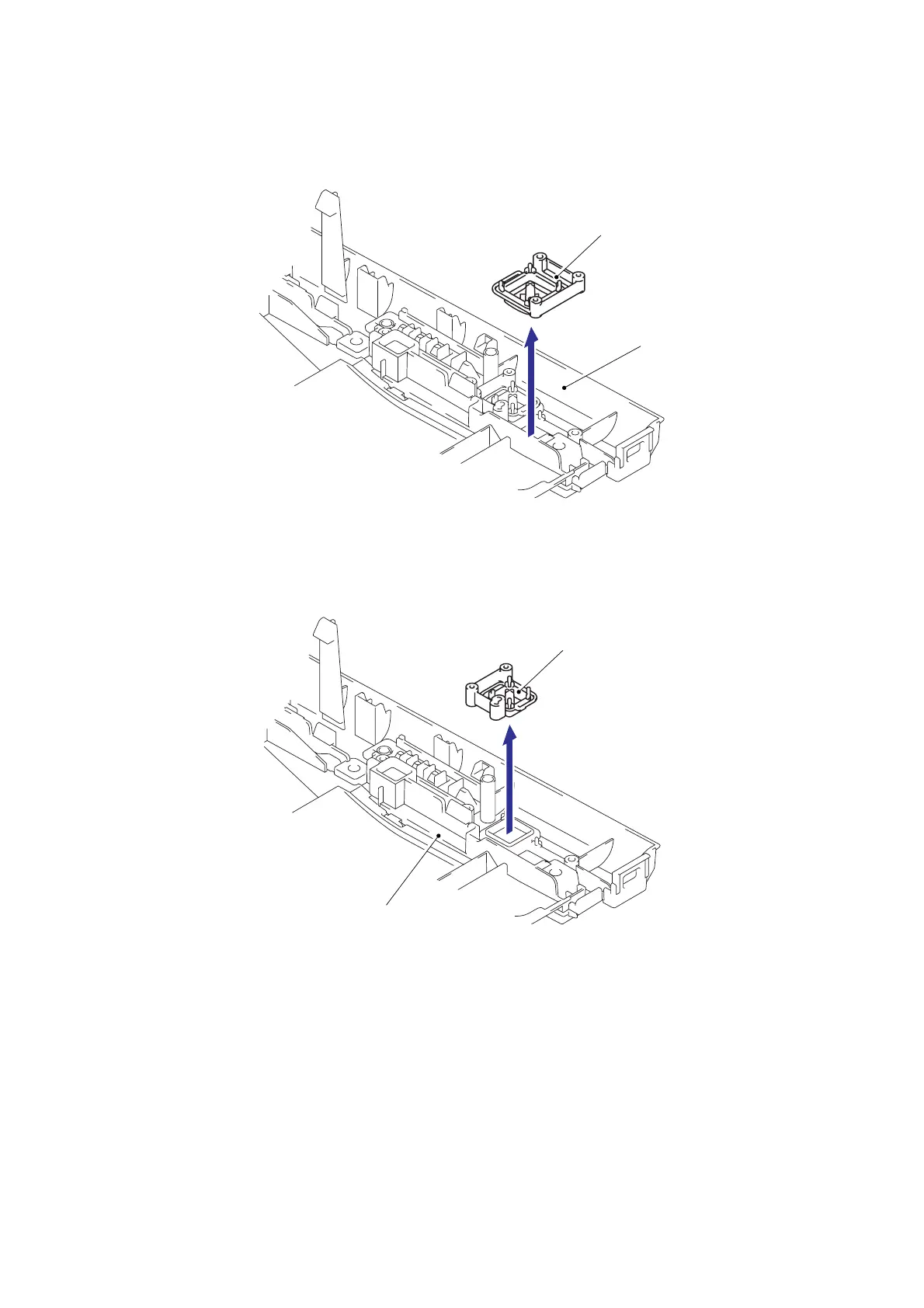

7.27-3 SW Key A/B
(1) Remove the SW key A from the Top cover printed ASSY.
Fig. 5-64
(2) Remove the SW key B from the Top cover printed ASSY.
Fig. 5-65
Top cover printed ASSY
SW key A
Top cover printed ASSY
SW key B
