Brother HL-5280DW Service Manual

HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-55

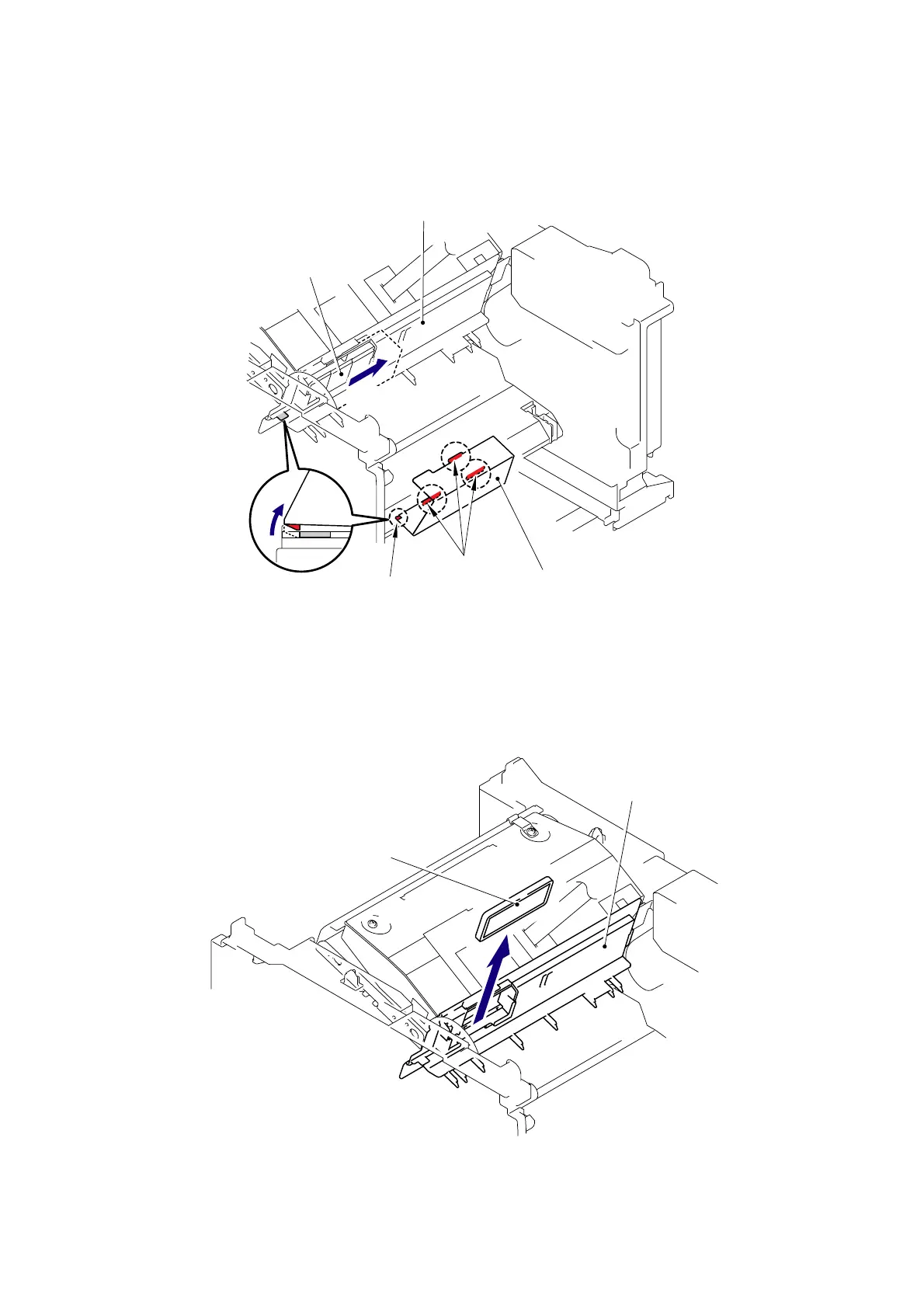

7.29 Filter
(1) Slide the Sub duct to the direction of 1b while pressing the three Hooks and remove the
Sub duct from the Air duct.
Fig. 5-83
(2) Remove the Filter from the Air duct.
NOTE:
The filter is dirt. Be careful when disassembling or assembling it.
Fig. 5-84
Sub duct
A
ir duct
Hooks
Filter
A
ir duct
Filter
1a
1b
Hook
<Back side>
