Brother HL-5280DW Service Manual

CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-72

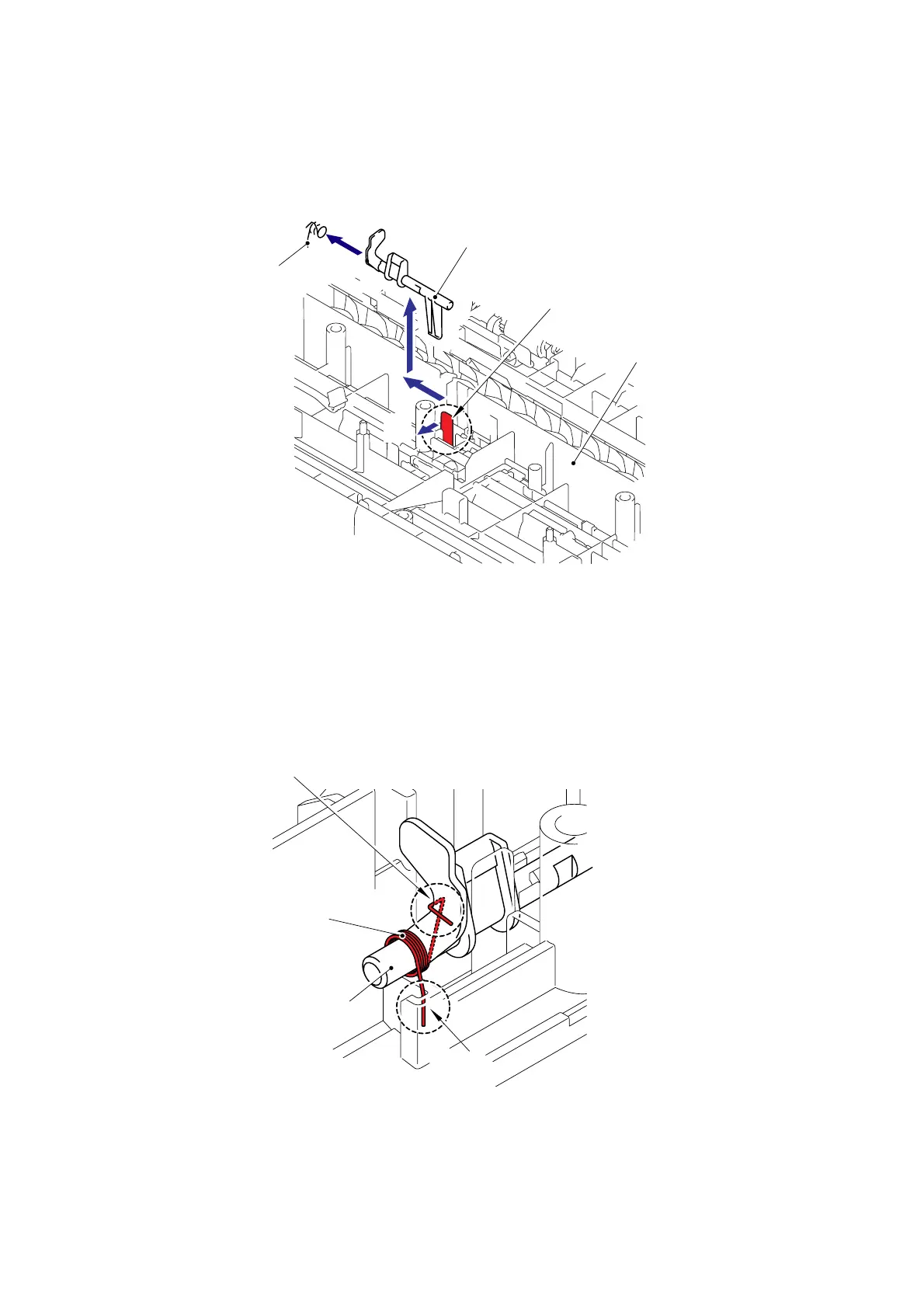

7.40 Regist Actuator Front/Regist Actuator Spring
(1) Slide the Regist actuator front to the direction of 1b while pressing the Hook to the
direction of 1a and pull up the Regist actuator front to remove. Then, remove the Regist
actuator spring from the Regist actuator front.
Fig. 5-116
Assembling Note:
When assembling the Regist actuator spring, ensure that its direction is correct referring to the
figure below.
Fig. 5-117
Regist actuator front
Hook
Paper feed unit
1b
1a
1c
Regist actuator spring
1d
Regist actuator front
Regist actuator spring
Hook
Hook
