HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-53
7.28-5 LCD Holder ASSY

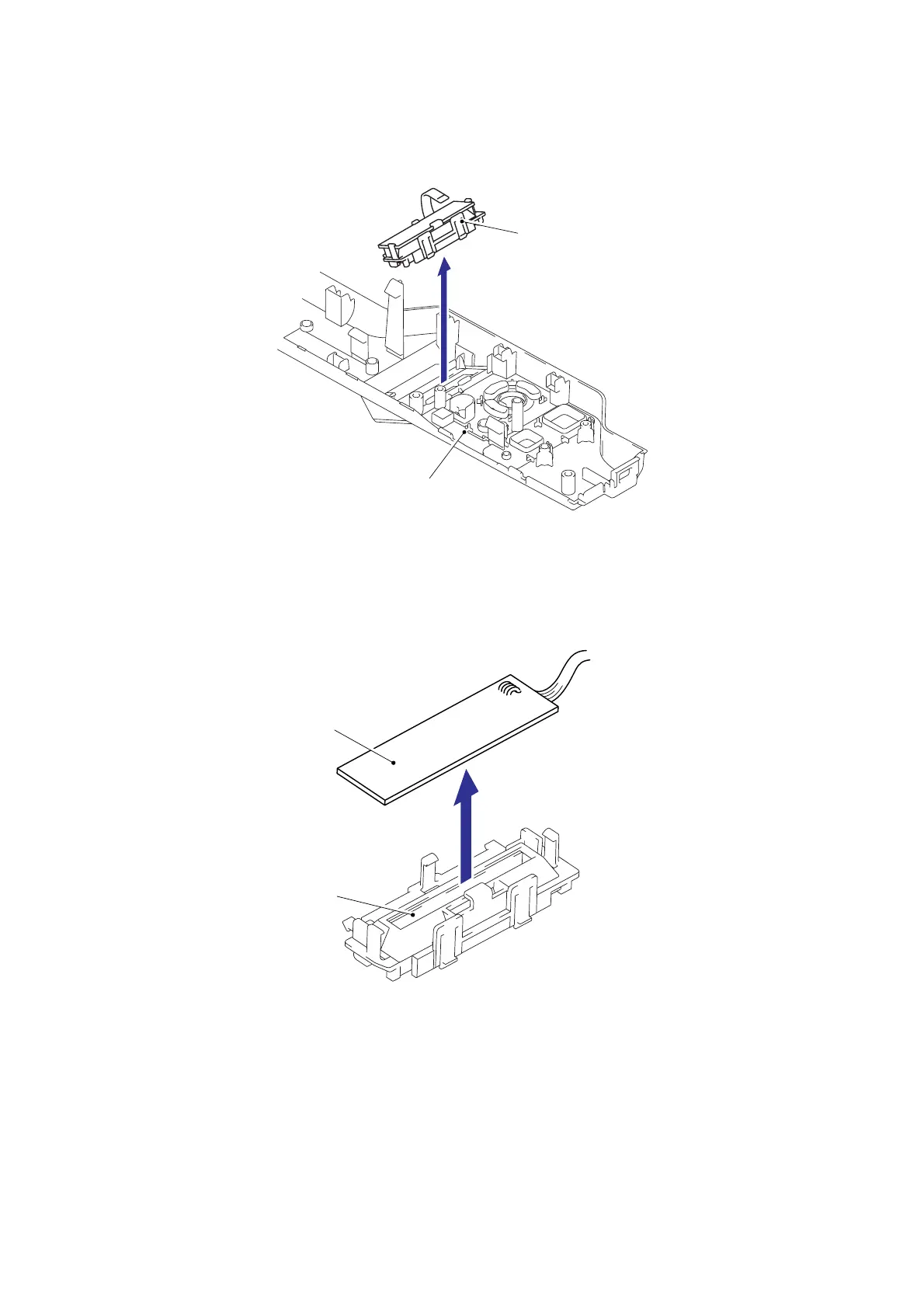

(1) Remove the LCD holder from the Top cover 2 printed ASSY.
Fig. 5-79
(2) Remove the Back light PCB ASSY from the LCD holder.
Fig. 5-80
Top cover 2 printed ASSY
LCD holder
LCD holder
Back light PCB ASSY
