HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-95
8.15 LT Sensor PCB ASSY

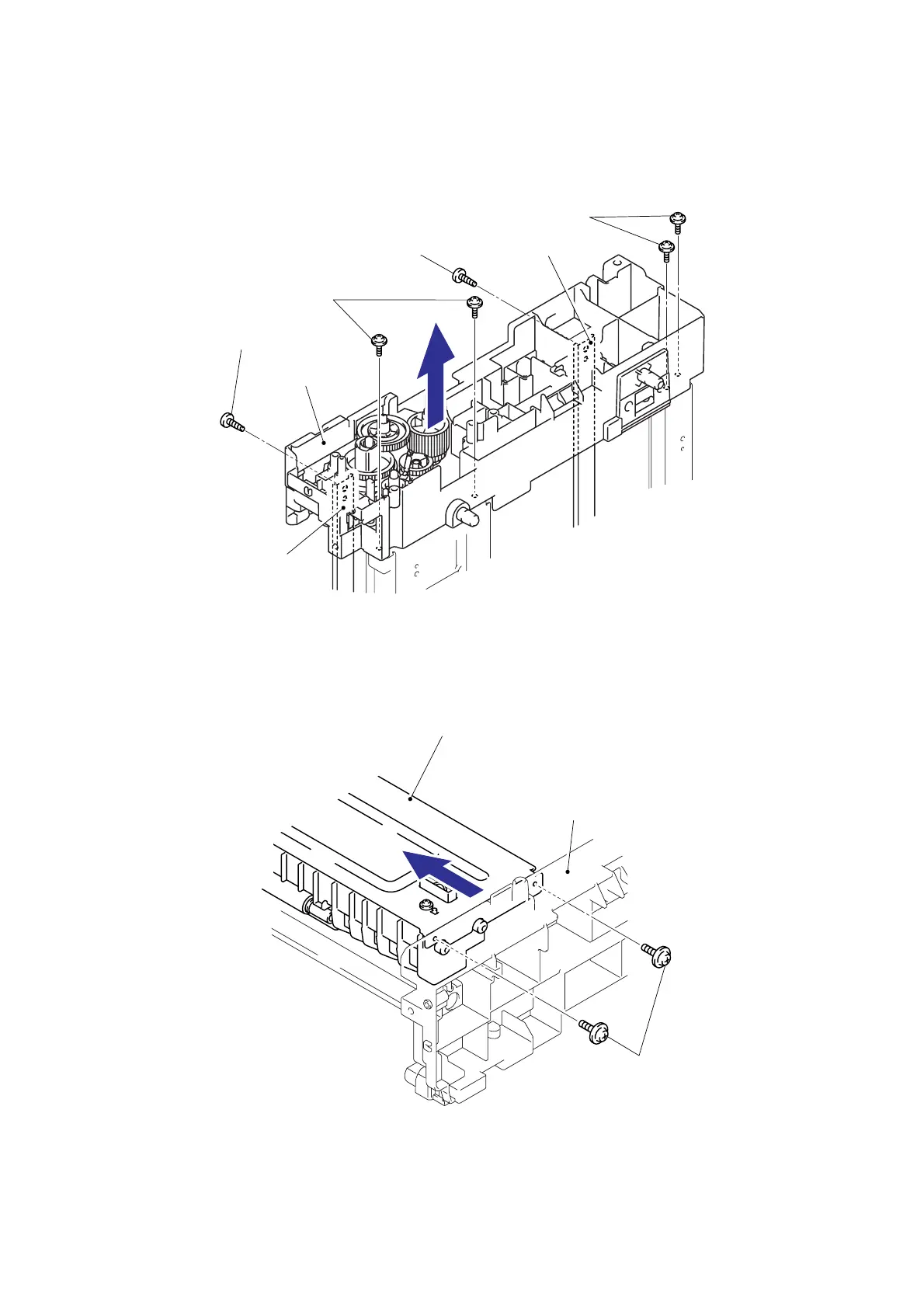

(1) Remove the two bind B M4x12 Taptite screws.
(2) Remove the four cup S M3x6 Taptite SR screws, and then remove the LT frame L.
Fig. 5-158
(3) Remove the two cup S M3x6 Taptite SR screws, and then remove the LT paper feed
frame.
Fig. 5-159
Taptite, cup S M3x6 SR
LT frame R
LT frame L
Taptite, cup S M3x6 SR
Taptite, cup S M3x6 SR
Taptite, bind B M4x12
Taptite, bind B M4x12
Under bar
Under bar
LT paper feed frame
