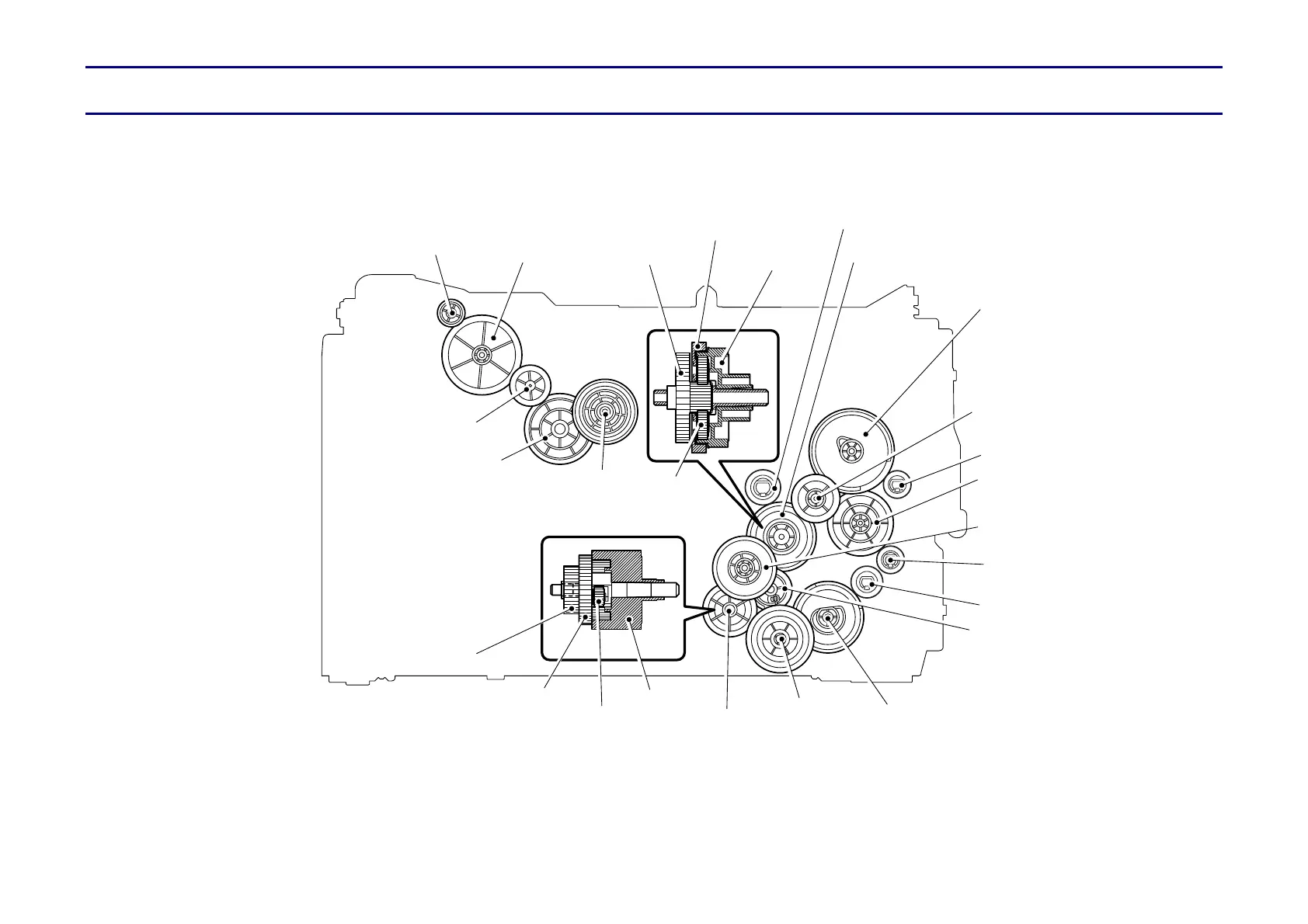

APPENDIX 5 GEAR LAYOUT DRAWING
1. HL-5240
LM5016001
EJECTOR
GEAR 16
LM5475001
EJECTOR
GEAR 44SX
LM5055001
REGISTER
GEAR 159/43
INTERNAL
LM5461001
REGISTER
DIFFERENTIAL
LM5065001
MP GEAR 55/60
SECTOR
LM5019001
EJECTOR
GEAR 22
LM5048001
FUSER GEAR
39R H/R DRIVE
LM5042001
FUSER GEAR
17/63R
PENDULUM
LM5054001
REGISTOR
GEAR
19 PLANETARY
LM5056001
FEEDER GEAR 21/31
PENDULUM
LM5057001
FEEDER GEAR 48
LM5050001
DX GEAR 27/68 L
LM5023001
P/P GEAR 29
CLUTCH CAM
LM5071001
T1 GEAR 50/45
SECTOR
LM5070001
T1 GEAR 31/47
LM5460001
P/P
DIFFERENTIAL
LM5028001
P/P GEAR
147/37
INTERNAL
LM5027001
P/P GEAR 15
PLANETARY
LM5026001
P/P GEAR
32CARRIER
LM5025001
P/P GEAR 17
CENTER
LM5053001
REGISTER
GEAR 48
CARRIER
LM5052001
REGISTER
GEAR 21
CENTER
LM5103001
GEAR 20
LM5102001
GEAR 17 (black)
LM5104001
GEAR 17 (white)
LM5101001
GEAR 23
