HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-81
8.2 LT Front Cover ASSY

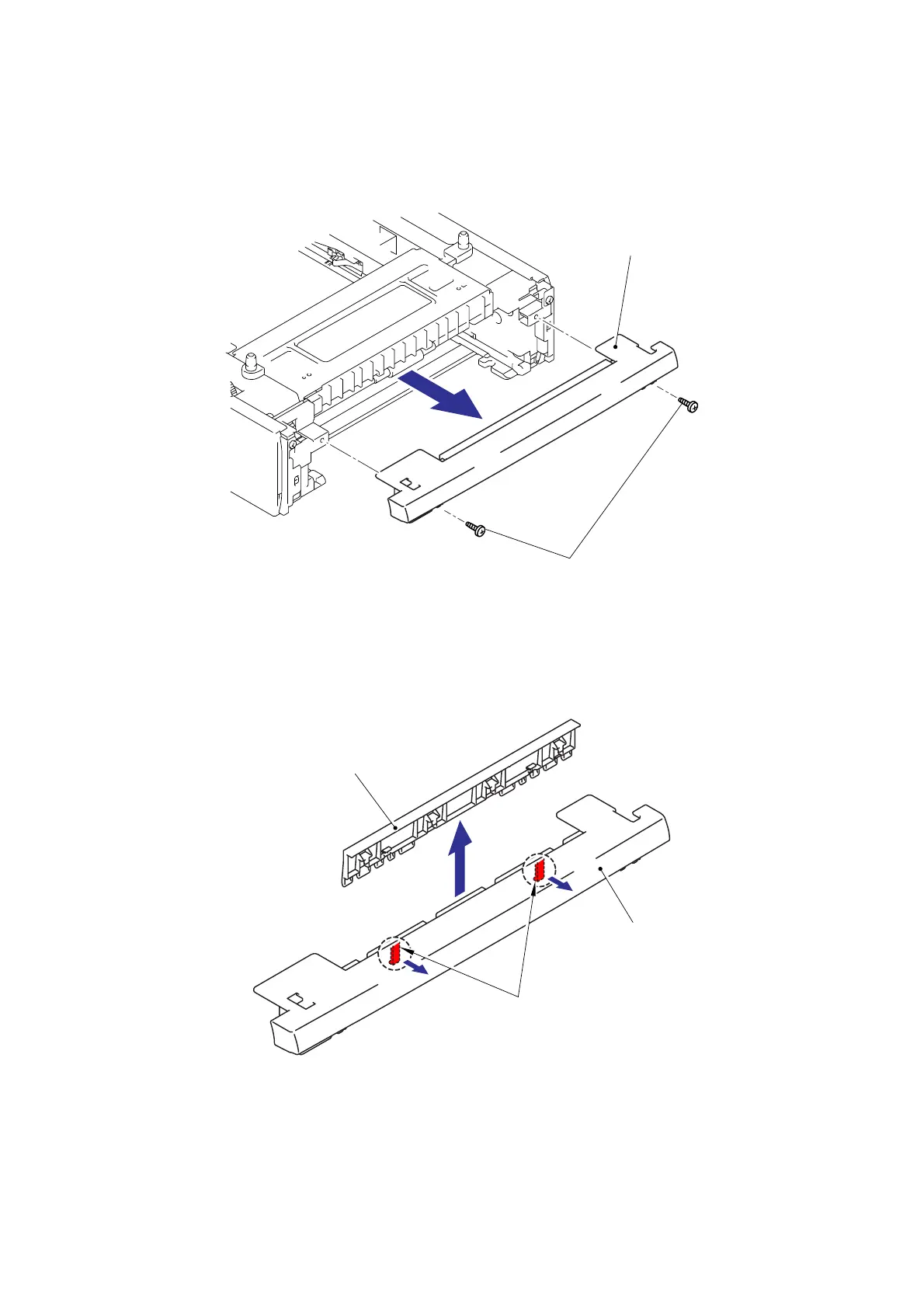

(1) Remove the two bind B M4x12 Taptite screws.
(2) Remove the LT front cover ASSY.
Fig. 5-133
(3) Remove the LT front paper guide from the LT front cover ASSY while pulling the two
hooks inwards.
Fig. 5-134
LT front cover ASSY
Taptite, bind B M4x12
LT front cover ASSY
LT front paper guide
Hooks
