Brother HL-5280DW Service Manual

CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-38
(2) Remove the bind B M3x10 Taptite screw.
(3) Remove the MP solenoid ASSY, Solenoid release spring P/R and MP solenoid lever.

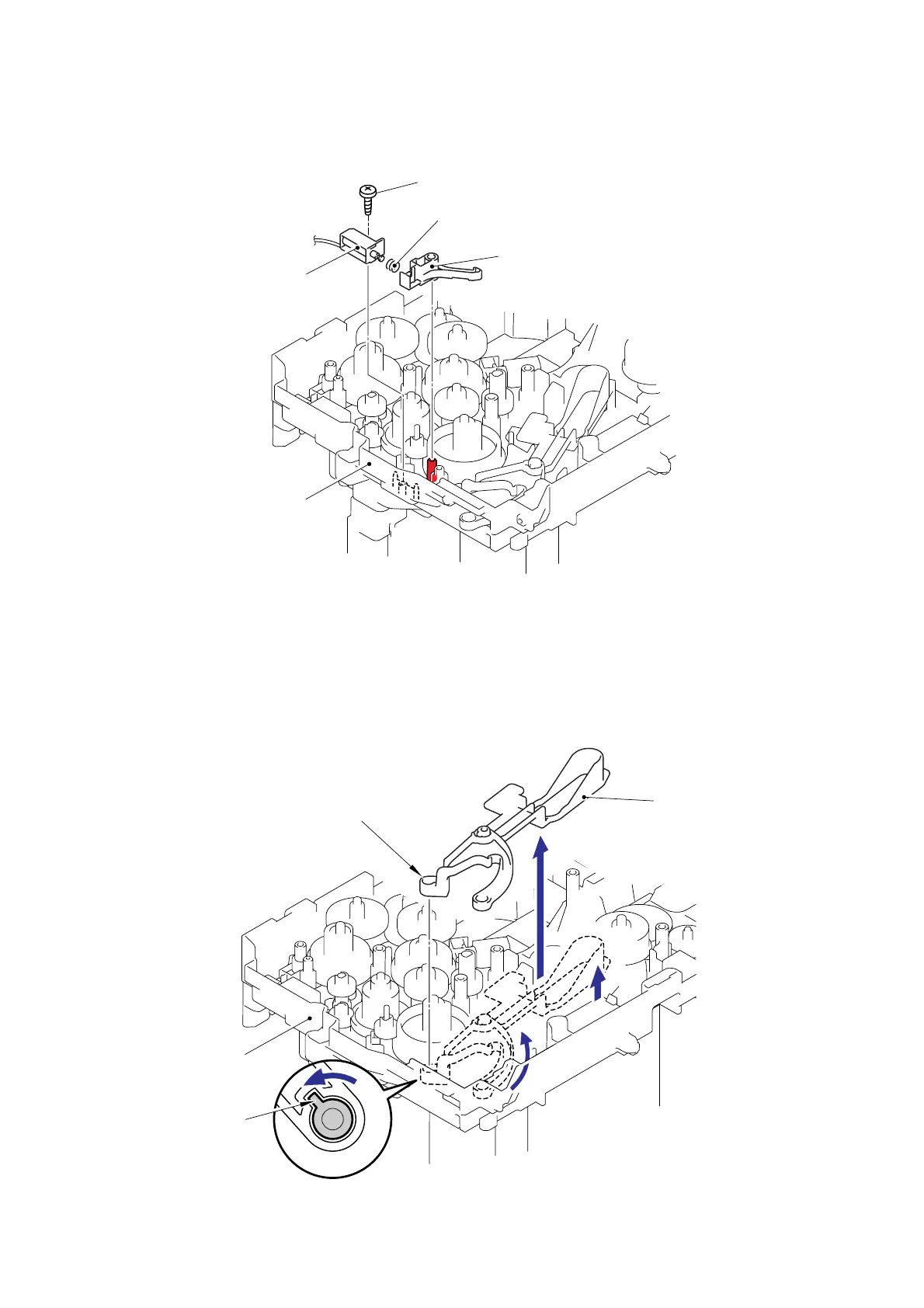

Fig. 5-47
7.18 Drive Release Link
(1) Lift up the back end of the Drive release cam slightly and remove the Drive release cam
from the Frame L.
(2) Turn the Drive release link to the direction of the arrow 2 until the groove of the Drive
release link is aligned with the guide of the boss as shown in the figure below.
(3) Remove the Drive release cam.
Fig. 5-48
Drive release cam
Drive release link
Frame L
2
1
3
MP solenoid ASSY
Solenoid release spring P/R
MP solenoid lever
Frame L
Taptite, bind B M3x10
Guide
