Brother HL-5280DW Service Manual

CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-62

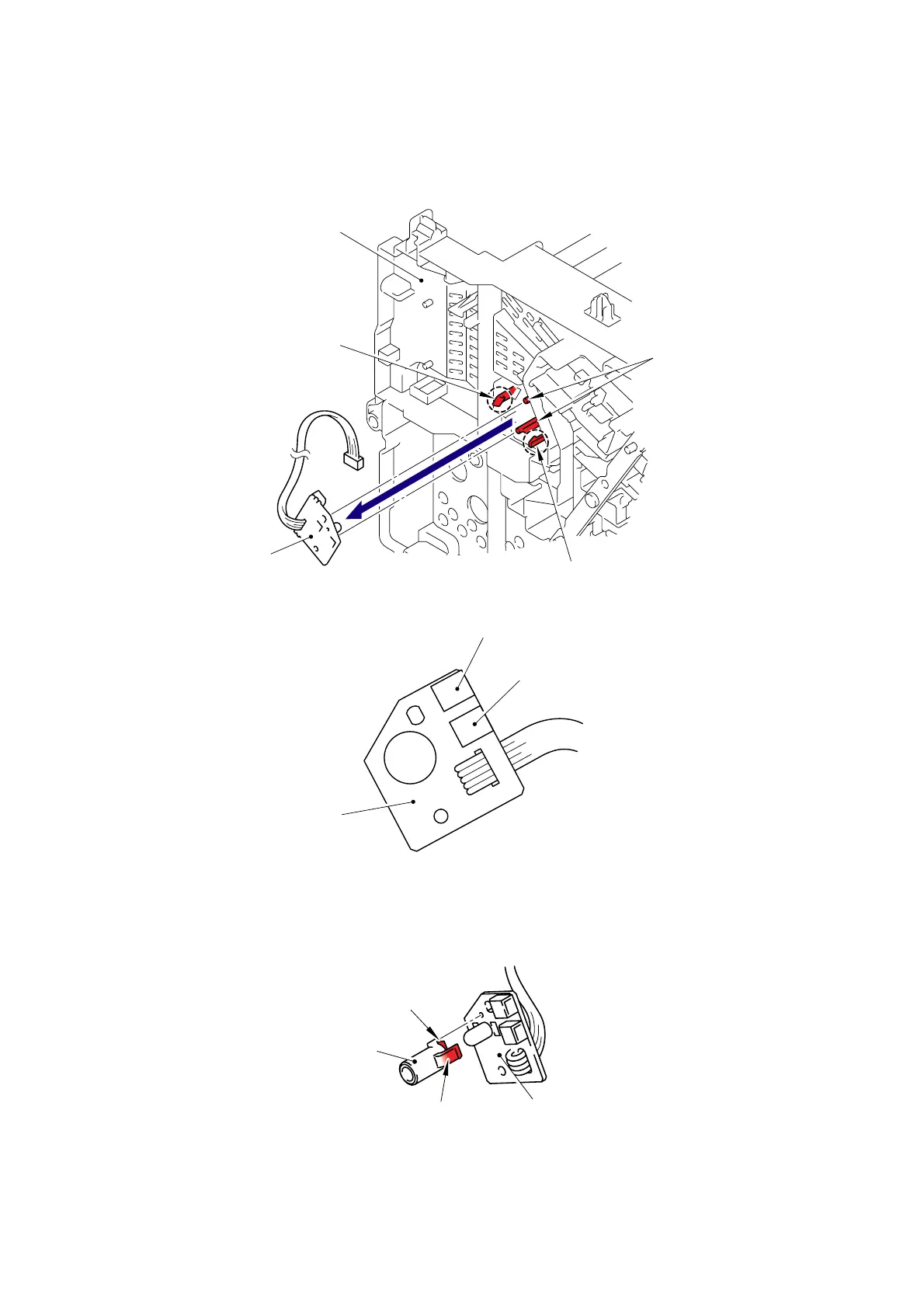

7.33 Toner LED PCB Unit ASSY
(1) Release the two Hooks to remove the Toner LED PCB unit ASSY from the Frame R.
(2) Disconnect the two connectors from the Toner LED PCB.
Fig. 5-96
(3) Release the two Hooks to remove the LED holder from the Toner LED PCB.
Fig. 5-97
Toner LED PCB unit ASSY
Frame R
Hook
Hook
Pins
Hook
Toner LED PCB
LED holder
Toner LED PCB
Fan motor 60 unit LV connector
Fan motor 60 unit connector
<Right side>
Hook
