7.28-4 SW Key A/B/C /Set Key Printed ASSY

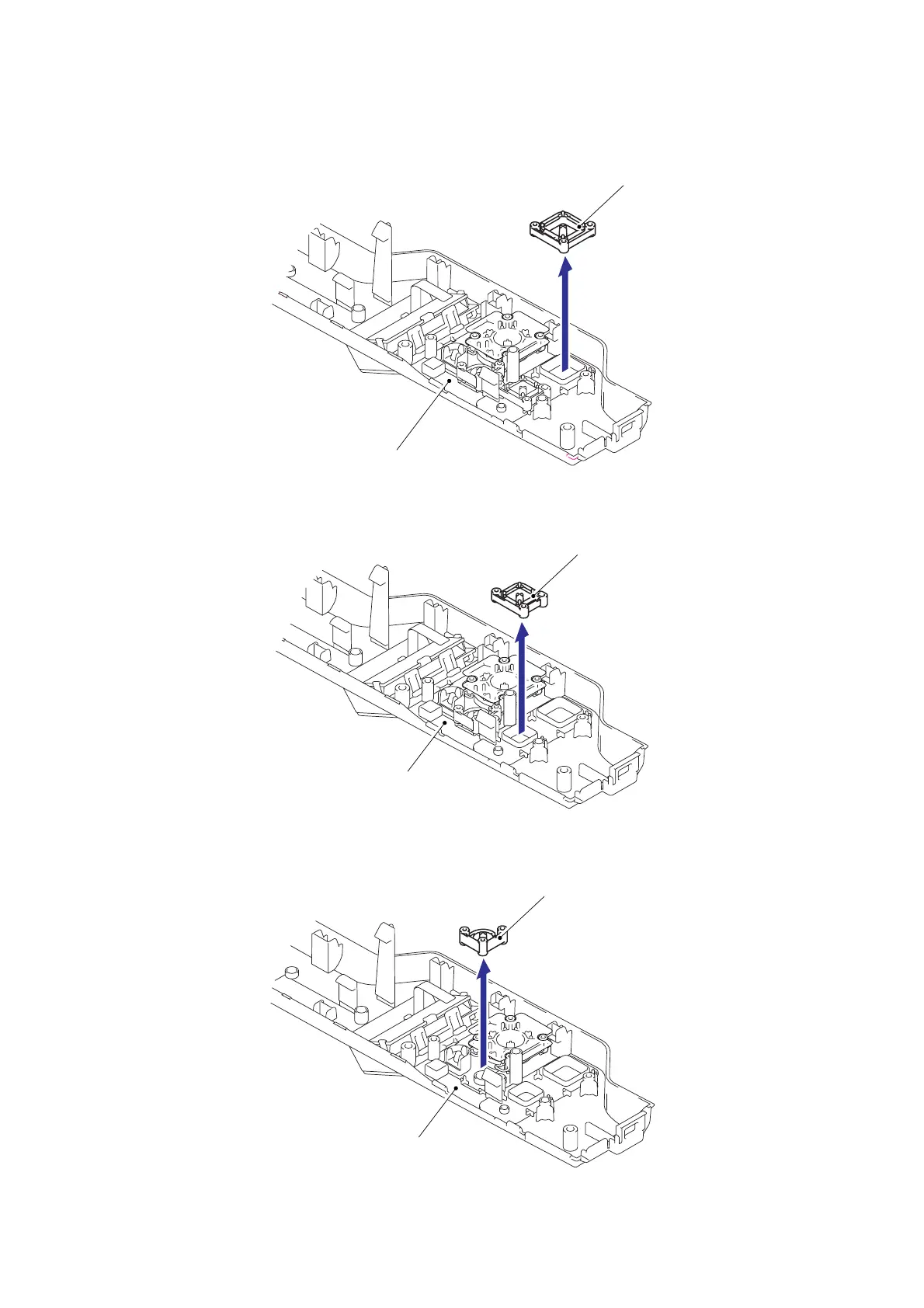

(1) Remove the SW key A from the Top cover 2 printed ASSY.
Fig. 5-73
(2) Remove the SW key B from the Top cover 2 printed ASSY.
Fig. 5-74
(3) Remove the SW key C from the Top cover 2 printed ASSY.
Fig. 5-75
Top cover 2 printed ASSY
SW key A
SW key B
Top cover 2 printed ASSY
SW key C
Top cover 2 printed ASSY
