Brother HL-5280DW Service Manual

CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-70

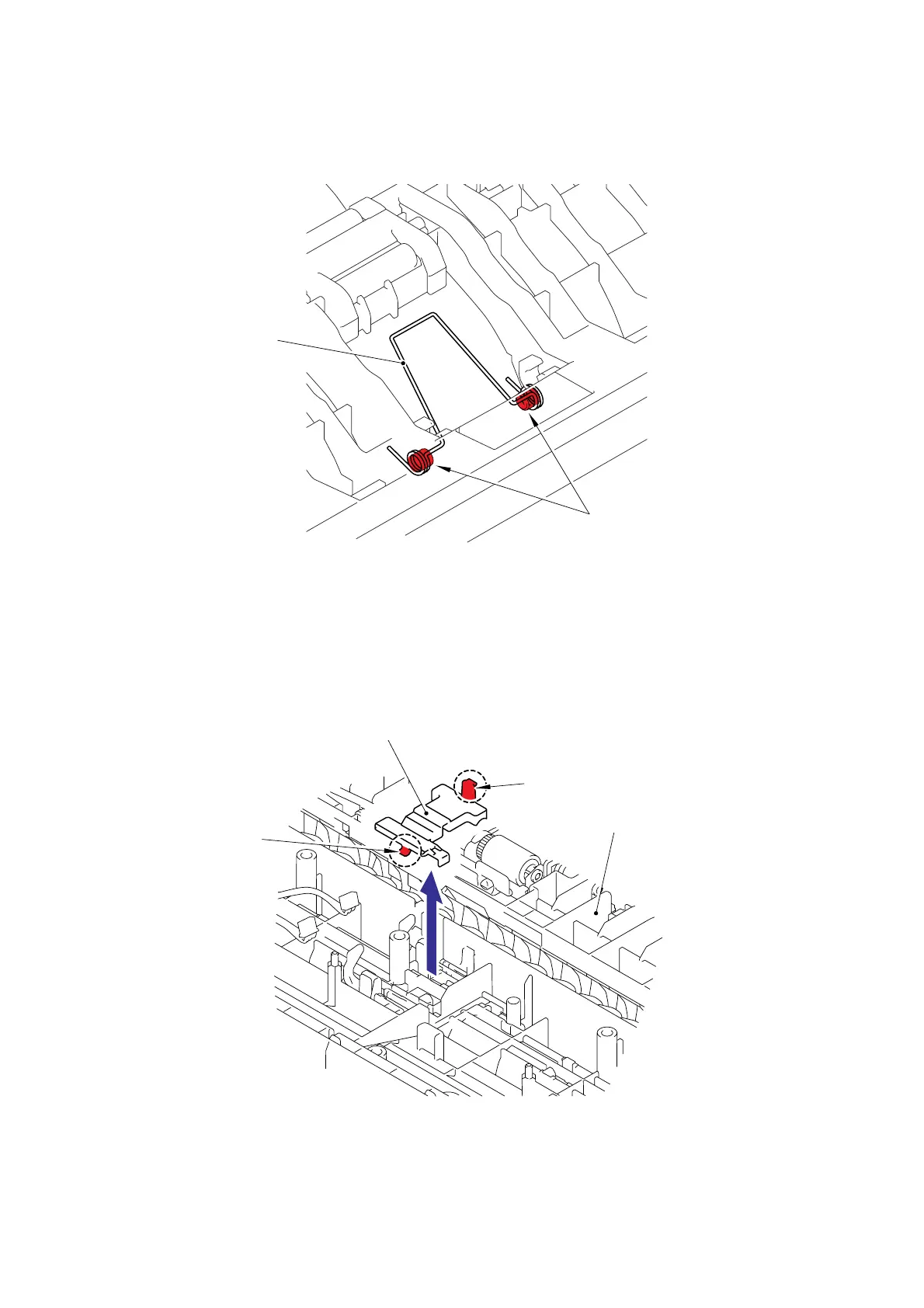

Assembling Note:
When assembling the MP separation spring, ensure that its direction is correct referring to the
figure below.
Fig. 5-112
7.39 Regist Actuator Rear/Regist Actuator Spring
(1) Turn the Paper feed unit upside down.
(2) Release the Hook A of the Actuator cover to pull up the Actuator cover to remove.
Fig. 5-113
A
ctuator cove
r
Paper feed unit
Hook A
Hook B
Bosses
MP separation spring
