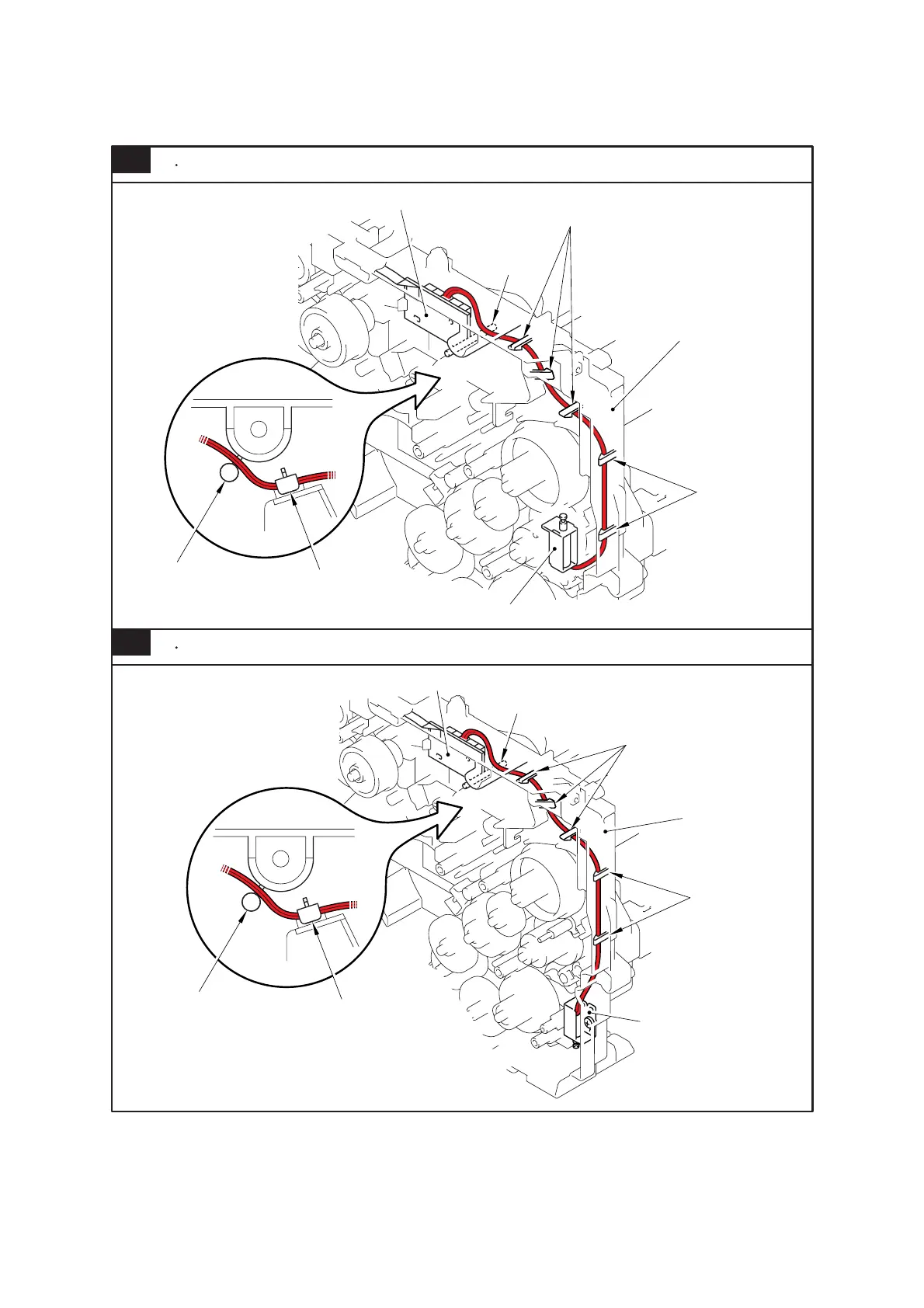

HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-7
7
T1 solenoid ASSY
Relay front PCB ASSY
Hooks
Hook
Pin
Pin
Hooks
T1 solenoid ASSY
Frame L
6
MP solenoid ASSY
Relay front PCB ASSY
Hooks
Hooks
MP solenoid ASSY
Frame L
Hook
Pin
Pin
