Brother HL-5280DW Service Manual

CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-94

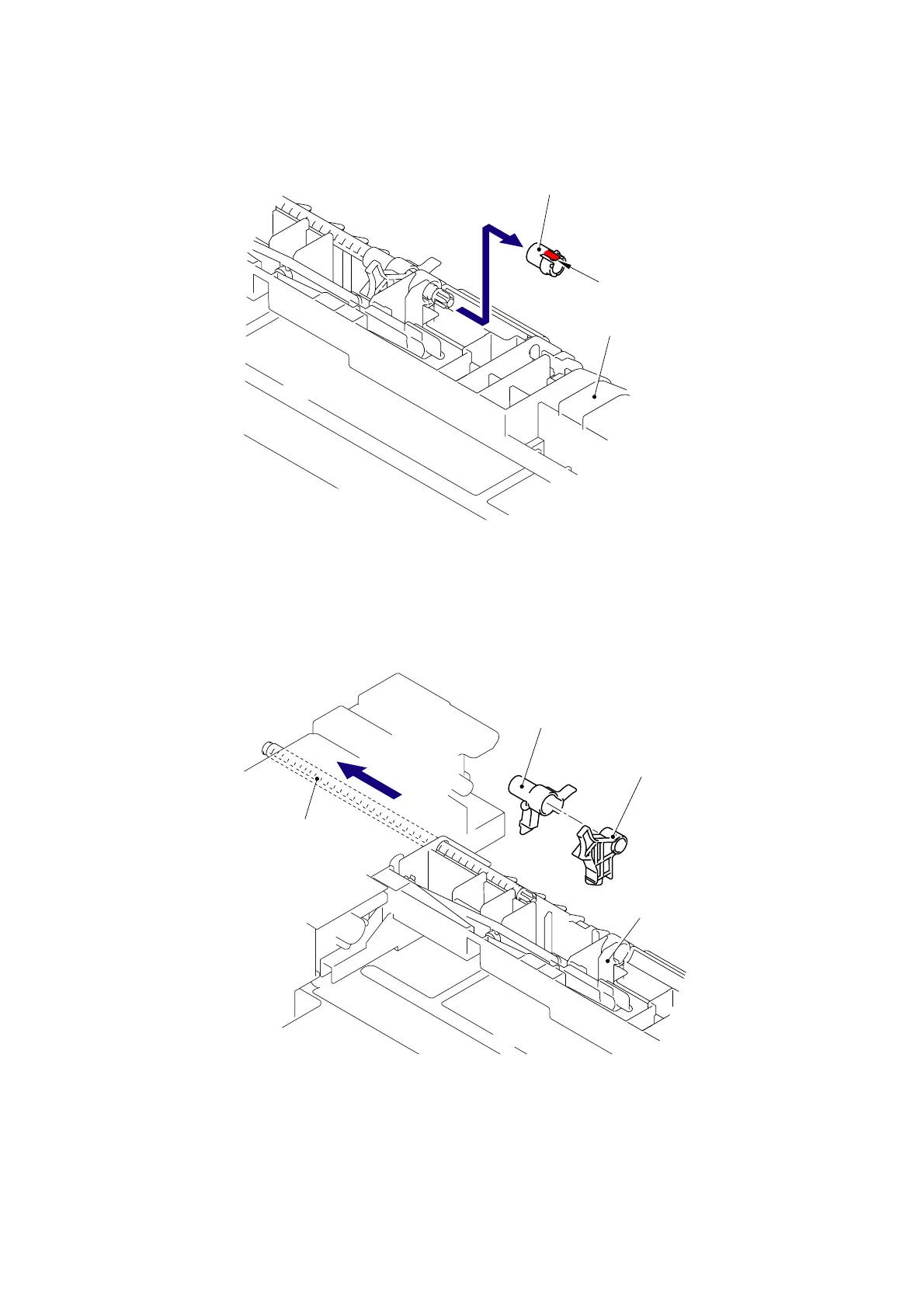

8.14 PE Actuator , Edge Actuator
(1) Release the Hook and remove the Separation R shaft bearing.
Fig. 5-156
(2) Pull out the Separation roller drive shaft to the direction of the arrow and remove the Edge
actuator and PE actuator.
Fig. 5-157
PE actuator
Edge actuator
Separation roller drive shaft
LT paper feed frame
Separation R shaft bearing
LT paper feed frame
Hook
