Brother HL-5280DW Service Manual

CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-20

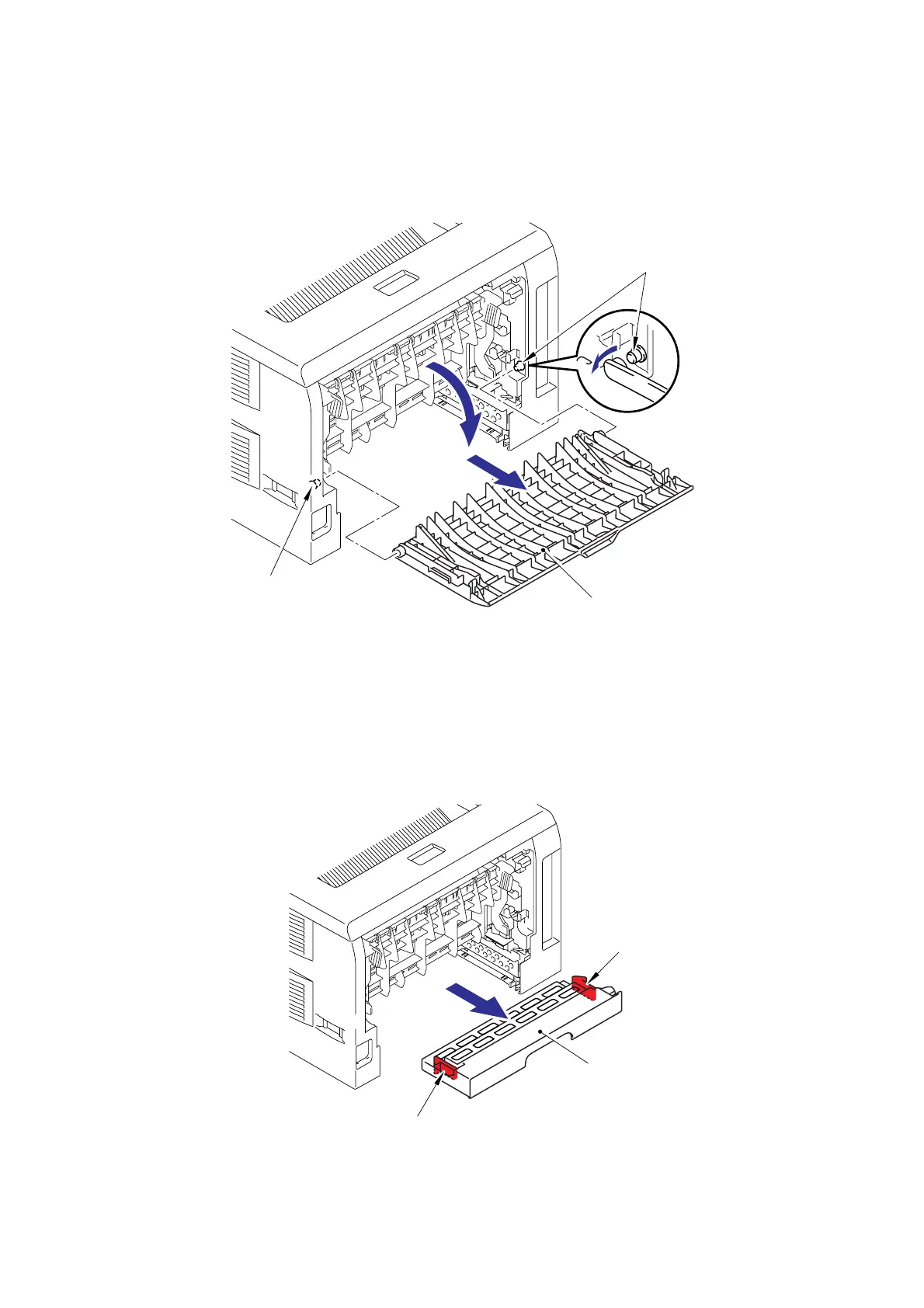

7.5 Back Cover
(1) Open the Back cover.
(2) Remove the Arms of the Back cover from the Pins.
(3) Remove the Back cover.
Fig. 5-11
7.6 DX Blank Cover (For HL-5240)
(1) Push the Hooks on both sides of the DX blank cover inwards to release them, and remove
the DX blank cover.
Fig. 5-12
Back cover
Pin
Pin
1
2
3
DX blank cover
Hook
Hook
