CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-78

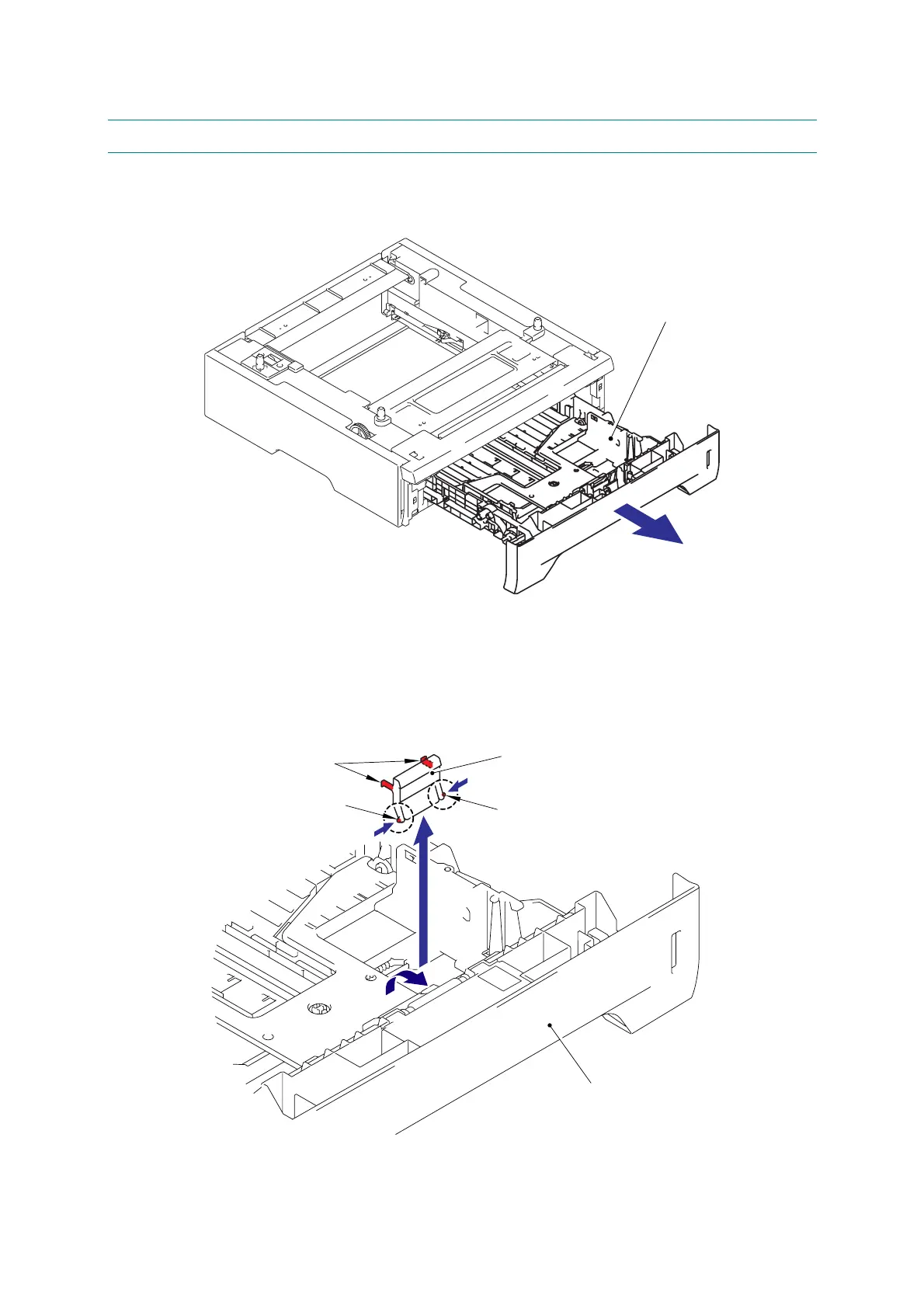

8. DISASSEMBLY PROCEDURE (LT-5300)
8.1 Paper Tray
(1) Pull out the Paper tray from the LT-5300.
Fig. 5-127
(2) Pull up the back side of the Separation pad ASSY.
(3) Push the Hooks provided on both sides of the Separation pad ASSY inwards.
(4) Pull up the Separation pad ASSY.
Fig. 5-128
Paper tray
Separation pad ASSY
Paper tray
Hooks
3
3
2
4
Hook
Hook
To Next Page
