HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
3-13
2.2 Procedures to Replace Periodical Replacement Parts
2.2.1 Fuser unit and laser unit
< Uninstalling Procedure >

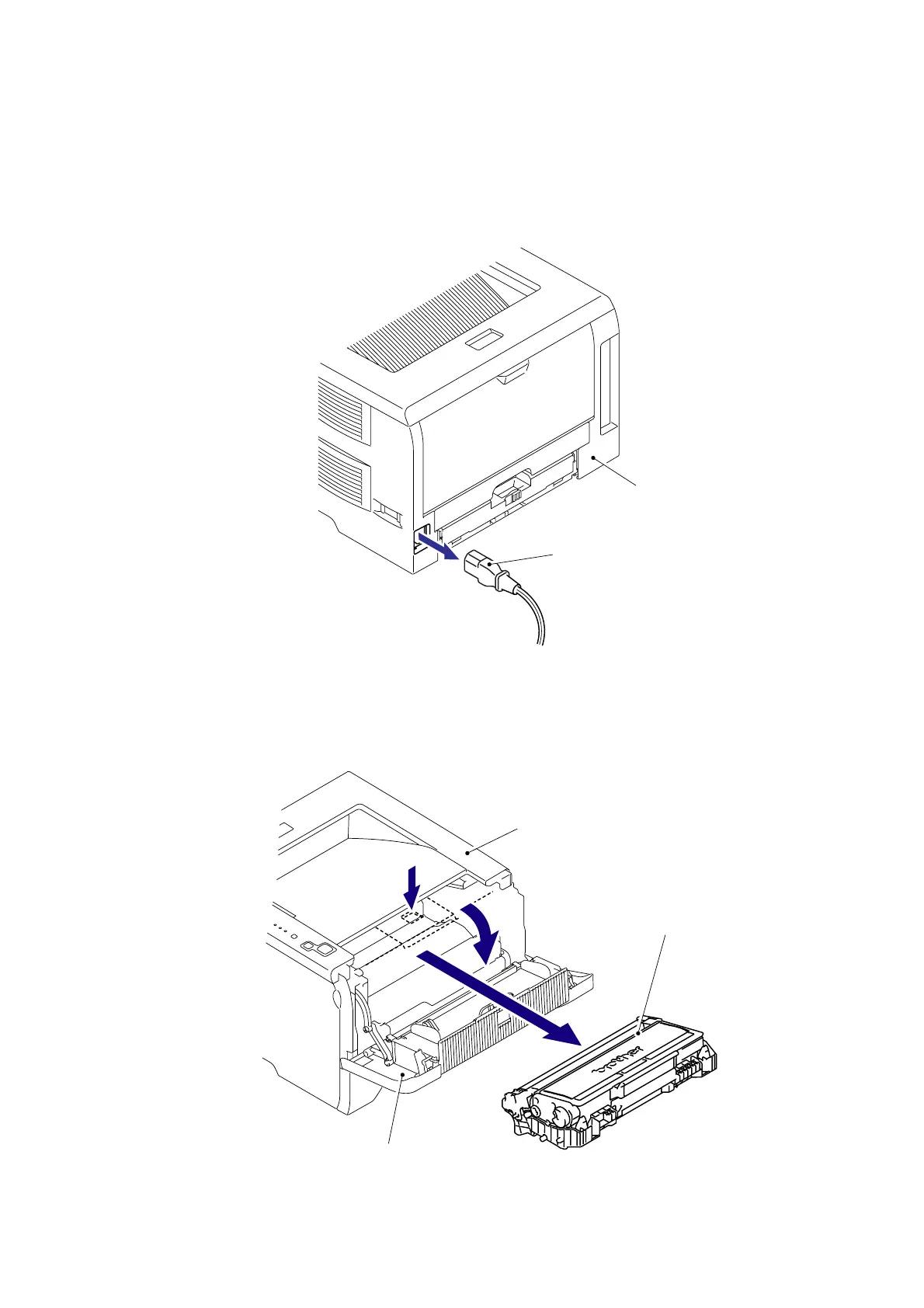

(1) Disconnect the AC cord from the Printer.
Fig. 3-19
(2) Press the front cover release button.
(3) Open the Front cover.
(4) Remove the Drum/toner ASSY.
Fig. 3-20
Printer
A
C cord
<Back side>
Front cover
Drum/toner ASSY
Printer
2
3
4
<Front side>
