CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-16
7.3 DX Feed ASSY
(1) Remove the DX feed ASSY.

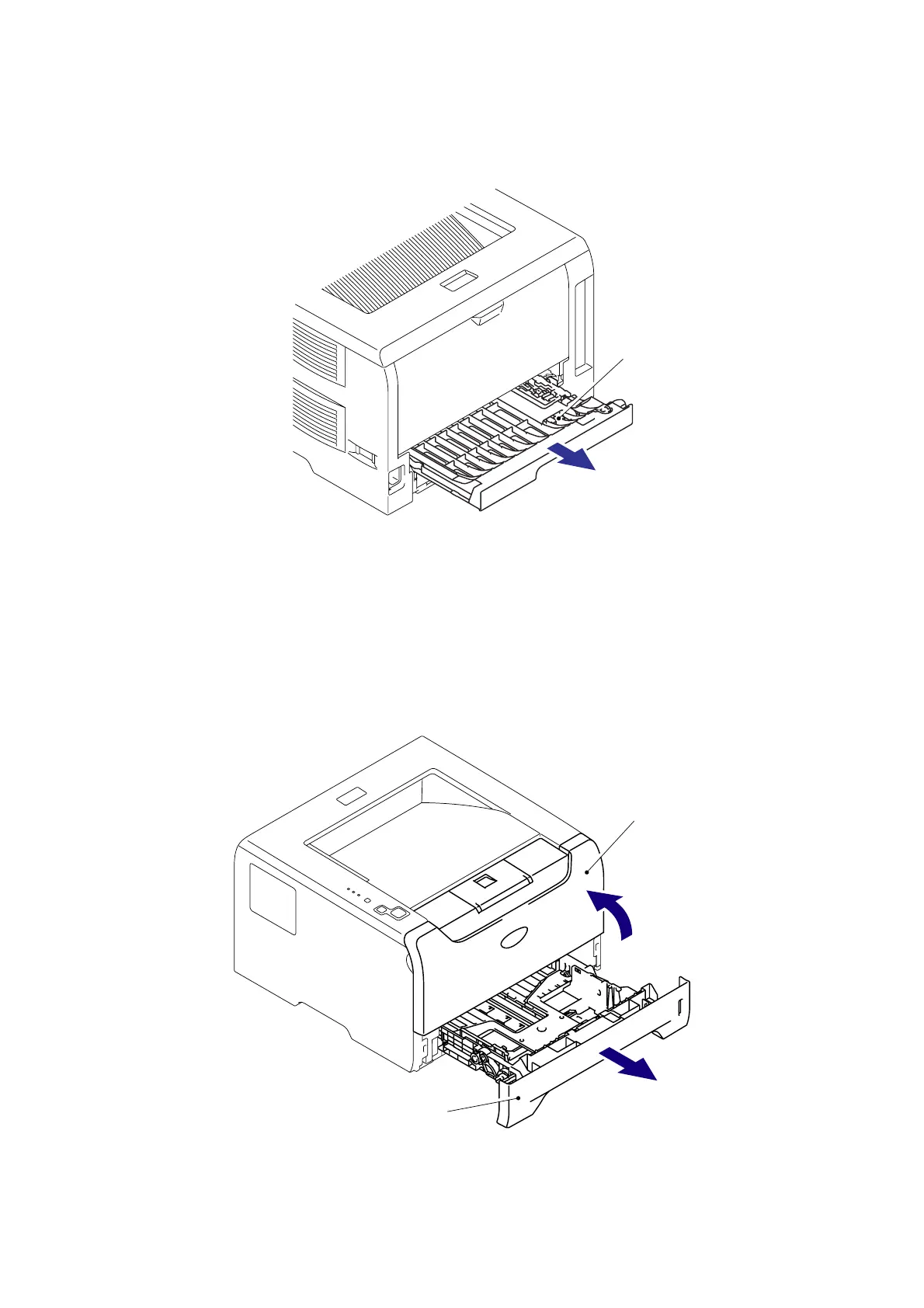

Fig. 5-4
7.4 Paper Tray
(1) Close the Front cover.
(2) Pull out the Paper tray.
(3) Remove the paper from the Paper tray.
Fig. 5-5
Front cover
Paper tray
DX feed ASSY
2
1
<Back side>
<Front side>
