HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-73
7.41 Roller Holder ASSY

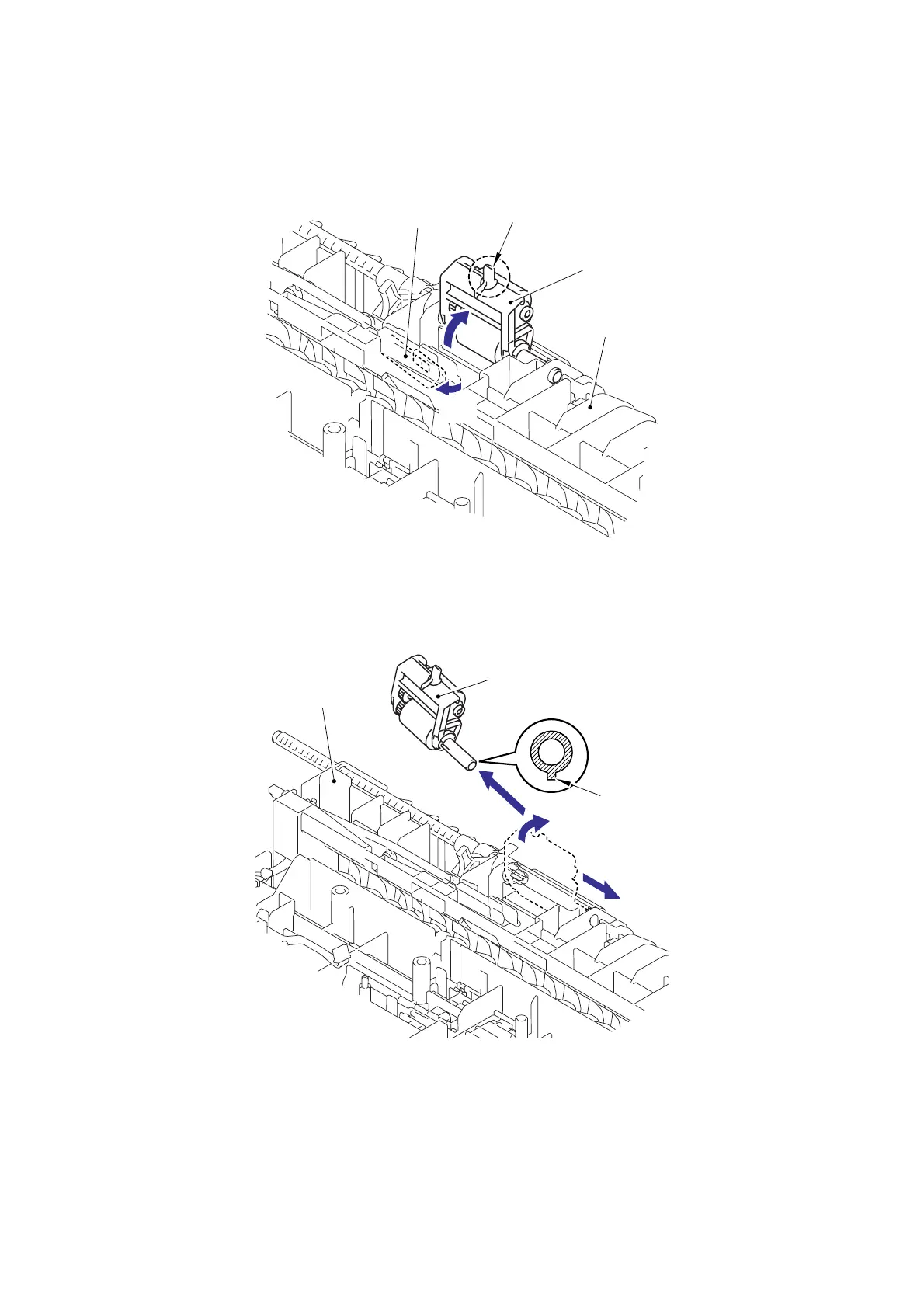

(1) Push the Lift arm to the direction of 1a and pull out the pin of the Roller holder ASSY.
Then, turn the Roller holder ASSY to the direction of 1b.
Fig. 5-118
(2) Slide the Roller holder ASSY to the direction of 2a. Then, lift up the gear side of the
Roller holder ASSY to the direction of 2b and pull it out to the direction of 2c to remove.
Fig. 5-119
Assembling Note:
When assembling the roller holder ASSY, align the section “A” on the shaft of the roller holder
ASSY with the hole on the paper feed frame.
Roller holder ASSY
Paper feed frame
Lift arm
Roller holder ASSY
Paper feed frame
2b
2c
2a
Pin
1b
1a
“A”
