CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-74

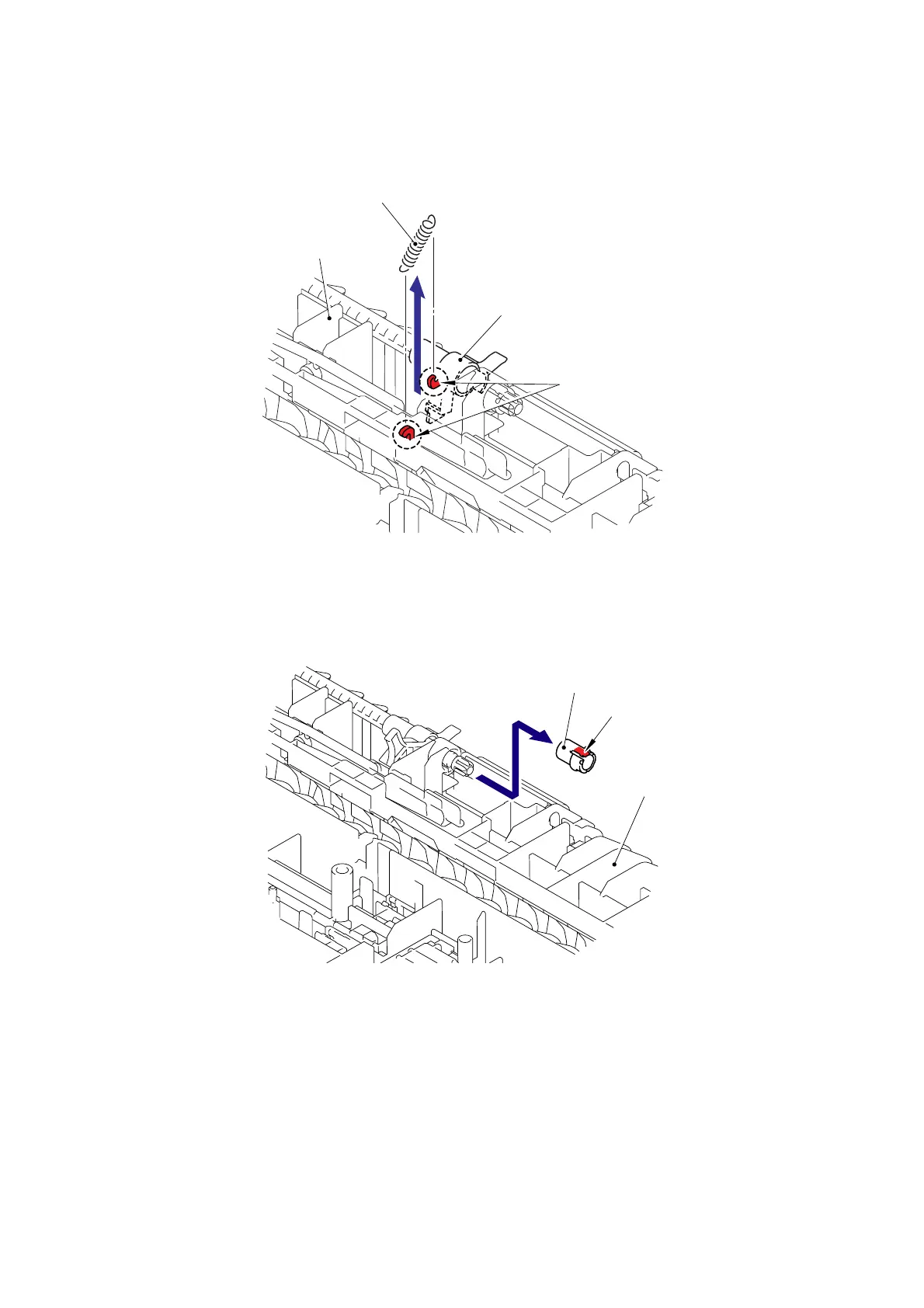

7.42 PE Actuator/Edge Actuator/Edge Actuator Spring
(1) Remove the Edge actuator spring.
Fig. 5-120
(2) Release the hook and remove the Separation R shaft bearing.
Fig. 5-121
Edge actuator
Hooks
Edge actuator spring
Paper feed frame
Separation R shaft bearing
Paper feed frame
Hook
