3.3 Paper Transfer
3.3.1 Paper supply
The feed roller picks up a few sheets or one sheet of paper from the paper tray every time it is
rotated and feeds it to the separation roller.

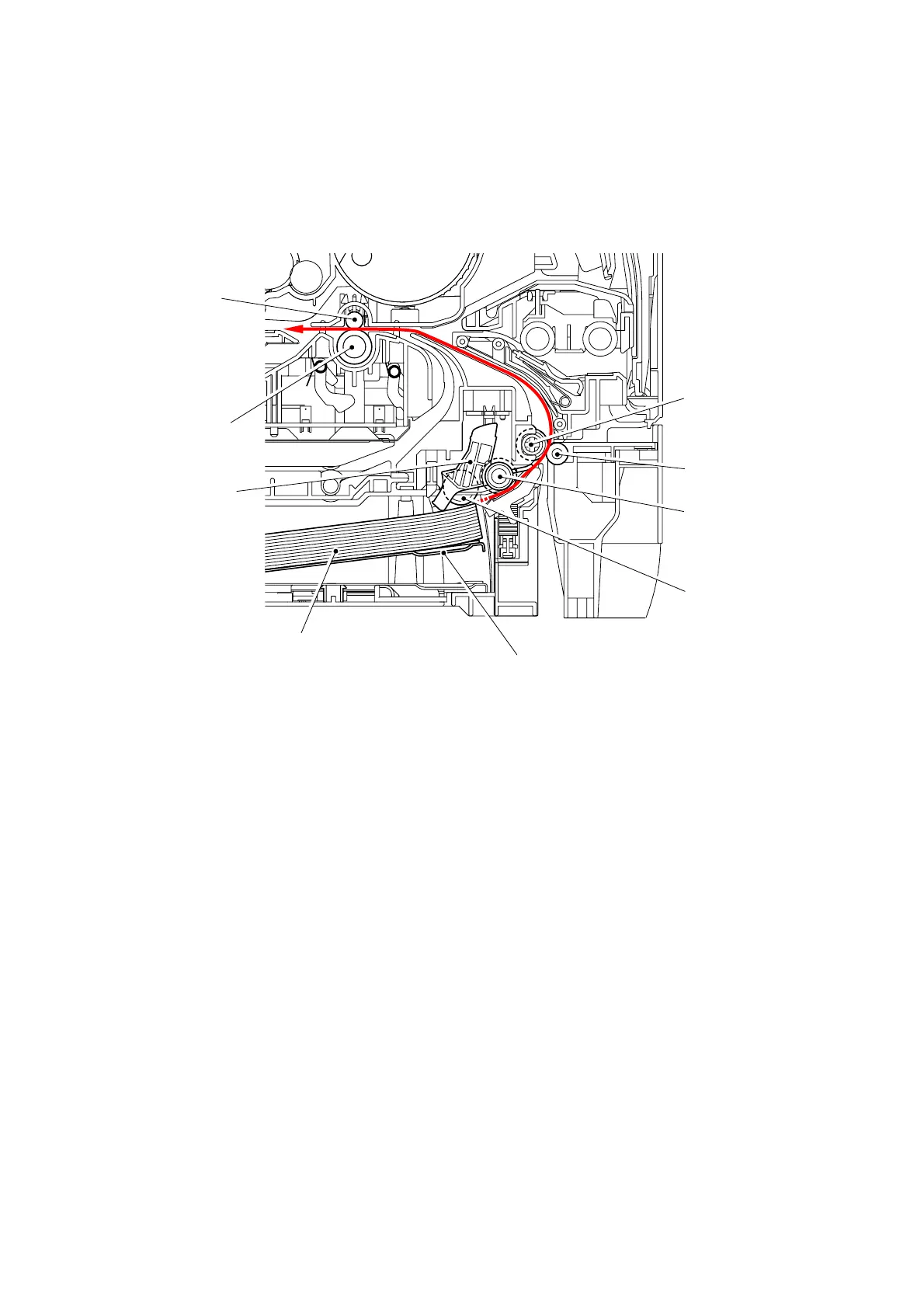

Fig. 2-6
The main motor drive is transmitted to the gears, and the gears are engaged. Then, the paper
is gripped between the separation roller and separation pad and separated into individual
sheets.
The paper drawn out of the paper tray pushes against the regist front actuator, and the paper
top position or absence of paper is detected by the actuator movement. The tail edge actuator
detects the end of the paper fed.
Feed roller TR
Separation roller
Regist roller
Pinch roller
Feed roller
PE actuator
Pressure roller
Paper
Plate
