7.44 Wireless PCB (PCB T60H929.00 ASSY 02) (For HL-5280DW)
(1) Disconnect the connector from the Wireless PCB harness.
(2) Remove the Wireless PCB (PCB T60H929.00 ASSY 02) and Wireless PCB holder from
the Frame R.

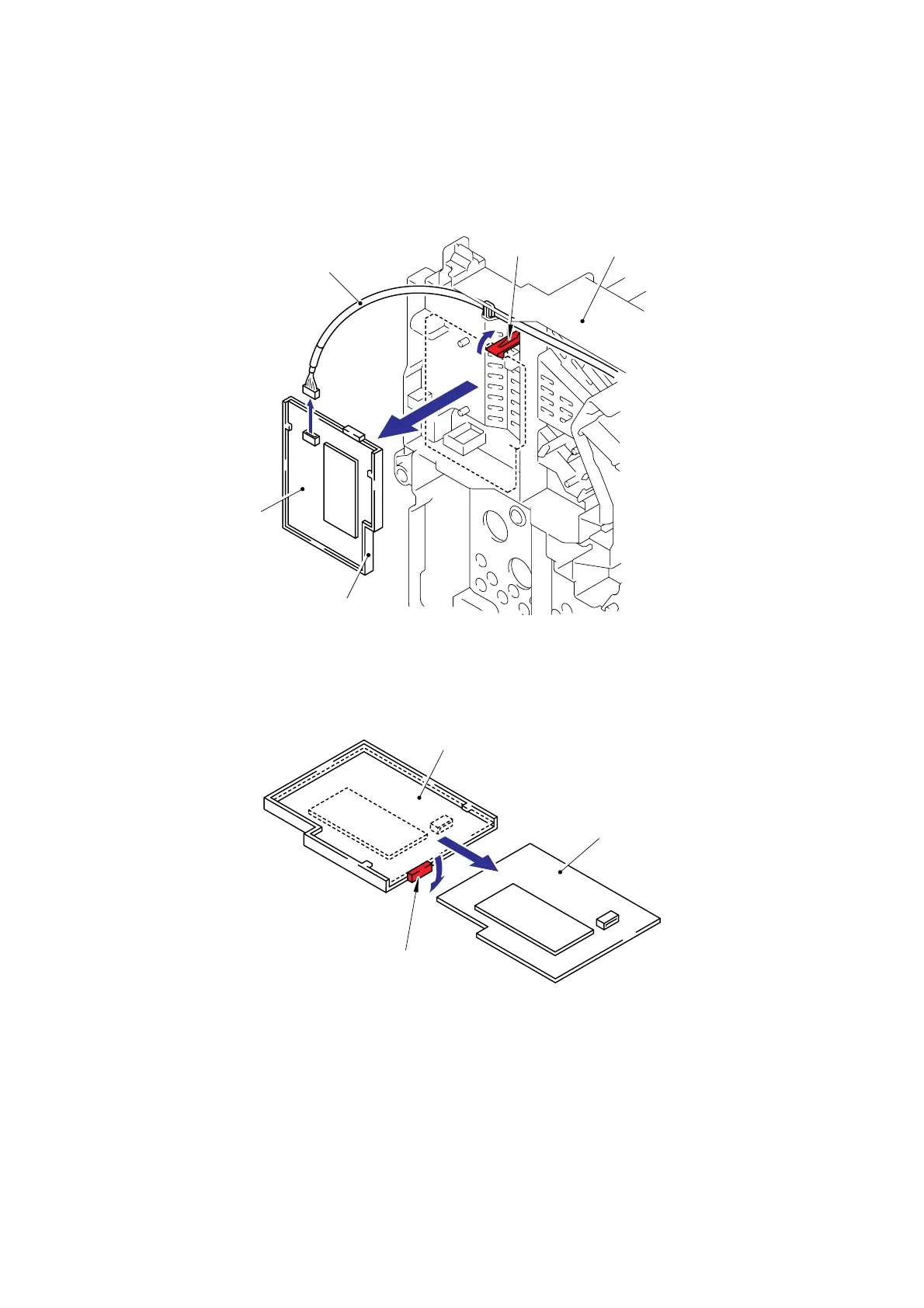

Fig. 5-125
(3) Remove the Wireless PCB (PCB T60H929.00 ASSY 02) from the Wireless PCB holder.
Fig. 5-126
Frame R
Hook
Wireless PCB harness
Wireless PCB
(PCB T60H929.00 ASSY 02)
Wireless PCB holder
Hook
Wireless PCB
(PCB T60H929.00 ASSY 02)
Wireless PCB holder
