CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-28

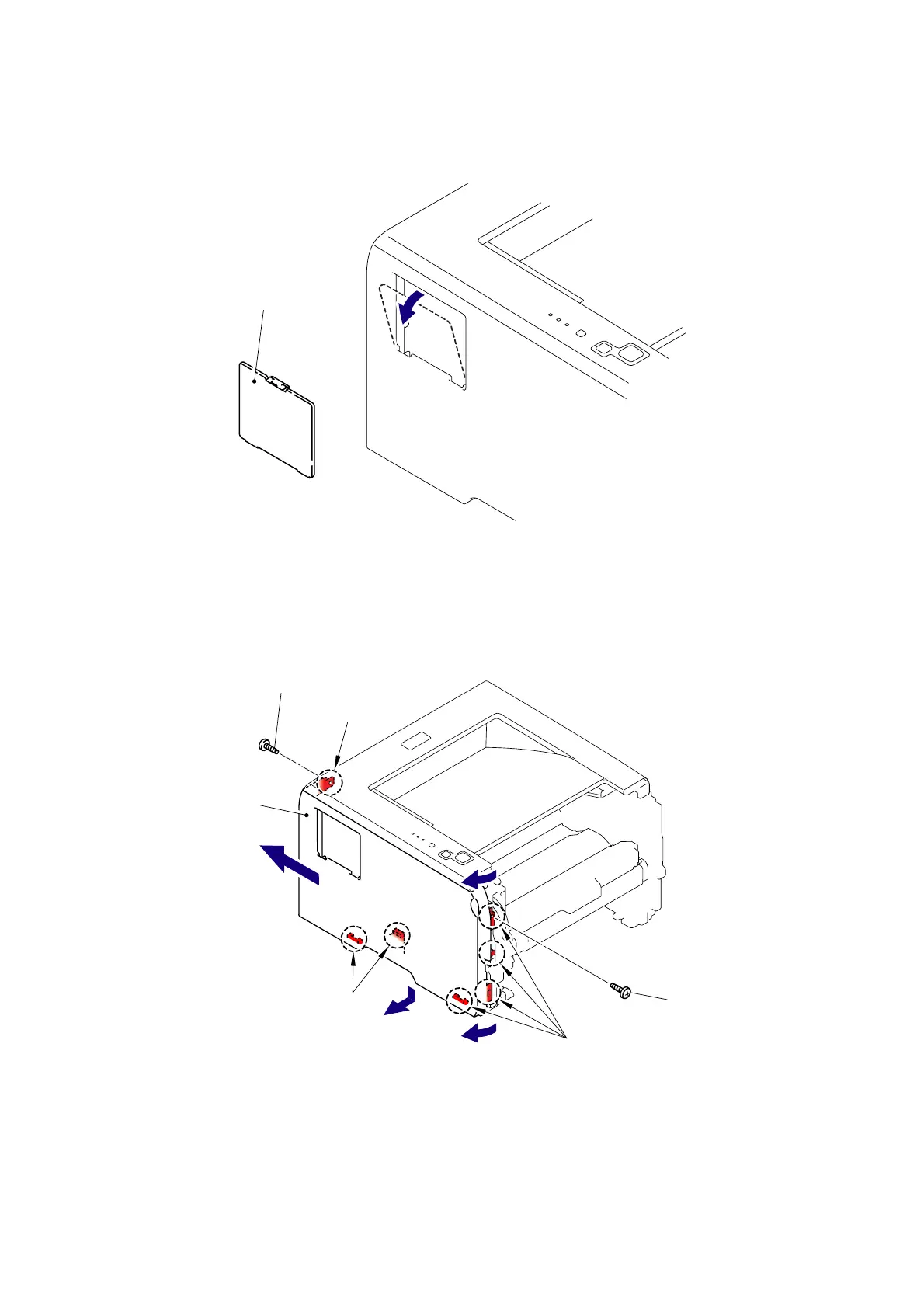

7.11 Access Cover/Side Cover L
(1) Remove the Access cover.
Fig. 5-28
(2) Remove the two bind B M4x12 Taptite screws, and then remove the Side cover L by
releasing the Hooks from 2a to 2d.
Fig. 5-29
A
ccess cove
r
2d
Taptite, bind B M4x12
Hooks
2a
Side cover L
Taptite, bind B M4x12
Hooks
Hook
1
2b
2c
<Left side>
