Brother HL-5280DW Service Manual

HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-41

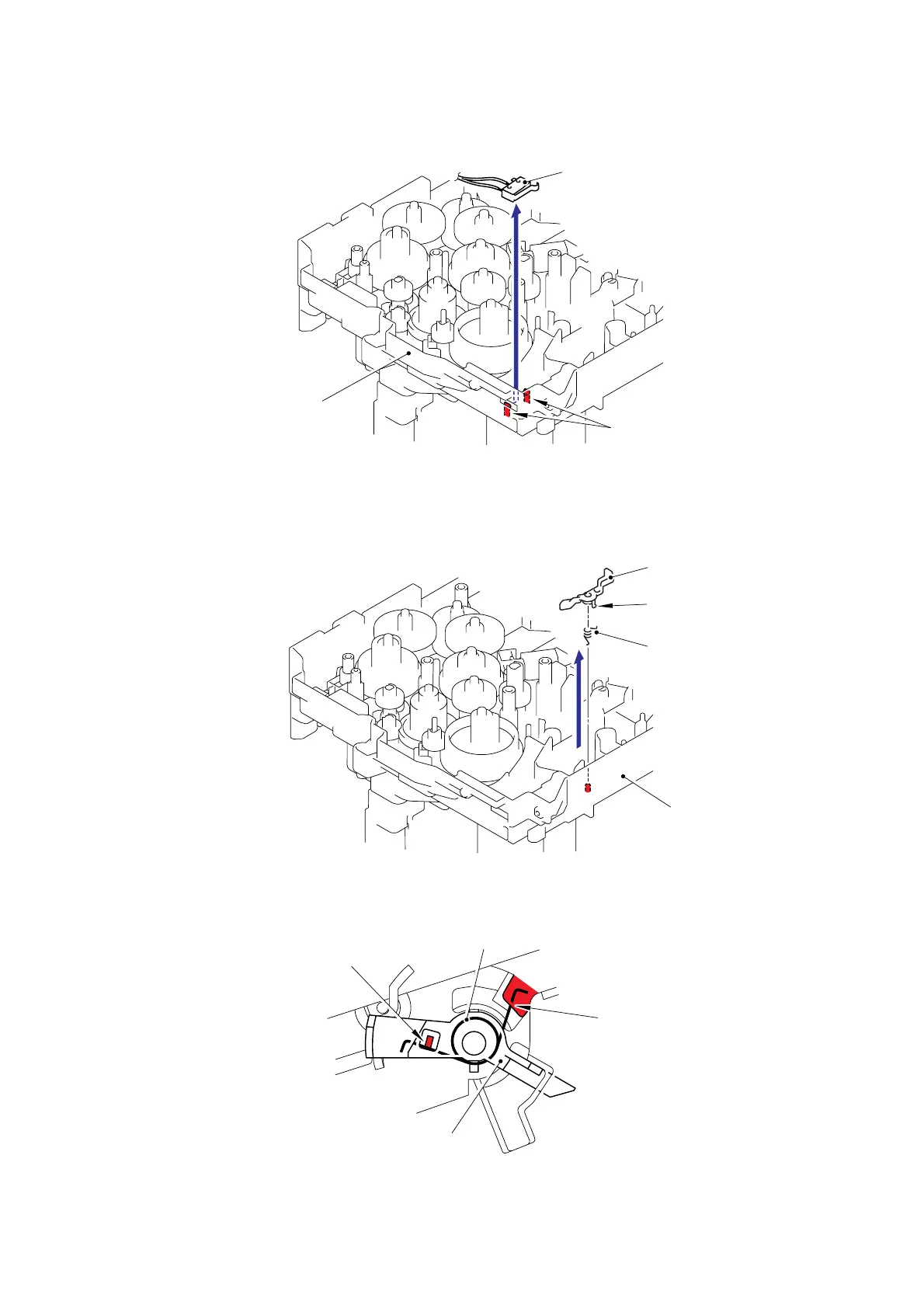

7.23 Interlock SW ASSY
(1) Remove the Interlock SW ASSY from the Frame L.
Fig. 5-54
7.24 New Toner Actuator
(1) Remove the New toner actuator and the New toner actuator spring.
Fig. 5-55
Assembling Note:
When assembling the New toner actuator spring, ensure that its direction is correct referring to
the figure below.
Fig. 5-56
Frame L
Interlock SW ASSY
Hooks
Hook
New toner actuator
Frame L
New toner actuator spring
New toner actuator spring
New toner actuator
Hook
Hook
