CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-26

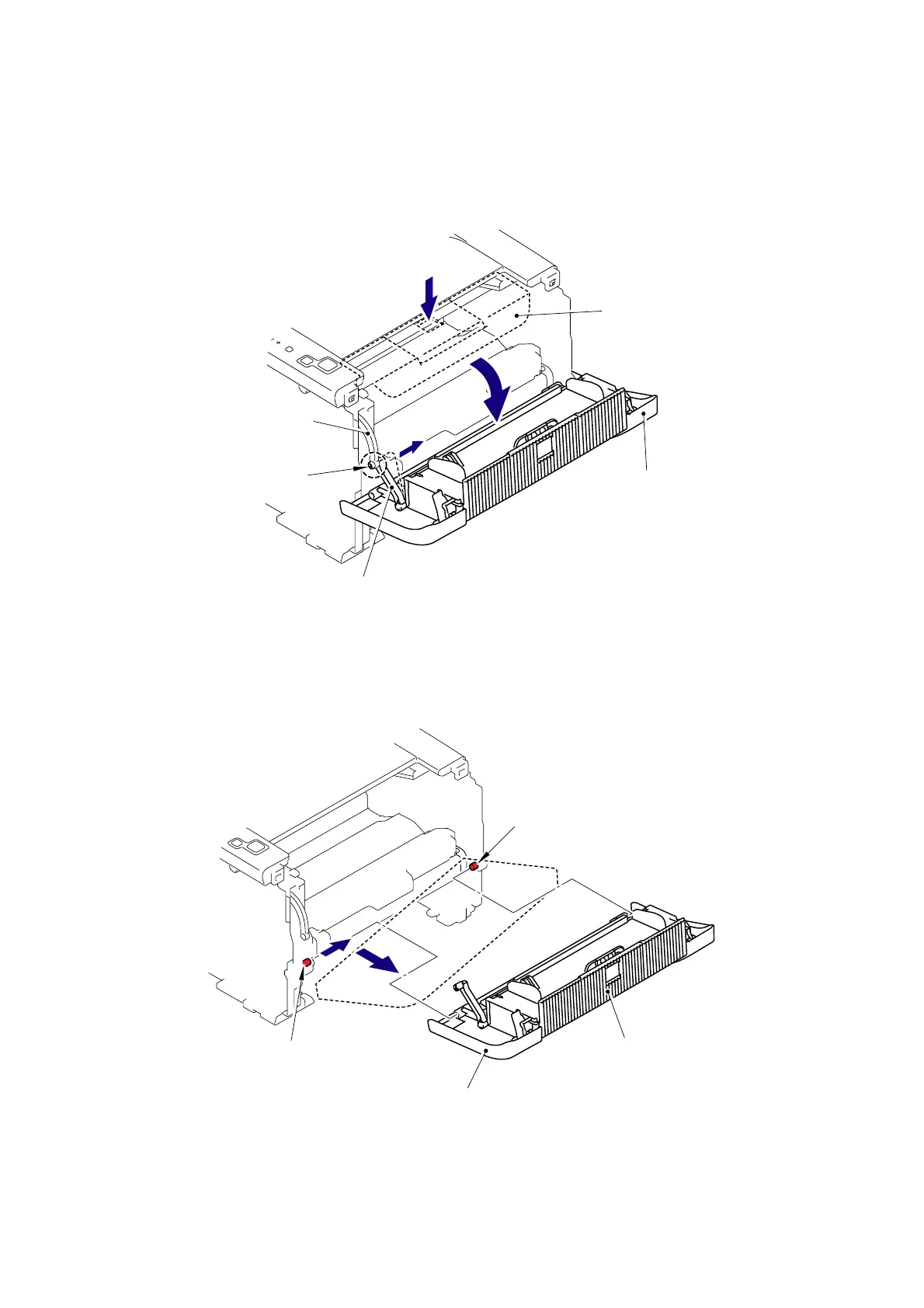

7.10 MP Tray Cover ASSY/Process Cover ASSY
(1) Push the front cover release button.
(2) Open Process cover ASSY.
(3) Release the Hook to remove the Process cover stopper.
Fig. 5-23
(4) Remove the MP tray cover ASSY and the Process cover ASSY to the direction of 4a and
4b to release the Bosses, and remove them.
Fig. 5-24
Hook
Process cover stopper
MP tray cover ASSY
Drive release link
1
Process cover ASSY
2
3
Process cover ASSY
MP tray cover ASSY
4a
4b
Boss
Boss
To Next Page
