Brother HL-5280DW - Frame L; Frame R

CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-64
7.36 Frame L
(1) Remove the six bind B M4x12 Taptite screws from the Frame L.
(2) Remove the Frame L.

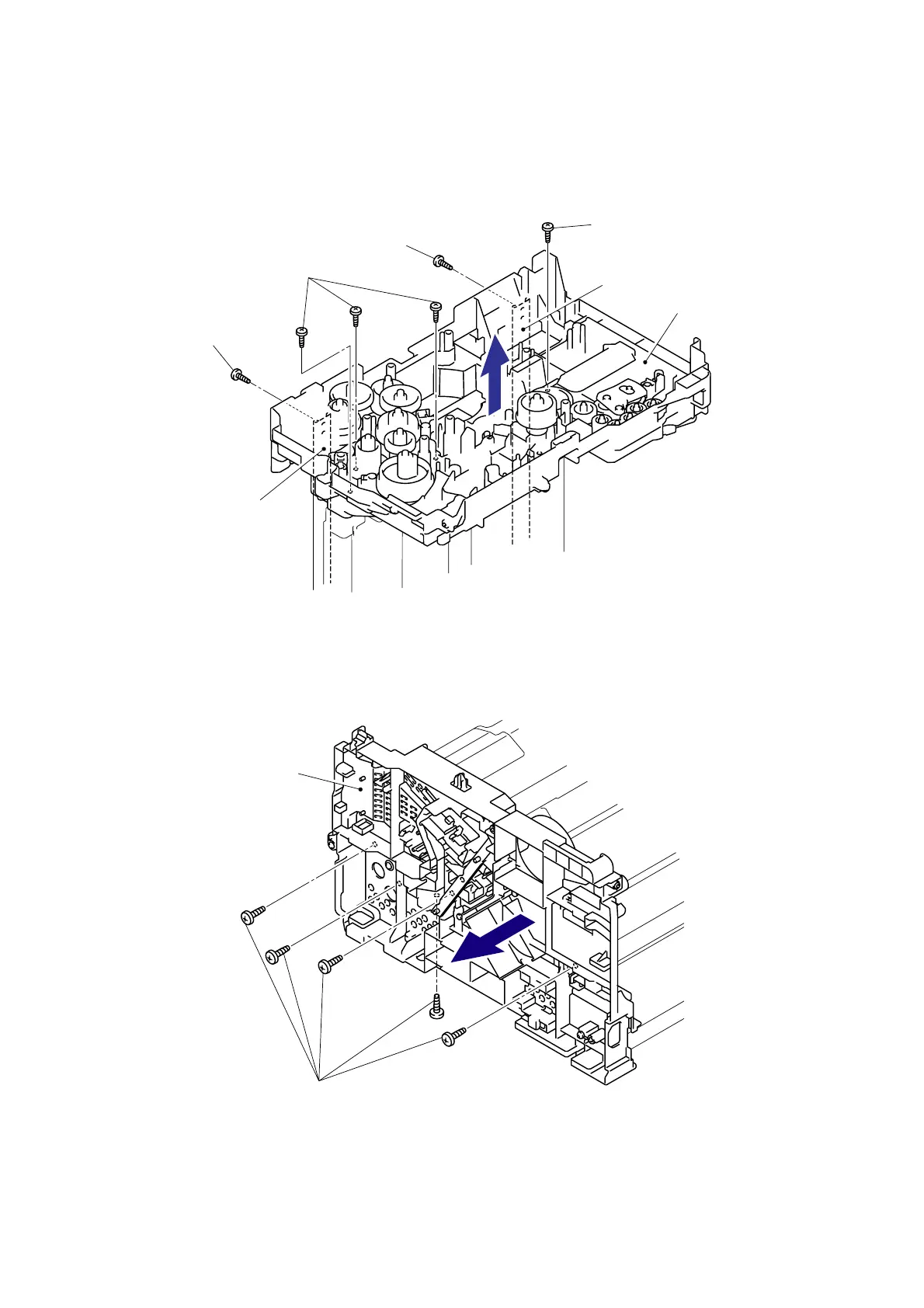

Fig. 5-100
7.37 Frame R
(1) Remove the five bind B 4x12 Taptite screws from the Frame R.
(2) Remove the Frame R.
Fig. 5-101
Taptite, bind B M4x12
Taptite, bind B M4x12
Frame L
Taptite, bind B M4x12
Taptite, bind B M4x12
Under bar
Under bar
Taptite, bind B M4x12
Frame R
<Right side>
