CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-32

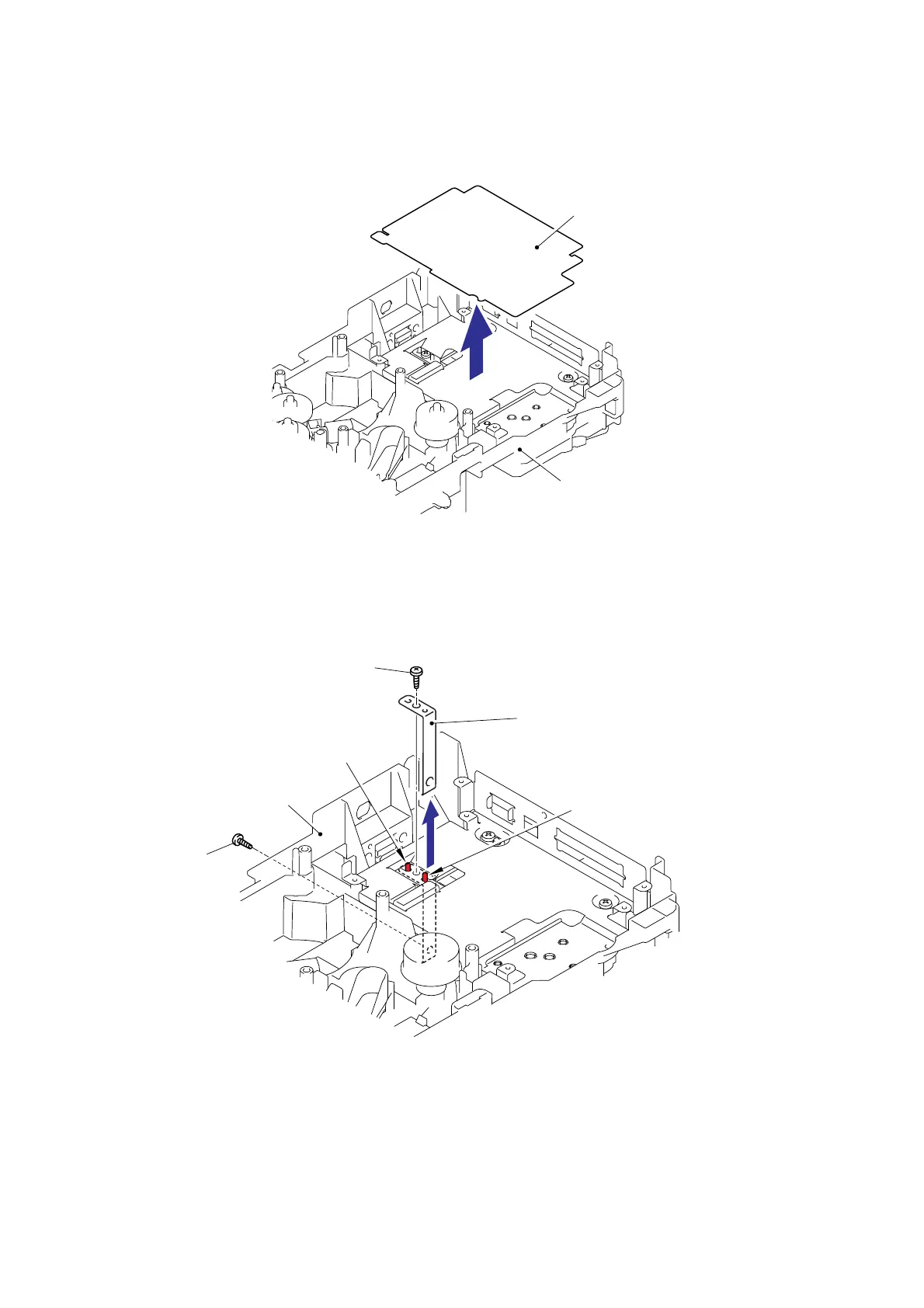

7.14 Main Shield Plate ASSY
(1) Remove the Insulation sheet.
Fig. 5-36
(2) Remove the bind B M4x12 Taptite screw.
(3) Remove the bind B M4x12 Taptite screw, and then remove the Plate.
Fig. 5-37
Assembling Note:
- When assembling the Plate, ensure to put the Plate into the base plate LV.
- When assembling the Plate, secure the screw at the Frame L side first, then the screw at the
base plate LV side.
Insulation sheet
Frame L
Plate
Frame L
Taptite, bind B M4x12
Pin
Pin
Taptite, bind B M4x12
To Next Page
